M6420204 Technofeet Kit 2
M6420204 Technofeet Kit 2M6420204 Technofeet Kit 2M6420204 Technofeet Kit 2

M6420204

Technofeet Kit 2

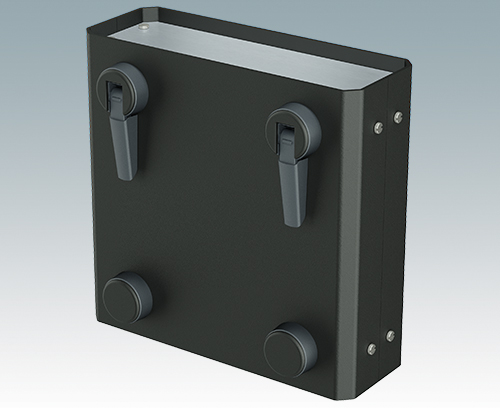

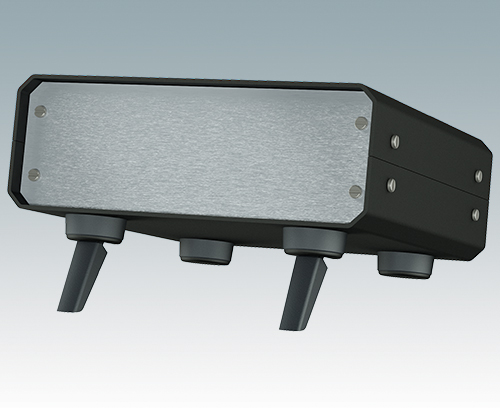

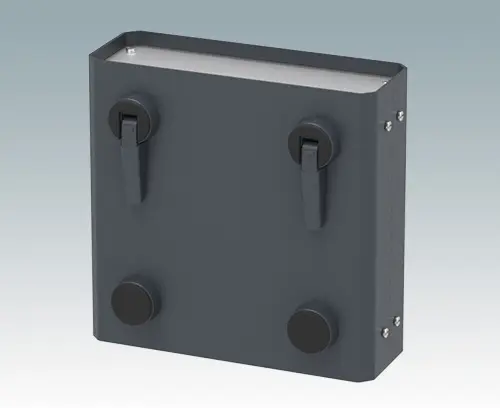

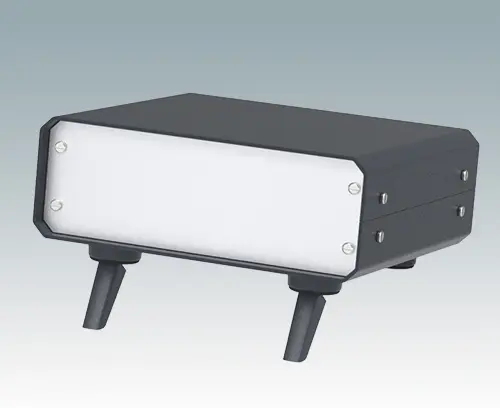

Stylish and modern case feet with tilt legs for canting. Universal design for fitting to any type of plastic or metal enclosure. Four part assembly with foot body, push-in anti-skid TPE pad, tilt leg with 120° rotation and self-tapping screw. Max. enclosure wall thickness 3 mm with screws provided (alternative screws can be supplied for larger wall thicknesses). Simply drill three holes per foot in the enclosure panel - see drawings for drilling details.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.


Version

With tilt legs

Supply

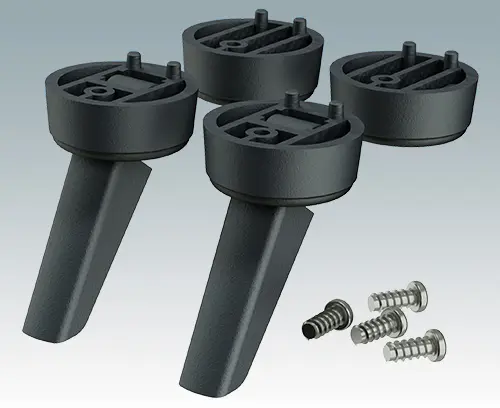

Foot moulding (x4), tilt leg (x2), black TPE non-slip insert (x4), self-tapping screw (x4).
Supplied in pack size of 4 pieces or multiples thereof


  • Technical Data
  • Drawings /
    Further Information
  • Purchasing Data
Material
Colour
anthracite RAL 7016,
black RAL 9005
Standards
REACH compliant
RoHS compliant
Length
30 mm
Width
30 mm
Height
12 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
