M6420209 Technofeet Kit 2

M6420209

Technofeet Kit 2

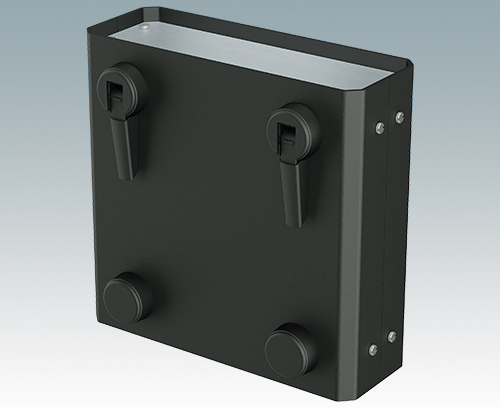

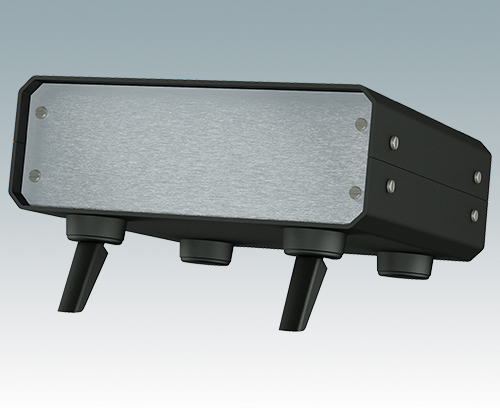

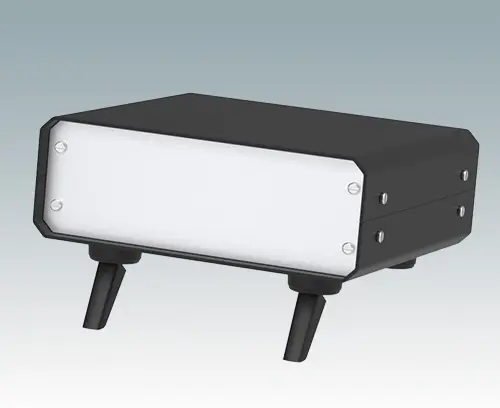

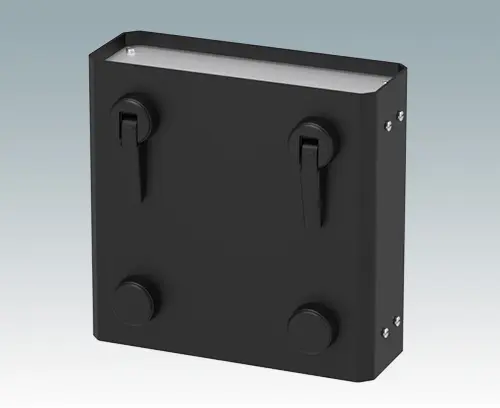

Stylish and modern case feet with tilt legs for canting. Universal design for fitting to any type of plastic or metal enclosure. Four part assembly with foot body, push-in anti-skid TPE pad, tilt leg with 120° rotation and self-tapping screw. Max. enclosure wall thickness 3 mm with screws provided (alternative screws can be supplied for larger wall thicknesses). Simply drill three holes per foot in the enclosure panel - see drawings for drilling details.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.


Version

With tilt legs

Supply

Foot moulding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Colour
Black RAL 9005
Standards
REACH compliant
RoHS compliant
Length
30 mm
Width
30 mm
Height
12 mm

Catalogue Pages

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
31 g
Customs tariff number
(METCASE product)
39269097
Country of manufacture
U.K.
