M0000701 Through Standoffs

M0000701

Through Standoffs

Through fixing standoff which is press fitted to a hole in the panel.

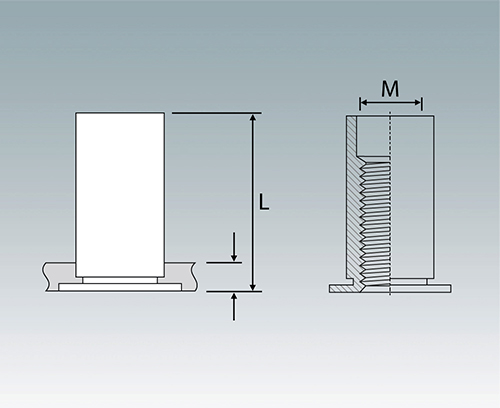

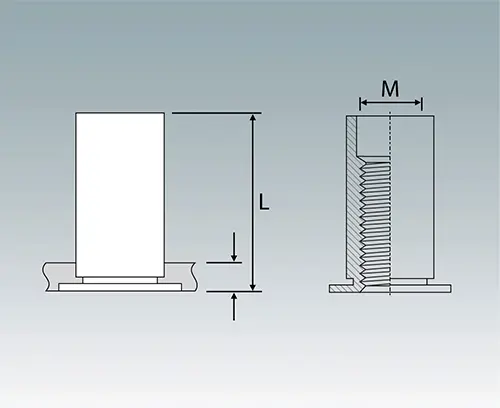

Thread Size Lengths (mm) Mounting Hole (mm)
M2 3 | 4 | 5 | 6 | 7 | 8 Ø4.2
M2.5 5 | 6 | 8 | 10 | 12 | 14 Ø4.2
M3 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 Ø4.2
M4 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 Ø7.2
M5 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 Ø7.2

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Standards
REACH compliant
RoHS compliant

Catalogue Pages

Weight/1 part
1 g
