19" front panels 1U, 2U, 3U, 4U, 6U
For fitting in 19" racksFor mounting in 19" cases19" front panels 1U, 2U, 3U, 4U, 6U
For fitting in 19" racks
For mounting in 19" cases

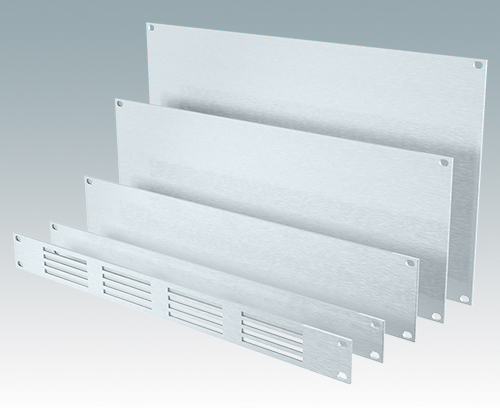

Standard 19" front panels in sizes from 1U to 6U

19" Front Panels

  • 19" standard front panels in 10.5" and 19" widths
  • Manufactured in 3 mm anodised aluminium
  • Heights from 1U to 6U (other sizes to order)
  • Conform to DIN 41494 and IEC 297-1

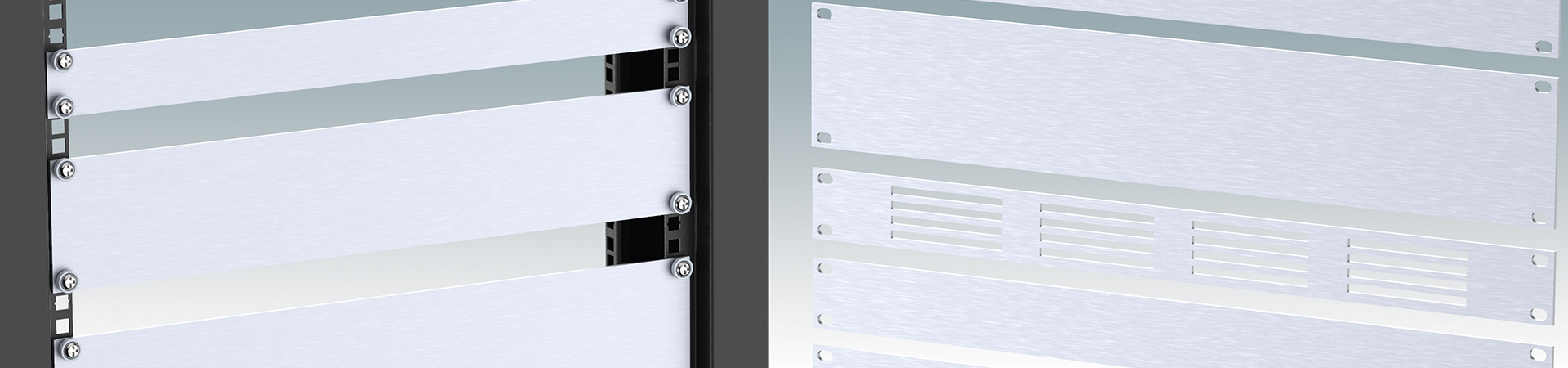

  • Ventilated 1U version
  • Punching and digital printing services available.

Order your own fully customised version learn more here >>

Applications

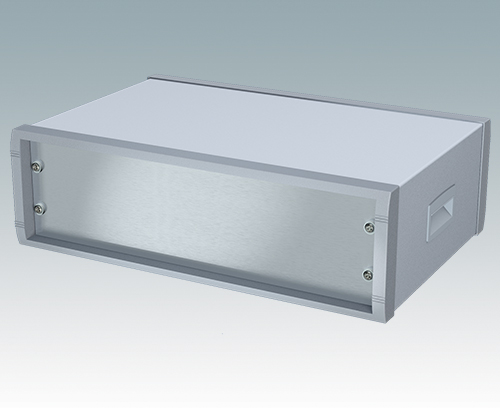

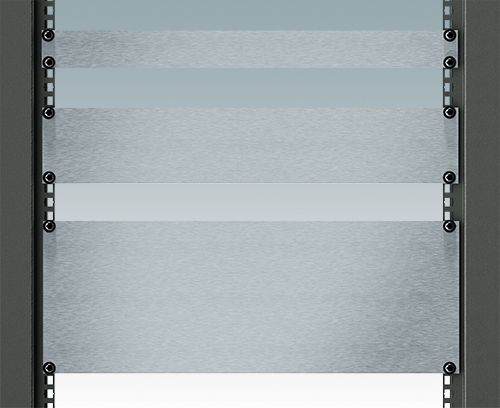

Standard front panels for mounting in 19 inch racks and desktop enclosures. Suitable for mounting controls, displays and connectors, or as blanking panels between rack mounted equipment. The ventilated 1U panel aids rack cooling.


  • Browse Full List
  • Catalogue Documents
NEW PRODUCT
View

M5900016  Add to my list
19" mounting kit

black RAL 9005

M6000035  Add to my list
19" mounting kit

light grey RAL 7035

M6010001  Add to my list
Front panel 3Ux10.5"

Aluminium
matt anodised
269.2x3x132.5mm

M6019001  Add to my list

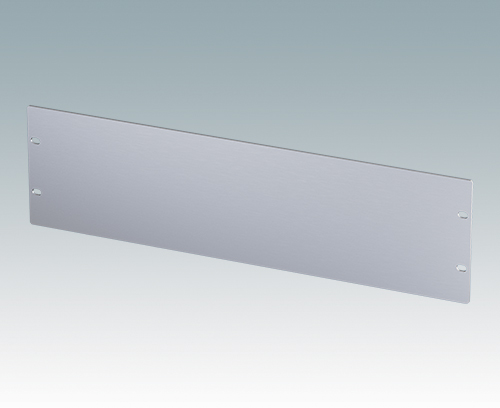

Front panel 3Ux19"

Aluminium
matt anodised
482.6x3x132.5mm

M6019010  Add to my list

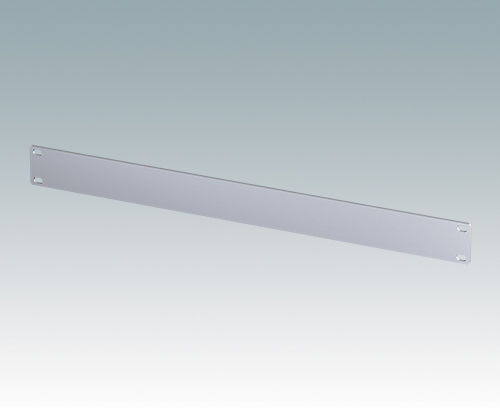

Front panel 1Ux19"

Aluminium
matt anodised
482.6x3x43.6mm

M6019011  Add to my list
Front panel 1Ux19" vented

Aluminium
matt anodised
482.6x3x43.6mm

M6019020  Add to my list

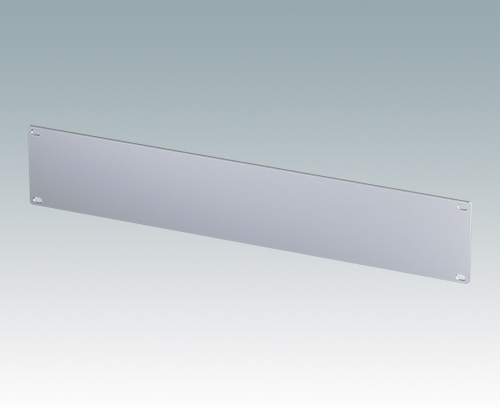

Front panel 2Ux19"

Aluminium
matt anodised
482.6x3x88.1mm

M6019040  Add to my list
Front panel 4Ux19"

Aluminium
matt anodised
482.6x3x177mm

M6019060  Add to my list
Front panel 6Ux19"

Aluminium
matt anodised
482.6x3x266mm

M6019020

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1

Supply
Panel

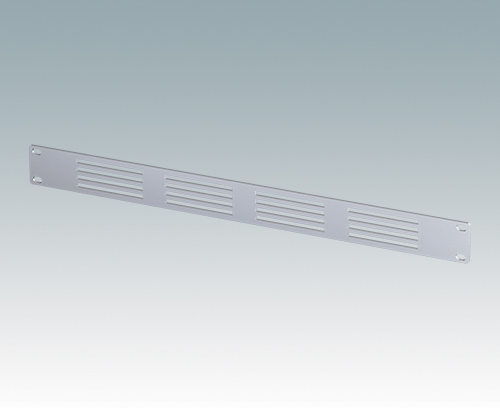

M6019011

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Version
With ventilation slots

Supply
Panel

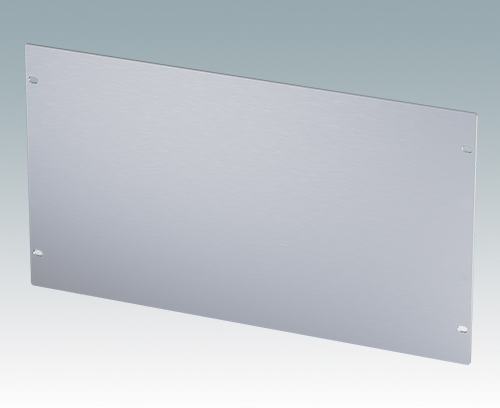

M6019060

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply
Panel

M6000035

Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply
M6 caged nuts (x4), M6 x 16 mm screw (x4) and light grey plastic cup washer (x4).

M5900016

Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply
M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).

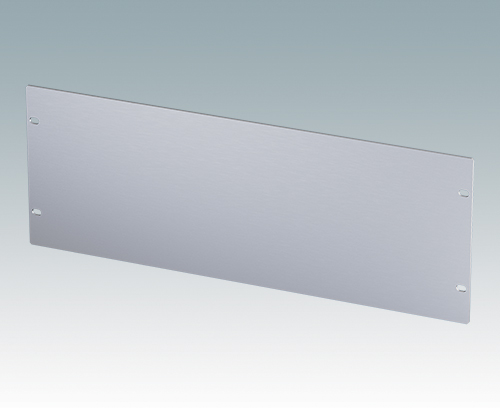

M6019040

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply
Panel

M6019010

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply
Panel

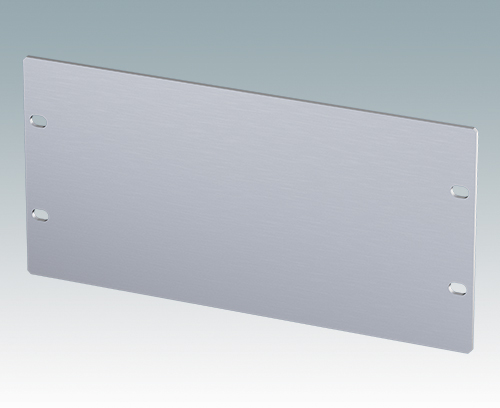

M6010001

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply
Front panel

M6019001

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply
Front panel
