M7000724

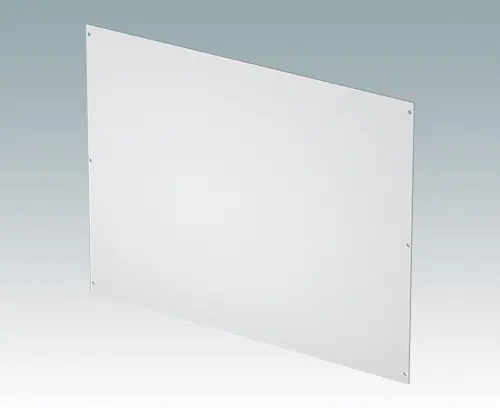

Front Panel P – C336

Painted front panel for enclosure version C336.

Supply

Front panel (fixings supplied with the cases).

2D PDF Drawing
3D/2D download

Generate Your PDF Datasheet for M7000724

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

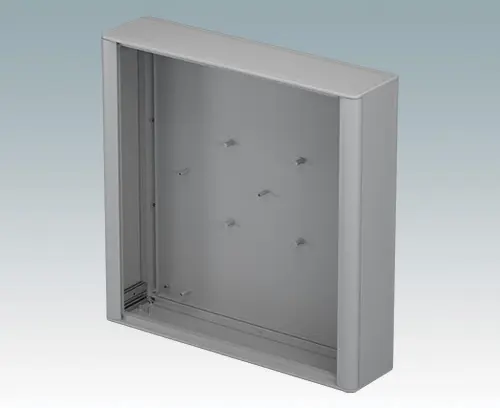

M7036402 TECHNOMET-CONTROL C336V

M7036402

TECHNOMET-CONTROL C336V

Modern and highly attractive aluminium instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: TP700, MTP700, TP900, MTP1000
TURCK: TX707, TX807, TX710, TX810
BEIJER: X2 base 5/7/10 v2, X2 Pro 4/7/10

Version With VESA mount

Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x16), M4 x 16 mm (x8). Supplied assembled.

M7036402

TECHNOMET-CONTROL C336V
product added to your basket

Traffic grey A RAL 7042
360x360x95mm

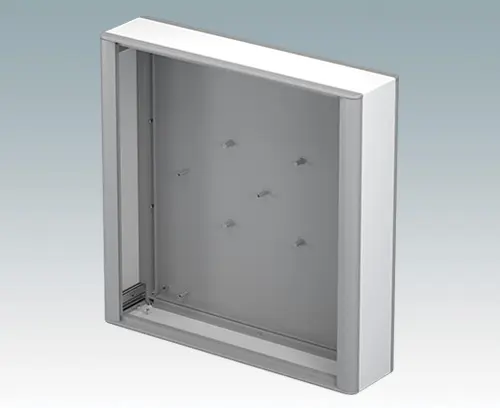

M7036406 TECHNOMET-CONTROL C336V

M7036406

TECHNOMET-CONTROL C336V

Modern and highly attractive aluminium instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: TP700, MTP700, TP900, MTP1000
TURCK: TX707, TX807, TX710, TX810
BEIJER: X2 base 5/7/10 v2, X2 Pro 4/7/10

Version With VESA mount

Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x16), M4 x 16 mm (x8). Supplied assembled.

M7036406

TECHNOMET-CONTROL C336V
product added to your basket

Traffic white/traffic grey A RAL 9016/7042
360x360x95mm
Material

Colour
Traffic white RAL 9016
Standards
REACH compliant
RoHS compliant
Width
332 mm
Height
2 mm
Depth
350.8 mm

Catalogue Pages

Drawings

3D Models

Weight/1 part
0.6 kg
Customs tariff number
(METCASE product)
76061292
Country of manufacture
UK

View our customising options and don't forget to request a quotation!
