M7023002 TECHNOMET-CONTROL C218V

M7023002

TECHNOMET-CONTROL C218V

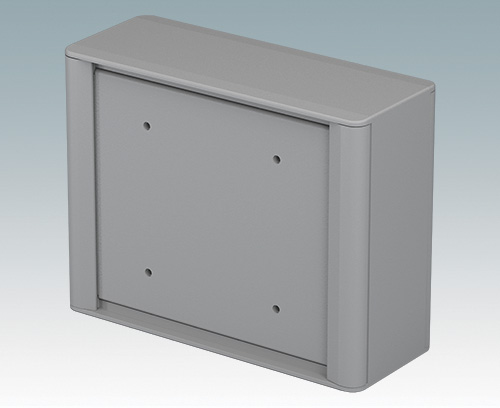

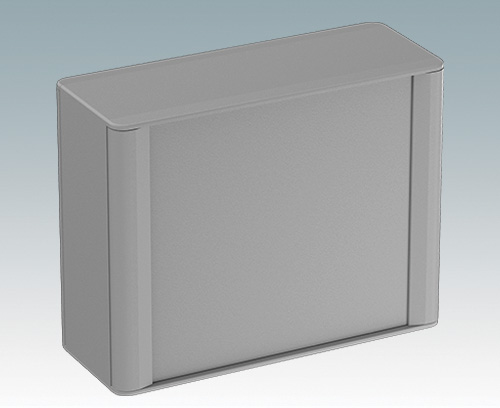

Modern and highly attractive aluminium instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: KTP400, MTP400
TURCK: TX705, TX805
BEIJER: X2 base 5 v2, X2 Pro 4

Version

With VESA mount

Supply

Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

  • Components/Accessories

Accessory

M7000700 Front Panel A – C218

M7000700

Front Panel A – C218 Anodised front panel for enclosure version C218.

Supply Front panel (fixings supplied with the cases).

Close

M7000700

Front Panel A – C218
product added to your basket
Aluminium
Matt anodised
202x2x170.8mm
M7000720 Front Panel P – C218

M7000720

Front Panel P – C218 Painted front panel for enclosure version C218.

Supply Front panel (fixings supplied with the cases).

Close

M7000720

Front Panel P – C218
product added to your basket
Aluminium
Traffic White RAL 9016
202x2x170.8mm
M7000740 Front Panel P – C218

M7000740

Front Panel P – C218 Painted front panel for enclosure version C218.

Supply Front panel (fixings supplied with the cases).

Close

M7000740

Front Panel P – C218
product added to your basket
Aluminium
Traffic Grey A RAL 7042
202x2x170.8mm
M7000900 Wall Mounting Kit S

M7000900

Wall Mounting Kit S Wall mounting kit for case version C218.

Supply Wall plate (x1), case bracket (x2), M4 x 6 mm (x4), M4 x 25 mm (x2)

Close

M7000900

Wall Mounting Kit S
product added to your basket
Mild Steel CR4
Traffic White RAL 9016
157x145x16mm
M7000920 Pole Mount Bracket

M7000920

Pole Mount Bracket Pole mounting bracket for fixing the enclosure to a pole ⌀50 mm or larger (mounting straps not included). Fits to the VESA mounting holes on all enclosure versions.

Supply Bracket (x1), M4 x 6 mm (x4)

Close

M7000920

Pole Mount Bracket
product added to your basket
Mild Steel CR4
Traffic White RAL 9016
120x125x45mm
M7000940 Internal Mounting Plate Kit – C218

M7000940

Internal Mounting Plate Kit – C218 Internal mounting plate kit for enclosure size C218. For mounting heavy PCB assemblies, power supplies etc. Fits to the M3 mounting pillars in the rear panel.

Supply Mounting plate, M3 x 8 (x4)

Close

M7000940

Internal Mounting Plate Kit – C218
product added to your basket
Aluminium
Natural finish
181x155x1.5mm
