METTEC 19” rack mount enclosures for easy handling

Mettec 19" Enclosures

May 2010

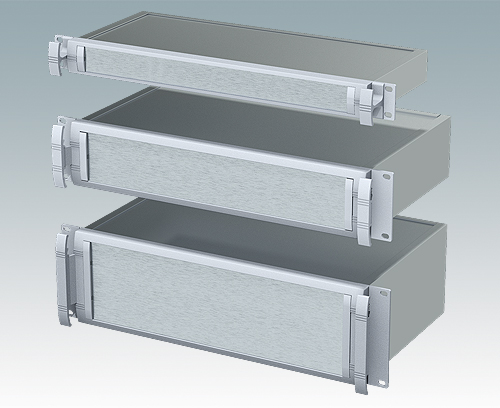

Robust rack enclosures 1U, 2U and 3U

METCASE the metal enclosures division of OKW has introduced the METTEC 19” rack cases. These versatile enclosures feature an attractive front bezel which incorporates unique ‘comfort handles’ for easy handling.

Typical applications will include networking and communications equipment, industrial computers, sound and studio systems, laboratory instruments and industrial control systems etc.

This exclusive and robust range of aluminium 19” rack mount enclosures conforms to DIN 41594 and IEC standards and is available in three standard heights: 1U, 2U and 3U, and depths of 167, 267 and 367 mm.

The front bezel is painted in light grey, RAL 7035 and the case body is pre-treated with an anticorrosive finish. Internal guide rails are included in the side extrusions for mounting PCB assemblies and chassis plates.

Uniquely, the anodised aluminium front panel can be removed while the case is still in the rack. The front panel kit includes two ABS cover trims, which hide the fixing screws. The front panel is also recessed for location of a membrane keypad. Other accessories include chassis plates and a rack mounting kit.

METCASE offers a full customising service on these aluminium enclosures with bespoke sizes, CNC punching, milling and drilling, silk-screen printing and much more, providing fully finished enclosures ready for fitting the electronic components.

View METTEC 19" range >>
