Bestselling 19” rack cases now in 5U as standard

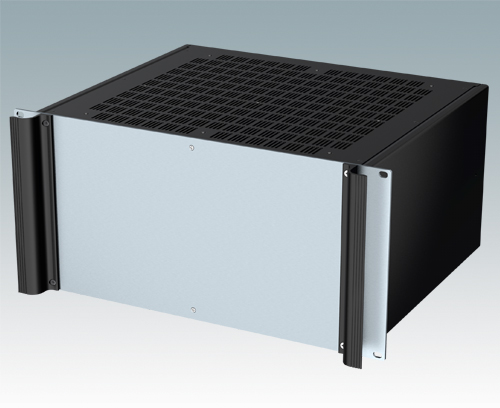

Combimet 19" rack cases 5U

August 2017

COMBIMET is now available in all sizes from 1U to 6U

METCASE’s COMBIMET 19” rack mount enclosures are available in all sizes from 1U to 6U — now including 5U as standard. Previously 5U was available only as a custom size.

Versatile COMBIMET is METCASE’S bestselling rack mount enclosure for networking and communications, industrial computers, sound and studio systems and laboratory instrumentation.

These smart, modern aluminium enclosures offers complete access to the PCBs: the top, base and rear panels are removable. The top and base can be specified as either vented or unvented. An open top version is also available.

Features include ergonomic front panel handles and mounting holes for PCBs and chassis. All case parts feature an M4 earth stud for electrical continuity.

COMBIMET is offered in two standard colours light grey (RAL 7035) and black (RAL 9005), and two depths 265 mm and 365 mm (custom depths can be supplied on demand). Enclosures are supplied fully assembled.

Accessories include a PCB mounting kit, internal mounting plates for fitting PCBs and assemblies, and a 19” mounting kit for fitting the case in a rack.

Customising options include custom sizes and front panels; CNC punching, folding, milling, drilling and tapping; fixings and inserts; painting and finishing, digital printing of legends and logos; bespoke enclosures.

View COMBIMET 19" range >>
