M0000802 Rectanglular Cutout

M0000802

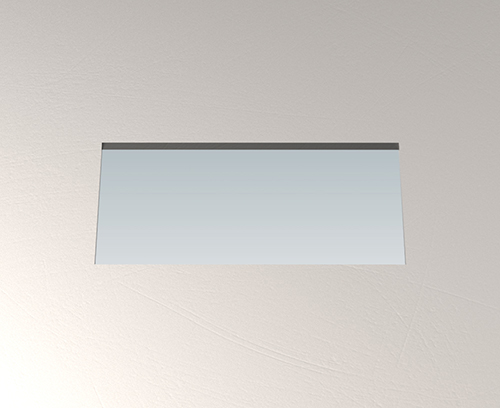

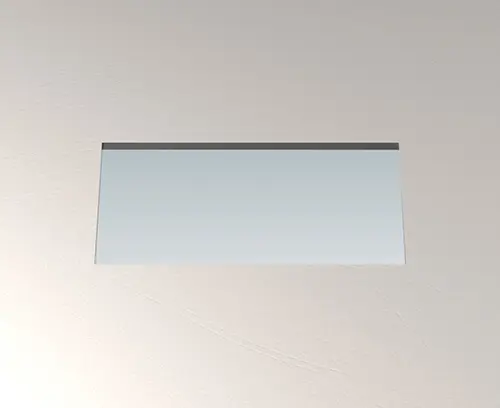

Rectanglular Cutout

Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.

Your size not here? Rectangular holes can also be created by using a smaller punch in steps to create a larger hole. Custom punch sizes can also be obtained to suit your specific requirements. Talk to our sales team for more information.

Dim A (mm) Dim B (mm)
3 1
4.2 2.1
4.75 2.4 | 2.41
4.8 2.5
5 2
5.08 2.9
5.3 1.7
6 2 | 2.3 | 2.8 | 3
6.35 0.76 | 1.4 | 3.43
6.4 3.2
7.1 4.5
7.2 4.5
7.25 2
8 4 | 4.8 | 6
8.25 1.8
9 1.7 | 2 | 6.5
10 2 | 3.5 | 4 | 5 | 6.4 | 9 | 16.2
10.4 2.5
10.66 8.13
10.8 3
11 3
11.8 2
12 1.6 | 9.6
12.1 10.9
12.5 8.5
12.7 6.35
13.2 4.8 | 6.2
13.3 9
14.3 13.2
14.5 2
15 1.5 | 2.2 | 4 | 5 | 5.5
15.24 4.04
15.3 12.7
16 6.4 | 6.47 | 13.5
16.15 6.5
16.2 10
16.32 14.03
16.6 13.1
17.5 15.9
18 1.2 | 6 | 14.6
18.7 16.7
19.02 4.25
19.05 2.29
19.5 13
20 2 | 2.5 | 3 | 10
20.8 8.64
21 3
21.3 12.5
22.5 14.7
22.9 7.4
24 6
25 1, 4
25.4 5 | 7.12 | 14.1
26 2
27.7 11.5
28.6 22.25
29 11 | 12
29.38 22
30 6
32 20
33 31
34.4 18.3
35 6
36 8
37.1 18.28
40 8 | 10
43 13
43.5 14
43.8 8
44 5
45 10
46.5 12
47 16
49 11
50 2.5 | 5 | 12 | 12.3 | 25
50.8 6.35
55 13.6
60 6 | 9 | 12.8
66 35
70 4,20
74.6 19.05
75 5
80 8.3
100 5
106.75 36.25

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Weight/1 part
1 g
