CNC punching and folding

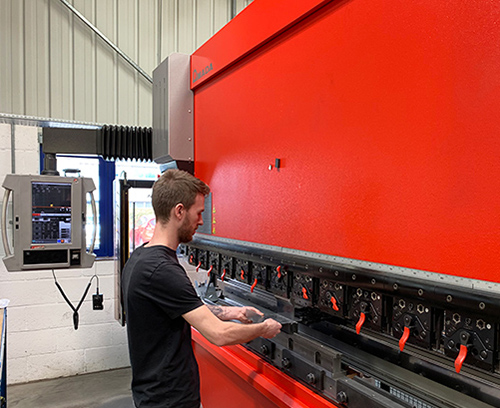

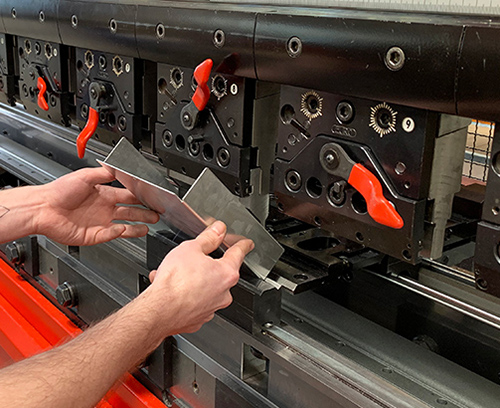

CNC Punching and Folding

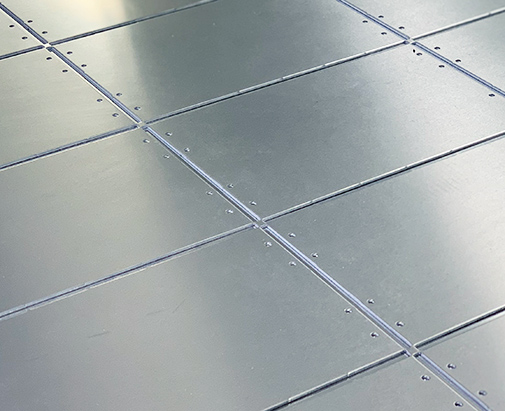

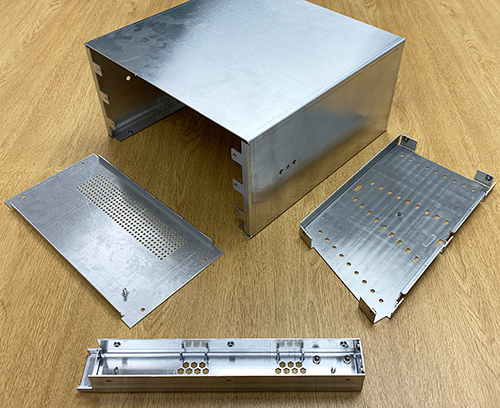

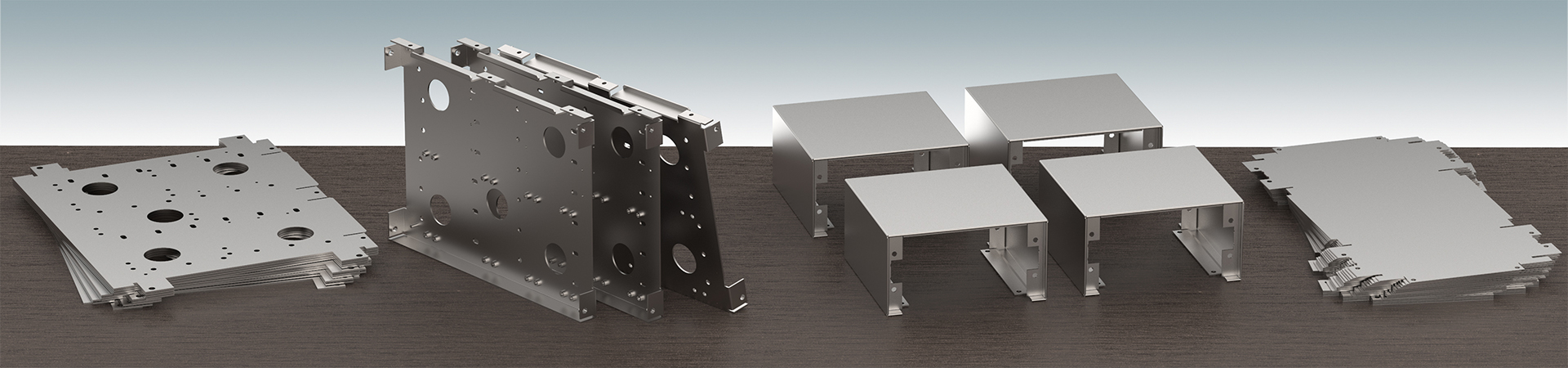

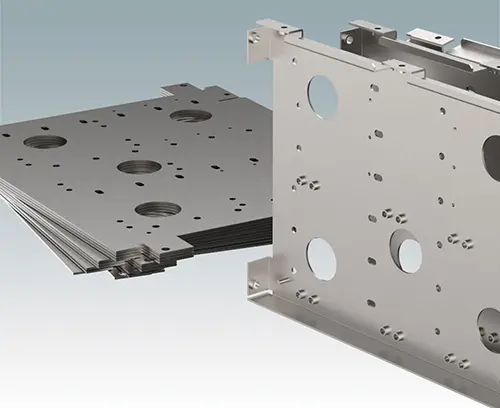

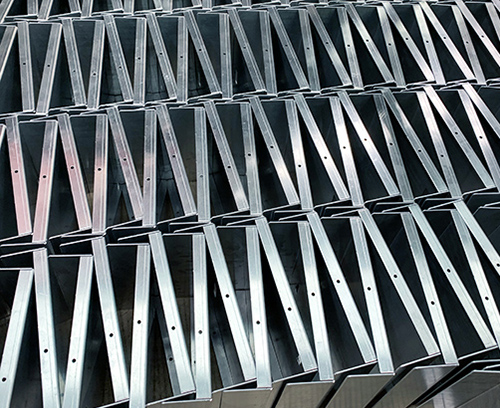

Fabricated sheet metal panels and components

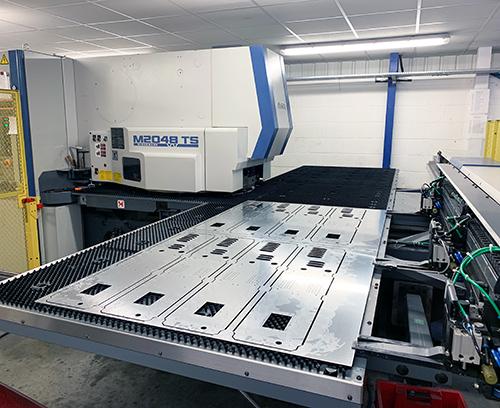

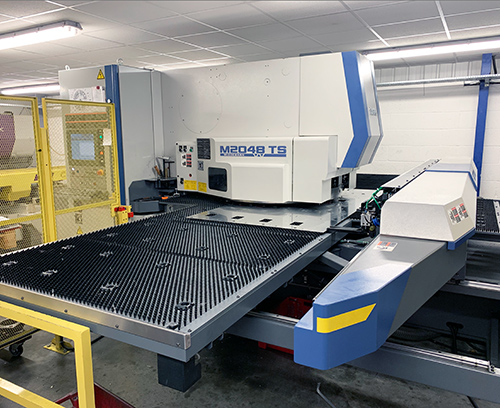

We produce all fabricated parts in-house using our state-of-the-art manufacturing facilities which include CNC punching and break press folding machines. Flat sheet aluminium and steel can be punched with any number of holes or series of slots to produce special front panels, covers, tops and base panels for our enclosures. Fully bespoke enclosures and sheet metal parts can also be fabricated to your design using these processes. We work to your drawings and specifications.

See below for a full stock list of sheet metal materials and standard hole punches we have available:

Options available:

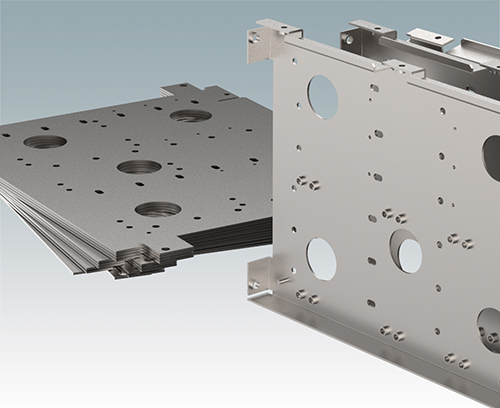

  • CNC punching of holes, slots, half shears, dimples, burst holes, vent louvres
  • CNC folding of corners, tabs, flanges, dutch folds, joggles
  • Fitting of inserts, PCB pillars, threaded studs, earth tags
  • Linishing of aluminium panels for a blemish free finish.
Contact our sales team for more information and a quotation.
  • Browse Full List
  • Catalogue Documents

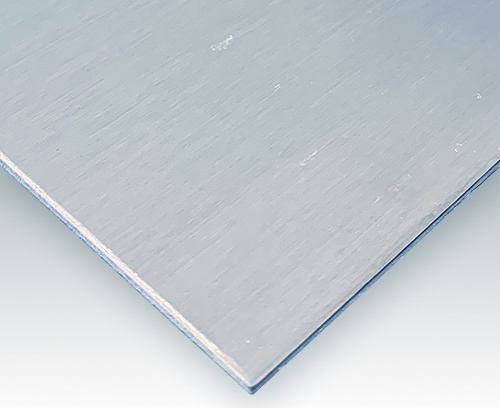

M0000600 Aluminium Sheet

M0000600

Aluminium Sheet

METCASE standard enclosures are manufactured from sheet aluminium. Parts including covers, tops, bases, side covers, front panels and rear panels are manufactured from the various grades and guages listed below. Customer specific parts can also be manufactured from these standard stocked materials.

Available finishes:

Stocked sizes:

Material Grade Thickness Sheet Size
5251 H22 1.0 mm 2000 x 1000 mm
5251 H22 1.0 mm 2500 x 1250 mm
5251 H22 1.2 mm 2500 x 1250 mm
1050 H14 1.5 mm 2500 x 1250 mm
3103 H14 1.5 mm 2000 x 1000 mm
5251 H22 2.0 mm 2500 x 1250 mm
5251 H22 2.5 mm 2000 x 1000 mm
5251 H22 3.0 mm 2000 x 1000 mm
5251 H22 4.0 mm 2000 x 1000 mm
Close

M0000600

Aluminium Sheet Aluminium
Natural finish

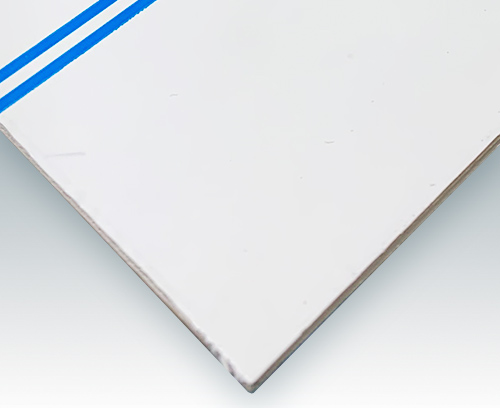

M0000601 Aluminium Sheet

M0000601

Aluminium Sheet

With removable PVC protection film on both sides.

The film provides extra protection against marking on both sides of the sheet for panels which are undergoing heavy machining and/or punching. We can also supply parts in this material to customers who carry out their own processing.

Available finishes:

Stocked sizes:

Material Grade Thickness Sheet Size
5251 H22 0.7 mm 2000 x 1000 mm
1050 H14 1.0 mm 2000 x 1000 mm
5251 H22 1.0 mm 2000 x 1000 mm
5251 H22 2.0 mm 2000 x 1000 mm
5251 H22 2.5 mm 2000 x 1000 mm
Close

M0000601

Aluminium Sheet Aluminium
PVC protection film

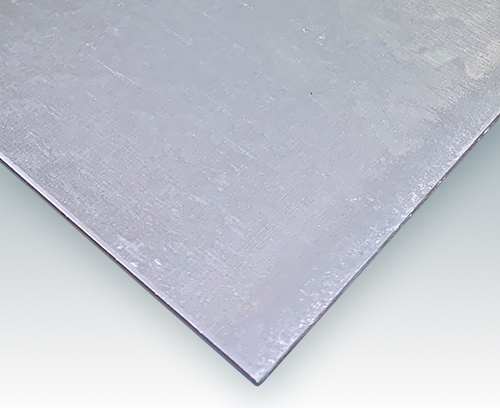

M0000650 Mild Steel Sheet, Galvanised

M0000650

Mild Steel Sheet, Galvanised

Sheet mild steel, galvanised for corrosion protection. Suitable for customer specific enclosure parts and sheet metal components.

Available finishes:

Stocked sizes:

Thickness Sheet Size
0.8 mm 2000 x 1000 mm
1.0 mm 2000 x 1000 mm
1.5 mm 2000 x 1000 mm
2.0 mm 2000 x 1000 mm
2.5 mm 2500 x 1250 mm
Close

M0000650

Mild Steel Sheet, Galvanised Mild Steel Galvanised
Galvanised

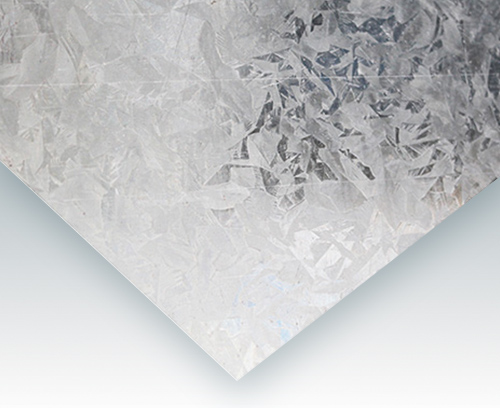

M0000651 Mild Steel Sheet, Galvanised

M0000651

Mild Steel Sheet, Galvanised

Bright spangled finish

Sheet mild steel, galvanised for corrosion protection. Suitable for customer specific enclosure parts and sheet metal components.

Available finishes:

Stocked sizes:

Thickness Sheet Size
0.7 mm 2500 x 1250 mm
0.9 mm 2000 x 1000 mm
0.9 mm 2500 x 1250 mm
1.2 mm 2000 x 1000 mm
3.0 mm 2000 x 1000 mm
Close

M0000651

Mild Steel Sheet, Galvanised Mild Steel Galvanised
Galvanised
M0000652 Mild Steel Sheet, Zintec

M0000652

Mild Steel Sheet, Zintec

Sheet mild steel zinc coated for corrosion protection. Suitable for customer specific enclosure parts and sheet metal components.

Available finishes:

Stocked sizes:

Thickness Sheet Size
0.9 mm 2000 x 1000 mm
1.2 mm 2000 x 1000 mm
1.5 mm 2000 x 1000 mm
2.0 mm 2500 x 1250 mm
Close

M0000652

Mild Steel Sheet, Zintec Mild Steel Zintec
Zinc coated

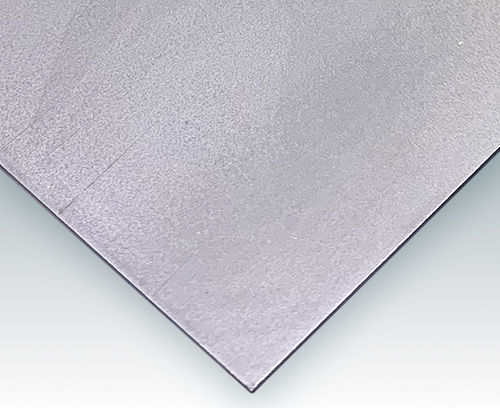

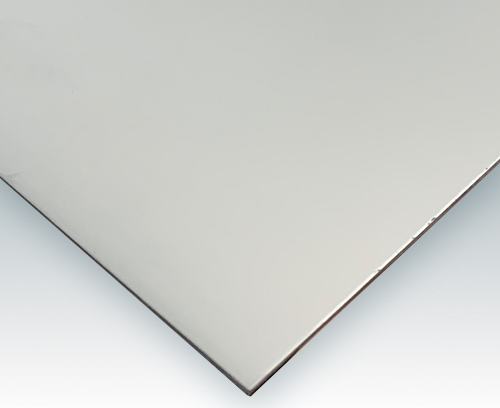

M0000653 Mild Steel Sheet CR4

M0000653

Mild Steel Sheet CR4

CR4 sheet mild steel available in stock. Suitable for customer specific enclosure parts and sheet metal components.

Available finishes:

Stocked sizes:

Thickness Sheet Size
0.9 mm 1600 x 1000 mm
0.9 mm 2000 x 1000 mm
0.8 mm 2000 x 1000 mm
0.8 mm 2000 x 1250 mm
1.2 mm 2000 x 1000 mm
1.5 mm 2000 x 1000 mm
2.0 mm 2000 x 1000 mm
Close

M0000653

Mild Steel Sheet CR4 Mild Steel CR4
Natural finish

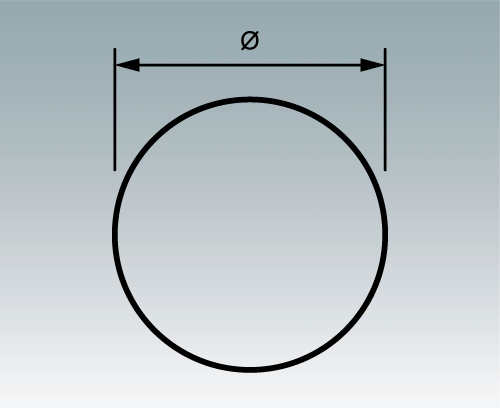

M0000800 Round Cutout

M0000800

Round Cutout

Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.

Your size not here? Custom punch sizes can be obtained to suit your specific requirements. Talk to our sales team for more information.

Range Ø Diameter (mm)
1 1 | 1.4 | 1.57 | 1.6 | 1.8
2 2 | 2.1 | 2.2 | 2.3 | 2.36 | 2.4 | 2.5 | 2.6 | 2.75 | 2.8
3 3 | 3.2 | 3.3 | 3.4 | 3.5 | 3.6 | 3.7 | 3.8
4 4 | 4.15 | 4.2 | 4.25 | 4.3 | 4.4 | 4.5 | 4.6 | 4.75 | 4.8 | 4.86 | 4.9
5 5 | 5.1 | 5.2 | 5.4 | 5.5 | 5.55 | 5.6 | 5.8
6 6 | 6.2 | 6.35 | 6.4 | 6.5 |& 6.6 | 6.7 | 6.8 | 6.9
7 7 | 7.1 | 7.2 | 7.4 | 7.6 | 7.7 | 7.9 | 7.94
8 8 | 8.2 | 8.3 | 8.5 | 8.75 | 8.8
9 9 | 9.2 | 9.5 | 9.6 | 9.7
10 10 | 10.3 | 10.5 | 10.7
11 11 | 11.13 | 11.5 | 11.7 | 11.9,
12 to 14 12 | 12.2 | 12.5 | 12.7 | 13 | 13.5 | 14 | 14.15 | 14.3 | 14.5 |14.6
15 to 19 15.1 | 15.5 | 16 | 16.4 | 16.7 | 17 | 17.6 | 17.8 | 18 | 18.6 | 19 | 19.5
20 to 24 20 | 20.2 | 20.5 | 20.8 | 20.85 | 21 | 21.5 | 22 | 22.2 | 22.5 | 22.7 | 23 | 24 | 24.4
25 to 29 25 | 25.1 | 25.4 | 26 | 26.8 | 27 | 27.5 | 28 | 28.2 | 28.65 | 29
30 to 34 30 | 31 | 31.85 | 32 | 32.85 | 33 | 34.1,
35 to 39 35.1 | 35.5 | 35.75 | 36, 37 | 37.9 | 38.1 | 38.5
40 to 49 40 | 41.28 | 41.7 | 41.88 | 45 | 45.2 | 46 | 46.5 | 48.5
50 to 59 50 | 50.67 | 50.80 | 51 | 52.38 | 53.78 | 55.35 | 58.88 | 59.18
60 to 85 65 | 67 | 68.82 | 69 | 70 | 76.2 | 84.85
Close

M0000800

Round Cutout Punch Tools

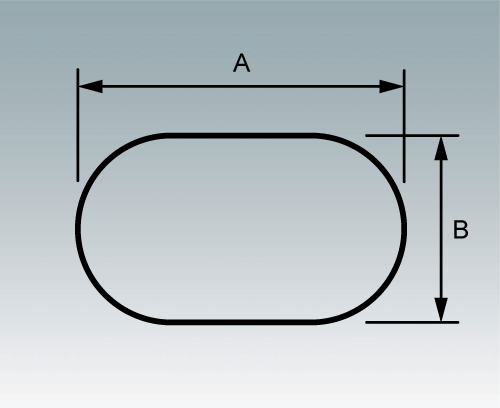

M0000801 Obround Cutout

M0000801

Obround Cutout

Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.

Your size not here? Custom punch sizes can be obtained to suit your specific requirements. Talk to our sales team for more information.

Dim A (mm) Dim B (mm)
3.5 1.6
5.0 3 | 3.3
5.2 3.2
5.5 3.2
6 3 | 4.4 | 4.5
6.5 3.5
6.6 4.4
7 4
7.16 3.16
7.62 4.5
8. 2.5 | 4.5
8.2 3.8
8.4 4
9.5 7.5
9.65 4.82
9.7 6.7
10 1.2 | 1.8 | 4 | 5 | 5.13 | 6.5 | 7
10.5 4.5 | 7 | 7.5
11 5.5 | 6
11.9 6.4
12 4
12.6 6.7
12.7 4.5 | 5 | 5.08
13 1.5
13.5 9
14 9
15 3.5 | 8
15.2 3.8
15.5 3.5
16 2 | 6
17 1.8 | 8
18 3.2
20 5
22 10
23 4
24 10
25 2 | 2.5 | 3 | 5 | 6 | 6.5 | 7.1 | 8 | 11 | 15
25.4 4.78 | 5 | 6.35
27 6 | 6.5
28 3
30 7
34.12 6.35
38 2.5
40 3
46 3
46.5 6
50 7
57 4
75 30
Close

M0000801

Obround Cutout Punch Tools
M0000802 Rectanglular Cutout

M0000802

Rectanglular Cutout

Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.

Your size not here? Rectangular holes can also be created by using a smaller punch in steps to create a larger hole. Custom punch sizes can also be obtained to suit your specific requirements. Talk to our sales team for more information.

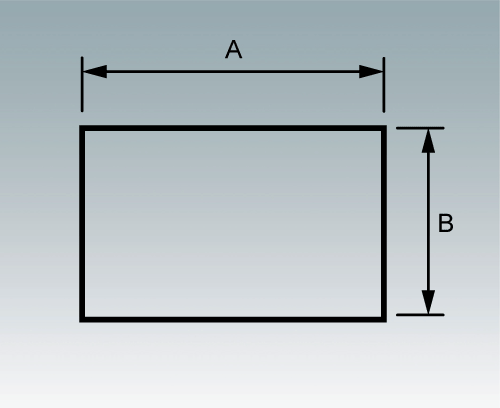

Dim A (mm) Dim B (mm)
3 1
4.2 2.1
4.75 2.4 | 2.41
4.8 2.5
5 2
5.08 2.9
5.3 1.7
6 2 | 2.3 | 2.8 | 3
6.35 0.76 | 1.4 | 3.43
6.4 3.2
7.1 4.5
7.2 4.5
7.25 2
8 4 | 4.8 | 6
8.25 1.8
9 1.7 | 2 | 6.5
10 2 | 3.5 | 4 | 5 | 6.4 | 9 | 16.2
10.4 2.5
10.66 8.13
10.8 3
11 3
11.8 2
12 1.6 | 9.6
12.1 10.9
12.5 8.5
12.7 6.35
13.2 4.8 | 6.2
13.3 9
14.3 13.2
14.5 2
15 1.5 | 2.2 | 4 | 5 | 5.5
15.24 4.04
15.3 12.7
16 6.4 | 6.47 | 13.5
16.15 6.5
16.2 10
16.32 14.03
16.6 13.1
17.5 15.9
18 1.2 | 6 | 14.6
18.7 16.7
19.02 4.25
19.05 2.29
19.5 13
20 2 | 2.5 | 3 | 10
20.8 8.64
21 3
21.3 12.5
22.5 14.7
22.9 7.4
24 6
25 1, 4
25.4 5 | 7.12 | 14.1
26 2
27.7 11.5
28.6 22.25
29 11 | 12
29.38 22
30 6
32 20
33 31
34.4 18.3
35 6
36 8
37.1 18.28
40 8 | 10
43 13
43.5 14
43.8 8
44 5
45 10
46.5 12
47 16
49 11
50 2.5 | 5 | 12 | 12.3 | 25
50.8 6.35
55 13.6
60 6 | 9 | 12.8
66 35
70 4,20
74.6 19.05
75 5
80 8.3
100 5
106.75 36.25
Close

M0000802

Rectanglular Cutout Punch Tools

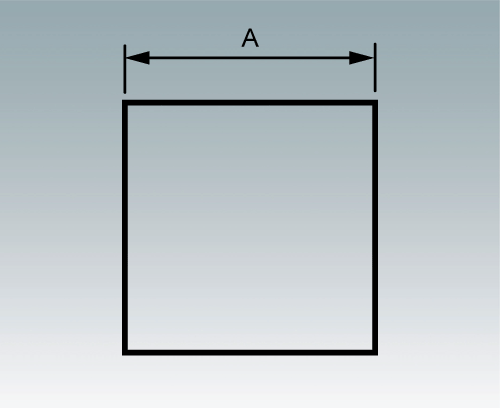

M0000803 Square Cutout

M0000803

Square Cutout

Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.

Your size not here? Square holes can also be created by using a smaller punch in steps to create a larger hole. Custom punch sizes can also be obtained to suit your specific requirements. Talk to our sales team for more information.

Dim A (mm)
2
3 | 3.1 | 3.5 | 3.8
4 | 4.2 | 4.5
5
6.5
8 | 8.5
9 | 9.6
10
11 | 11.5
12 | 12.7
14
16
19
25 | 25.4
39.5
48
50
Close

M0000803

Square Cutout Punch Tools

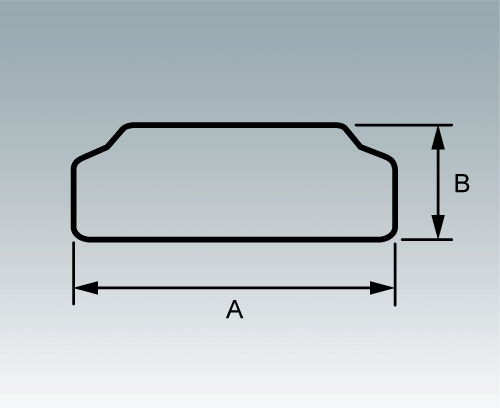

M0000804 HDMI Cutout

M0000804

HDMI Cutout

Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.

Your size not here? Custom punch sizes can be obtained to suit your specific requirements. Talk to our sales team for more information.

Dim A (mm) Dim B (mm)
5.95 15.4
6.8 16.3
Close

M0000804

HDMI Cutout Punch Tools

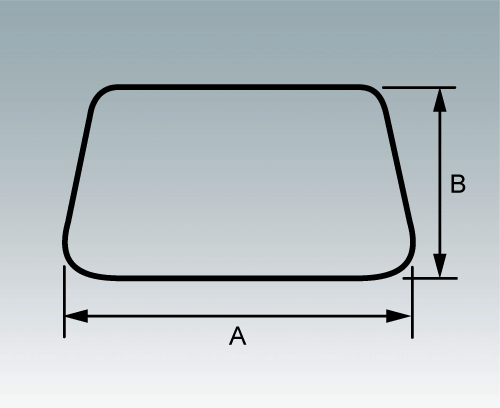

M0000805 D-SUB Cutout

M0000805

D-SUB Cutout

Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.

Your size not here? Custom punch sizes can be obtained to suit your specific requirements. Talk to our sales team for more information.

Dim A (mm) Dim B (mm)
19.59 10.5
27.7 10.9
20.55 11.45
21.39 12.9
43.49 12.9
11.39 19.8
11.45 29.98
Close

M0000805

D-SUB Cutout Punch Tools

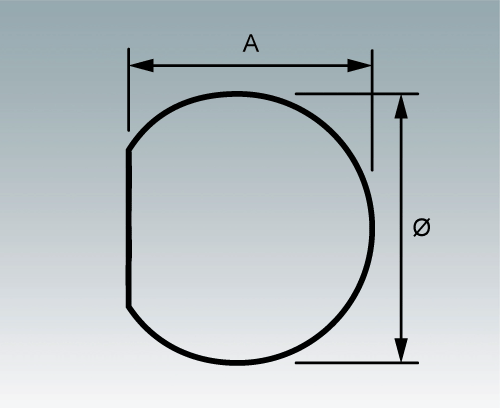

M0000806 SD Cutout

M0000806

SD Cutout

Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.

Your size not here? Custom punch sizes can be obtained to suit your specific requirements. Talk to our sales team for more information.

Diameter (mm) Dim A (mm)
4.95 4.4
6.4 6.02
6.3 6
6.6 6.1
7 6.5
7.2 6.8
8.2 7.6
8.6 7.8
9 8
9.8 8.7
9.7 8.9
10.3 9.8
11.1 10.2
11.2 10.7
12.9 12
12.7 12.05
13 12.1
13.2 12.2
13.7 12.9
15.5 13.25
14.4 13.7
15.2 14.2
15.5 14.7
15.5 14.8
16.3 15.2
17.6 16.9
19.2 18.2
19.1 18.64
22.3 21
25.7 24.2
28.5 27.18
35.16 33.61
56 53
Close

M0000806

SD Cutout Punch Tools

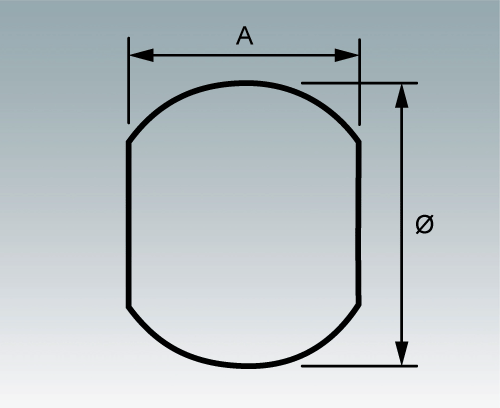

M0000807 DD Cutout

M0000807

DD Cutout

Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.

Your size not here? Custom punch sizes can be obtained to suit your specific requirements. Talk to our sales team for more information.

Diameter (mm) Dim A (mm)
4 2.85
6 3.5
6.5 5.5
8 6.4
8.4 6.4
8.5 7.5
10.4 7.5
10.15 8.15
9.2 8.3
9.9 8.7
11.3 9.7
12 10.8
12 11.2
12.5 11.5
12.9 11.5
12.7 11.8
14 12.5
15.15 13
16 13
15.15 13.65
15.9 13.6
16.3 14
16.28 14.22
16 14.22
17.5 16.25
19.5 16.5
19.1 16.6
18.05 16.85
19.1 17.5
21.1 19.3
35 30.2
Close

M0000807

DD Cutout Punch Tools

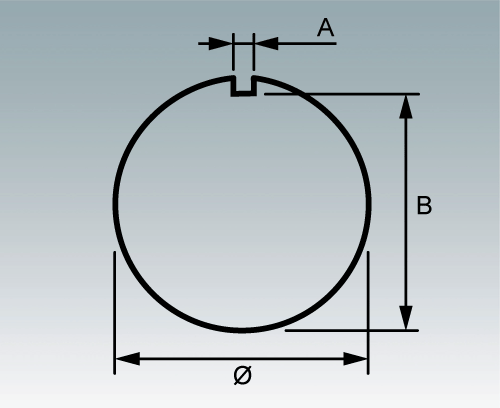

M0000808 Keyway Cutout

M0000808

Keyway Cutout

Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.

Your size not here? Custom punch sizes can be obtained to suit your specific requirements. Talk to our sales team for more information.

Diameter (mm) Dim A (mm) Dim B (mm)
6.3 5.8 0.9
6.5 5.7 0.64
10.3 9.5 1.5
12.2 11 1.5
12.3 11.1 1.5
12.4 11.4 1.5
16 15.5 1.7
Close

M0000808

Keyway Cutout Punch Tools

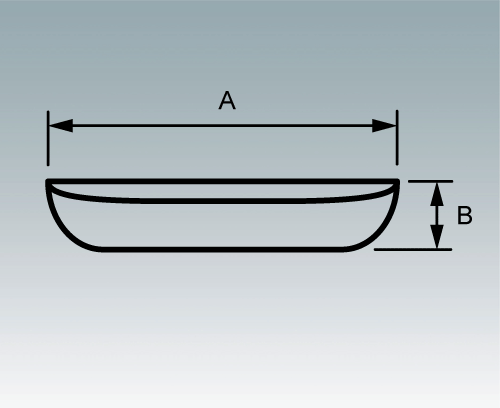

M0000809 Ventilation Louvre

M0000809

Ventilation Louvre

Standard punches for putting ventilation louvres into enclosure rear panels, covers, tops and base panels. A series of ventilation louvres can punched into the panel to suit your cooling requirements.

Talk to our sales team to discuss your specific requirements.

Dim A (mm) Dim B (mm)
49.5 15
78 15.7
Close

M0000809

Ventilation Louvre Punch Tools

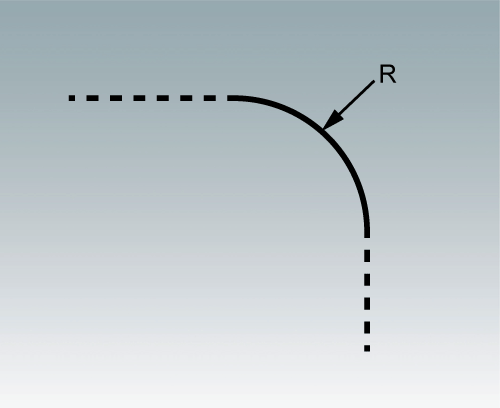

M0000810 Corner Radius

M0000810

Corner Radius

Standard punches for putting a corner radius on the outside corner of enclosure panels. Internal corner radii is generated with our "round" punches.

Your size not here? Custom punch sizes can be obtained to suit your specific requirements. Talk to our sales team for more information.

R (mm)
2.5 | 4 | 5 | 6 | 10 | 12 | 15
Close

M0000810

Corner Radius Punch Tools
