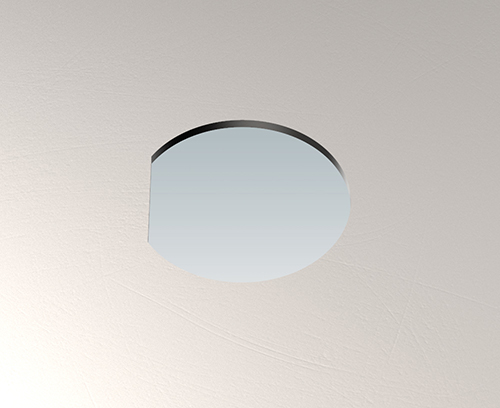

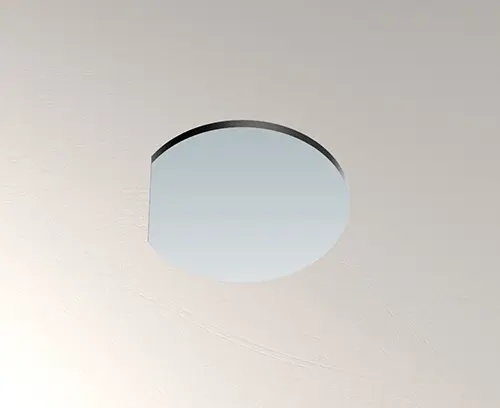

M0000806 SD Cutout

M0000806

SD Cutout

Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.

Your size not here? Custom punch sizes can be obtained to suit your specific requirements. Talk to our sales team for more information.

Diameter (mm) Dim A (mm)
4.95 4.4
6.4 6.02
6.3 6
6.6 6.1
7 6.5
7.2 6.8
8.2 7.6
8.6 7.8
9 8
9.8 8.7
9.7 8.9
10.3 9.8
11.1 10.2
11.2 10.7
12.9 12
12.7 12.05
13 12.1
13.2 12.2
13.7 12.9
15.5 13.25
14.4 13.7
15.2 14.2
15.5 14.7
15.5 14.8
16.3 15.2
17.6 16.9
19.2 18.2
19.1 18.64
22.3 21
25.7 24.2
28.5 27.18
35.16 33.61
56 53

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Weight/1 part
1 g
