M6010315 INSTRUMET 10.5

M6010315

INSTRUMET 10.5" 3Ux350mm

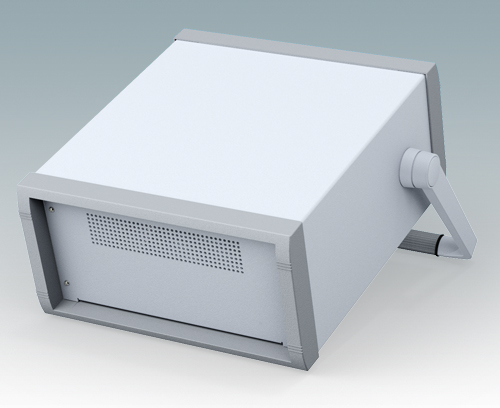

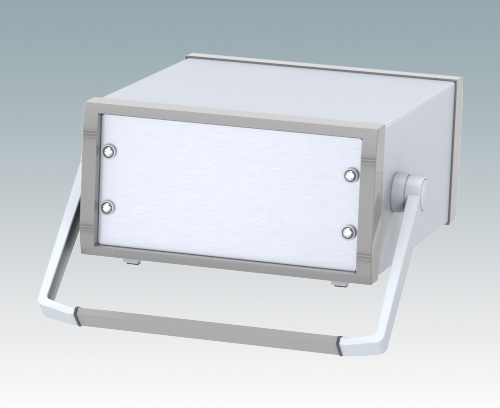

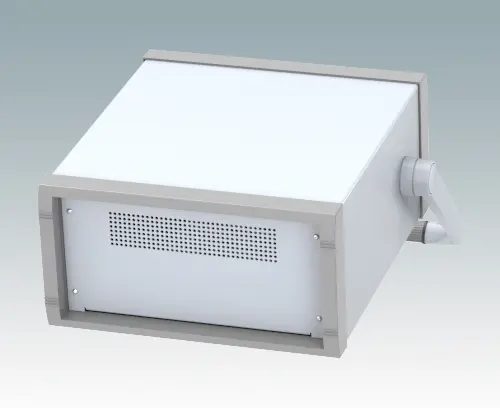

Stylish 10.5" instrument case for mounting 3U subracks, chassis or front panels. Portable version with metal handle/bail arm. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version

With handle/bail arm

Supply

Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), carry handle bar, ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

  • Components/Accessories

Accessory

M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).

Close

M5900016

19" mounting kit Black RAL 9005
M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light grey plastic cup washer (x4).

Close

M6000035

19" mounting kit Light grey RAL 7035
M6010001 Front panel 3Ux10.5"

M6010001

Front panel 3Ux10.5" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Front panel

Close

M6010001

Front panel 3Ux10.5" Aluminium
Matt anodised
269.2x3x132.5mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
Light grey/window grey RAL 7035/7040
Standards
IEC 297-1
REACH compliant
DIN 41494
RoHS compliant
Height
157 mm
Width
303 mm
Depth
350 mm
Height Unit
3 U

Catalogue Pages

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3.5 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
