M5100510 Front/rear panel AN (size 1 & 3)

M5100510

Front/rear panel AN (size 1 & 3)

Anodised aluminium front/rear panel for MINIMET size 1 and 3 cases

Supply

Anodised panel, 2 ABS trims (panel fixings supplied with case).

  • To be used for
M5113115 MINIMET 1

M5113115

MINIMET 1 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

Close

M5113115

MINIMET 1 Aluminium
Light grey RAL 7035
134.5x130x38.5mm

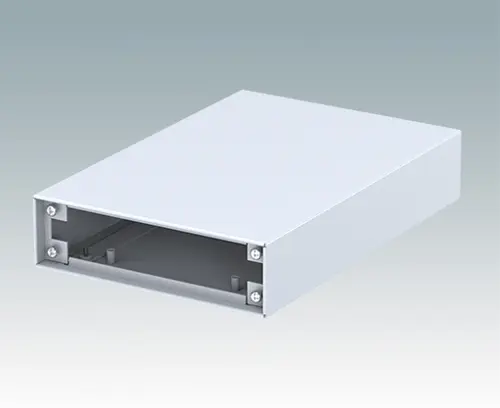

M5113215 MINIMET 3

M5113215

MINIMET 3 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

Close

M5113215

MINIMET 3 Aluminium
Light grey RAL 7035
134.5x200x38.5mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
Matt anodised
Standards
REACH compliant
RoHS compliant
Width
129.5 mm
Height
2 mm
Depth
33.6 mm

Catalogue Pages

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0.03 kg
Customs tariff number
(METCASE product)
76061292
Country of manufacture
U.K.
