Minimet

For small desktop and portable electronics

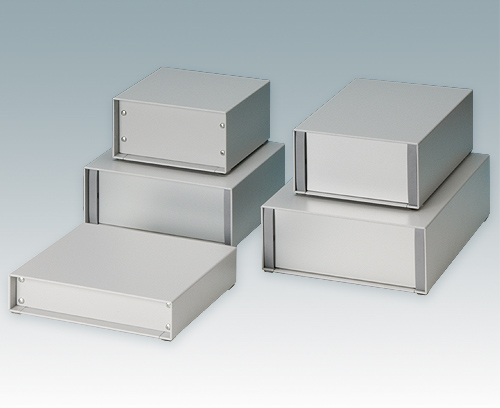

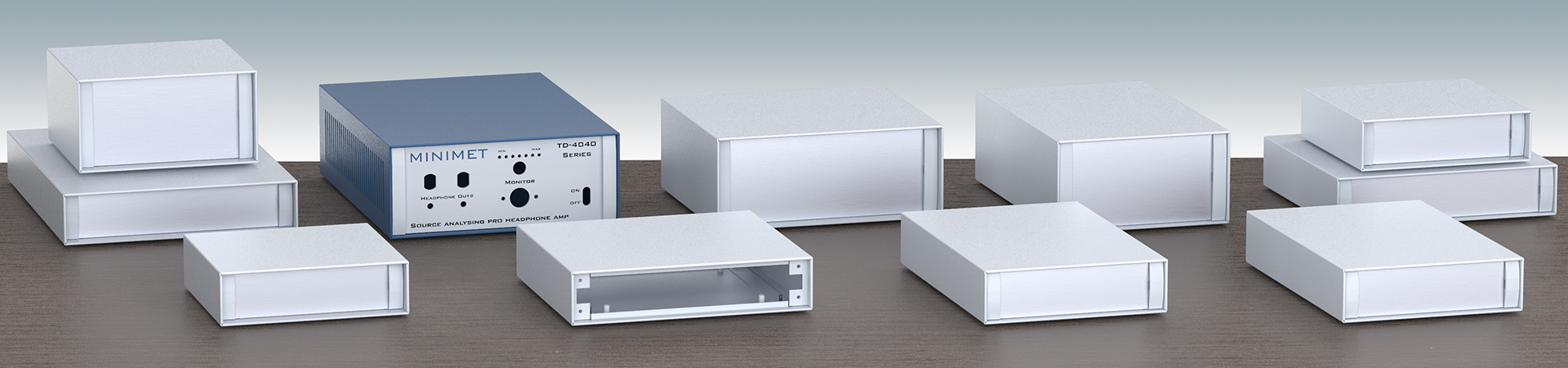

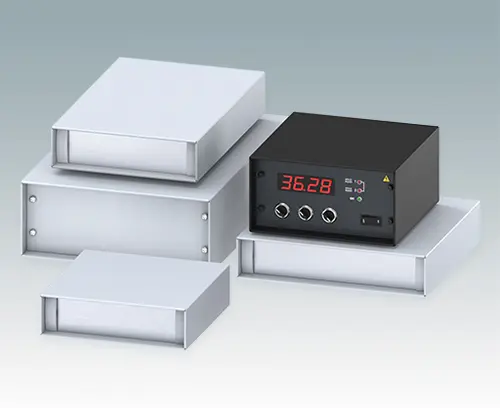

  • Compact aluminium instrument enclosures in eight standard sizes

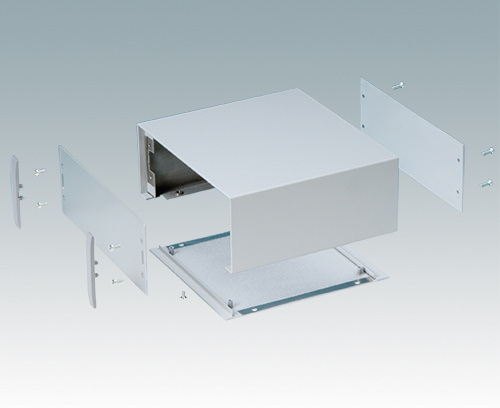

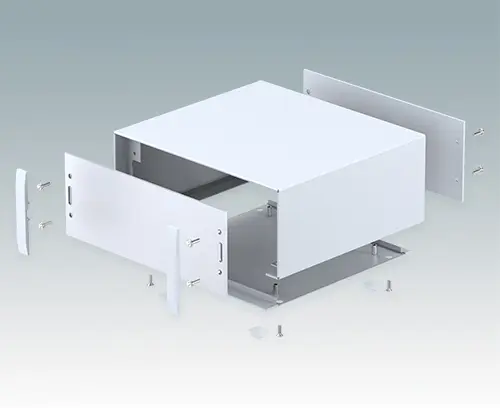

  • Stylish, lightweight and versatile design, simple and fast assembly technique

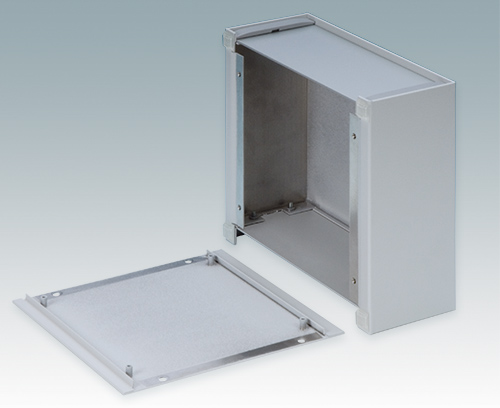

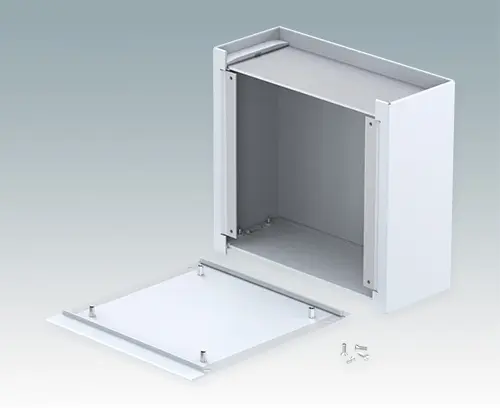

  • Removable base panel pre-fitted with four M3 PCB screw pillars

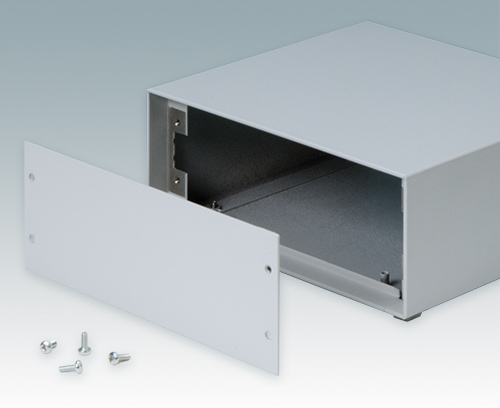

  • Accessories: anodised front/rear panels and painted front/rear panels

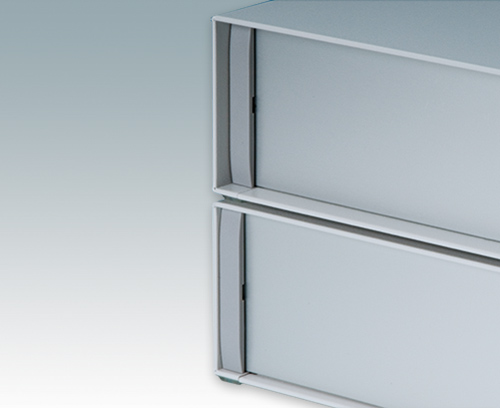

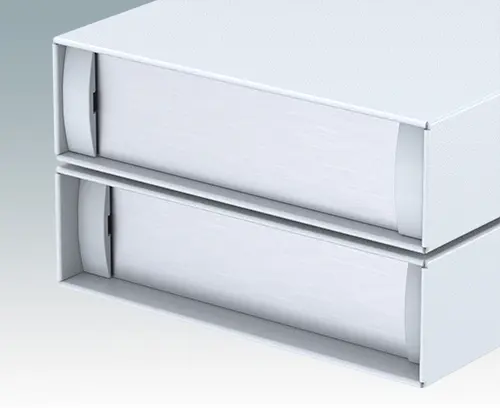

  • Front panels are recessed by 8 mm or 14 mm
  • Four self-adhesive non-slip feet included.

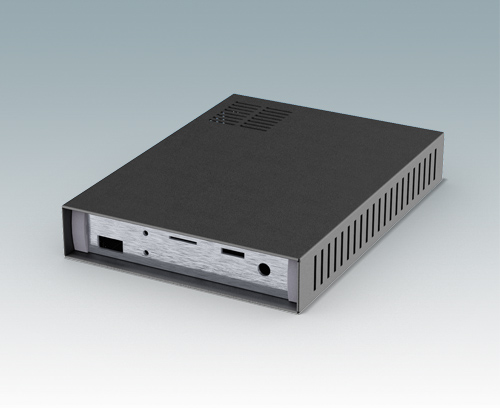

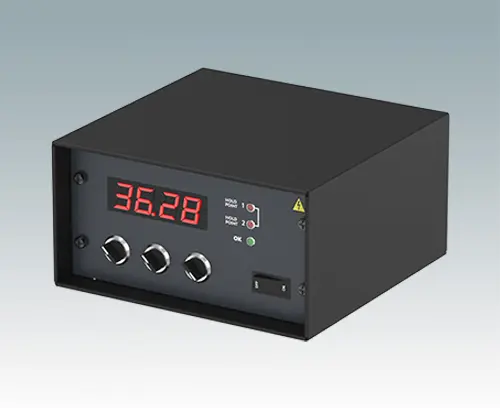

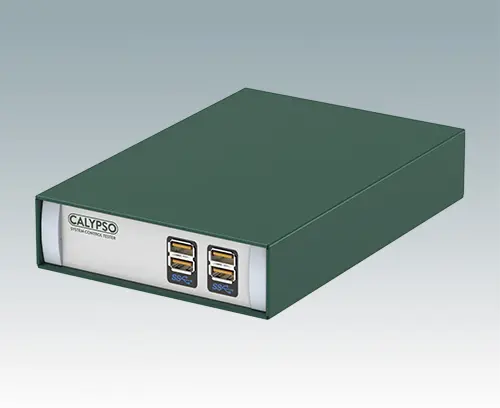

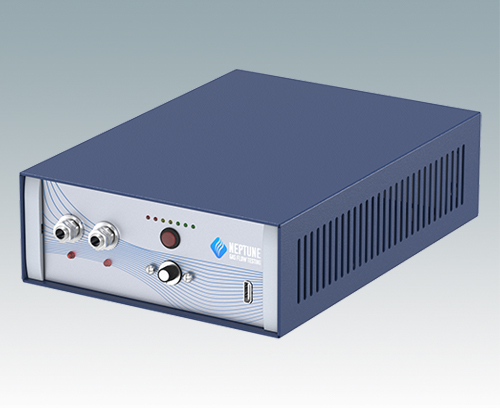

Order your own fully customised version learn more here >>

  • Video

Application fields

Medical and wellness devices, test and measurement equipment, industrial control, peripheral devices and interfaces, switchboxes, communications and laboratory equipment.
  • Browse Full List
  • Accessories
  • Catalogue Documents
AltText

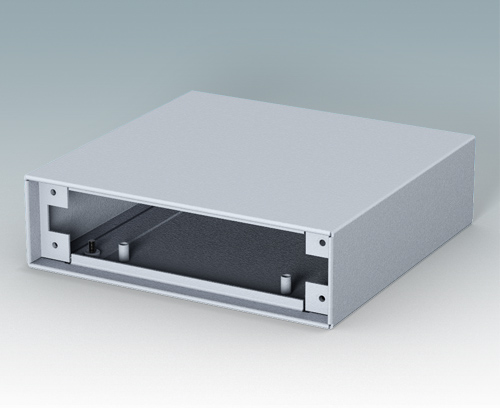

M5113115

MINIMET 1 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

Close

M5113115

MINIMET 1
product added to your basket
Aluminium
Light grey RAL 7035
134.5x130x38.5mm
AltText

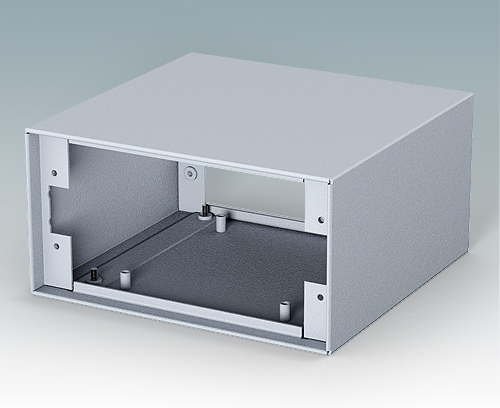

M5113125

MINIMET 2 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

Close

M5113125

MINIMET 2
product added to your basket
Aluminium
Light grey RAL 7035
134.5x130x70mm
AltText

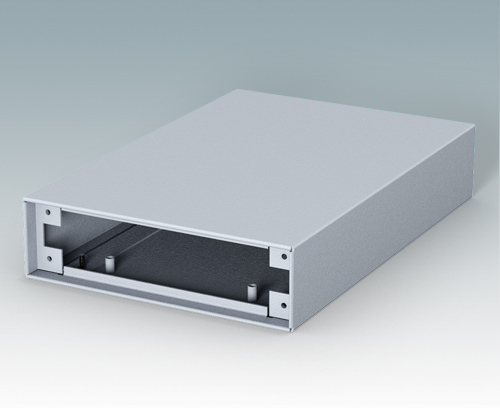

M5113215

MINIMET 3 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

Close

M5113215

MINIMET 3
product added to your basket
Aluminium
Light grey RAL 7035
134.5x200x38.5mm
AltText

M5113225

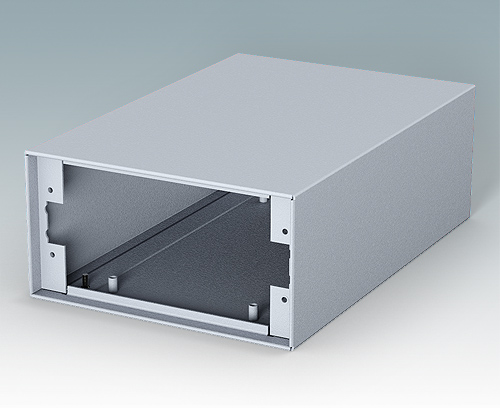

MINIMET 4 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

Close

M5113225

MINIMET 4
product added to your basket
Aluminium
Light grey RAL 7035
134.5x200x70mm
AltText

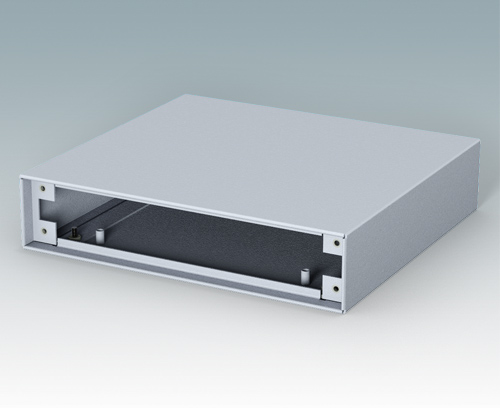

M5117115

MINIMET 5 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

Close

M5117115

MINIMET 5
product added to your basket
Aluminium
Light grey RAL 7035
174.5x160x38.5mm
AltText

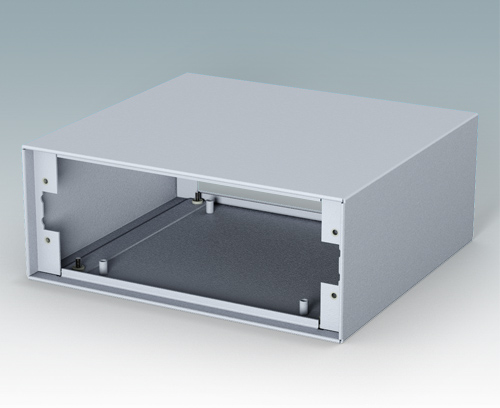

M5117125

MINIMET 6 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

Close

M5117125

MINIMET 6
product added to your basket
Aluminium
Light grey RAL 7035
174.5x160x70mm
AltText

M5117215

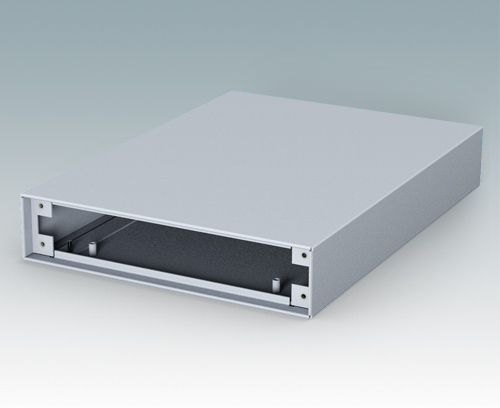

MINIMET 7 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

Close

M5117215

MINIMET 7
product added to your basket
Aluminium
Light grey RAL 7035
174.5x240x38.5mm
AltText

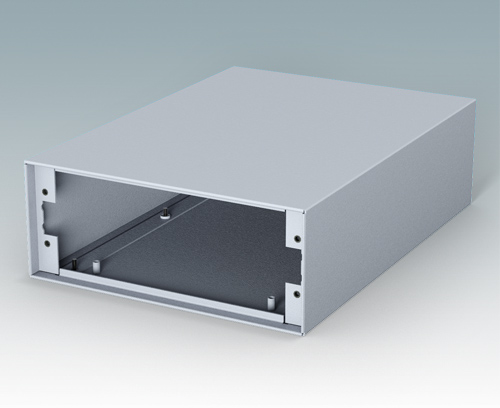

M5117225

MINIMET 8 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

Close

M5117225

MINIMET 8
product added to your basket
Aluminium
Light grey RAL 7035
174.5x240x70mm
AltText

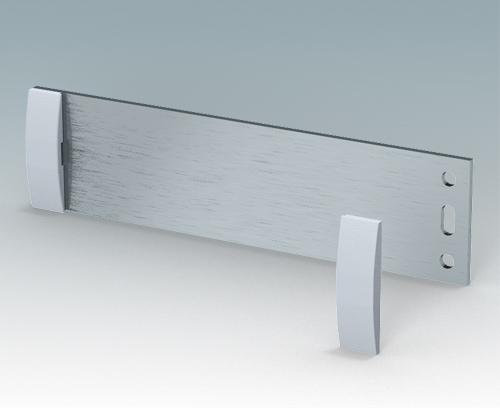

M5100510

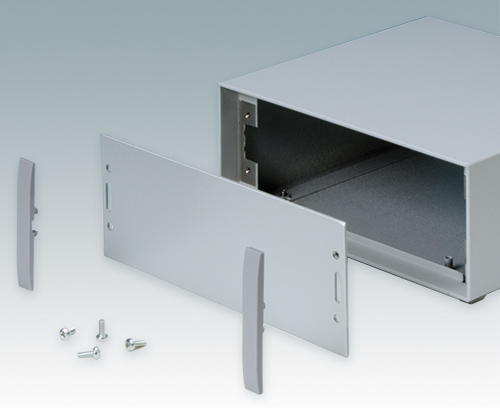

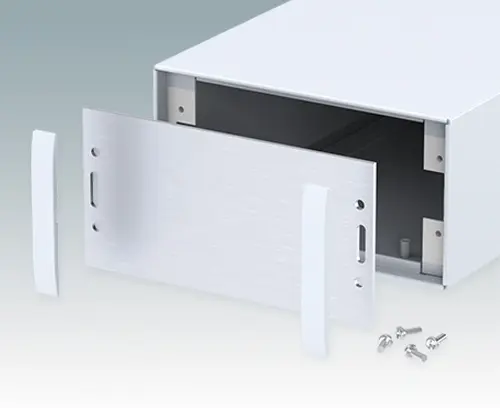

Front/rear panel AN (size 1 & 3) Anodised aluminium front/rear panel for MINIMET size 1 and 3 cases

Supply Anodised panel, 2 ABS trims (panel fixings supplied with case).

Close

M5100510

Front/rear panel AN (size 1 & 3)
product added to your basket
Aluminium
Matt anodised
129.5x2x33.6mm
AltText

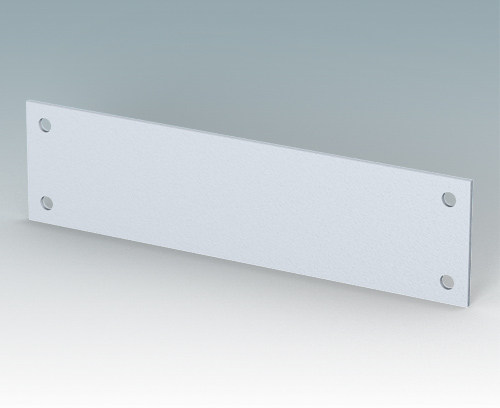

M5100515

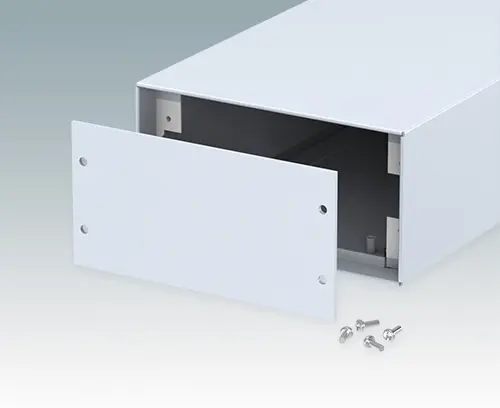

Front/rear panel PN (size 1 & 3) Painted aluminium front/rear panel for MINIMET size 1 and 3 cases

Supply Painted panel (panel fixings supplied with case).

Close

M5100515

Front/rear panel PN (size 1 & 3)
product added to your basket
Aluminium
Light grey RAL 7035
129.5x1.5x33.6mm
AltText

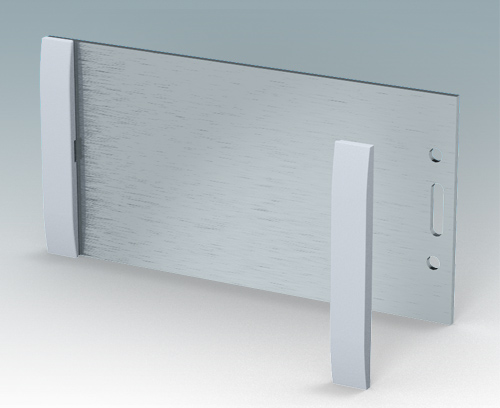

M5100520

Front/rear panel kit AN (size 2 & 4) Anodised aluminium front/rear panel for MINIMET size 2 and 4 cases

Supply Anodised panel, 2 ABS trims (panel fixings supplied with case).

Close

M5100520

Front/rear panel kit AN (size 2 & 4)
product added to your basket
Aluminium
Matt anodised
129.5x2x65.1mm
AltText

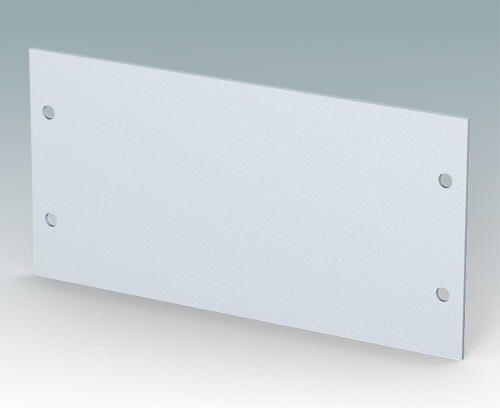

M5100525

Front/ rear panel PN (size 2 & 4) Painted aluminium front/rear panel for MINIMET case 2 and 4 cases

Supply Painted panel (panel fixings supplied with case).

Close

M5100525

Front/ rear panel PN (size 2 & 4)
product added to your basket
Aluminium
Light grey RAL 7035
129.5x1.5x65.1mm
AltText

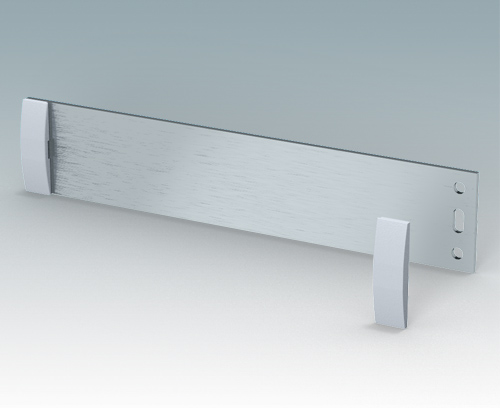

M5100550

Front/rear panel kit AN (size 5 & 7) Anodised aluminium front/rear panel for MINIMET size 5 and 7 cases

Supply Anodised panel, 2 ABS trims (panel fixings supplied with case).

Close

M5100550

Front/rear panel kit AN (size 5 & 7)
product added to your basket
Aluminium
Matt anodised
169.5x2x33.6mm
AltText

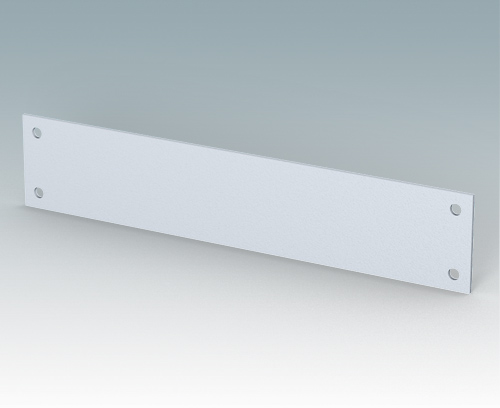

M5100555

Front/rear panel PN (size 5 & 7) Painted aluminium front/rear panel for MINIMET size 5 and 7 cases

Supply Painted panel (panel fixings supplied with case).

Close

M5100555

Front/rear panel PN (size 5 & 7)
product added to your basket
Aluminium
Light grey RAL 7035
169.5x1.5x33.6mm
AltText

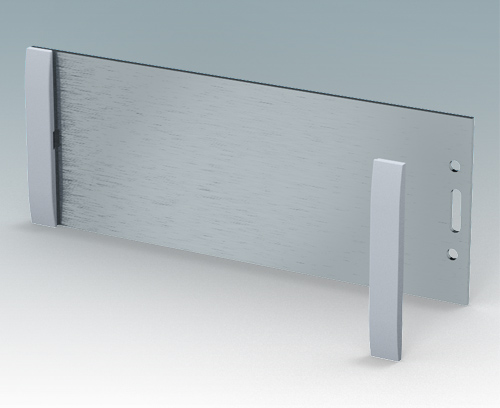

M5100560

Front/rear panel kit AN (size 6 & 8) Anodised aluminium front/rear panel for MINIMET size 6 and 8 cases

Supply Anodised panel, 2 ABS trims (panel fixings supplied with case).

Close

M5100560

Front/rear panel kit AN (size 6 & 8)
product added to your basket
Aluminium
Matt anodised
169.5x2x65.1mm
AltText

M5100565

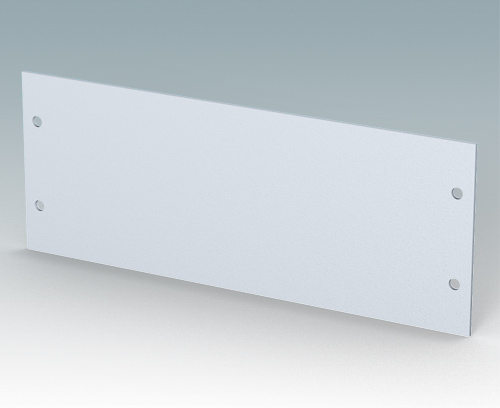

Front/rear panel PN (size 6 & 8) Painted aluminium front/rear panel for MINIMET size 6 and 8 cases

Supply Painted panel (panel fixings supplied with case).

Close

M5100565

Front/rear panel PN (size 6 & 8)
product added to your basket
Aluminium
Light grey RAL 7035
169.5x1.5x65.1mm
AltText

M5600010

PCB/Panel Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customised with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

Close

M5600010

PCB/Panel Fixing Screws, M3
product added to your basket
Steel
Zinc coated
6mm
