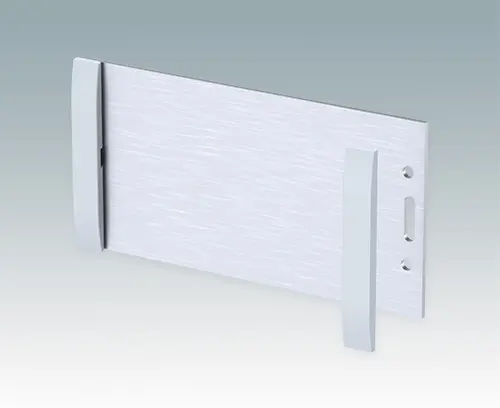

M5100520 Front/rear panel kit AN (size 2 & 4)

M5100520

Front/rear panel kit AN (size 2 & 4)

Anodised aluminium front/rear panel for MINIMET size 2 and 4 cases

Supply

Anodised panel, 2 ABS trims (panel fixings supplied with case).

  • To be used for

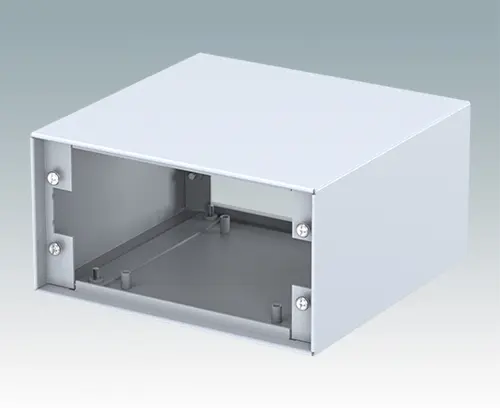

M5113125 MINIMET 2

M5113125

MINIMET 2 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

Close

M5113125

MINIMET 2 Aluminium
Light grey RAL 7035
134.5x130x70mm

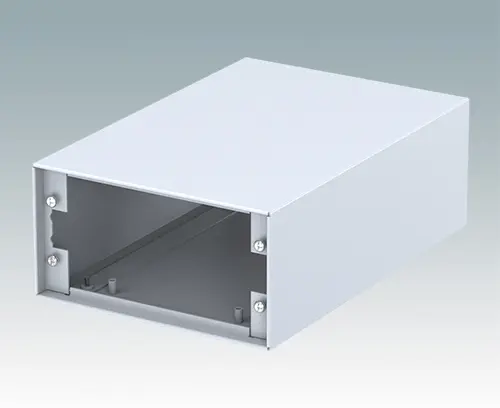

M5113225 MINIMET 4

M5113225

MINIMET 4 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

Close

M5113225

MINIMET 4 Aluminium
Light grey RAL 7035
134.5x200x70mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
Matt anodised
Standards
REACH compliant
RoHS compliant
Width
129.5 mm
Height
2 mm
Depth
65.1 mm

Catalogue Pages

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0.05 kg
Customs tariff number
(METCASE product)
76061292
Country of manufacture
U.K.
