M6610346

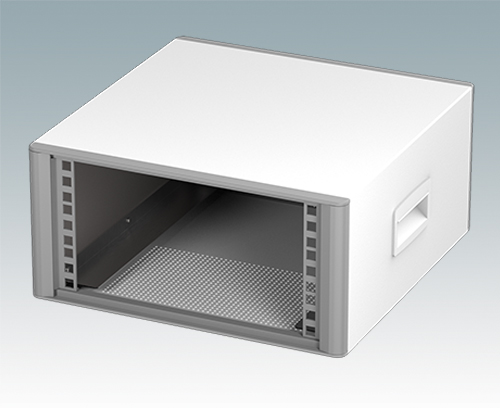

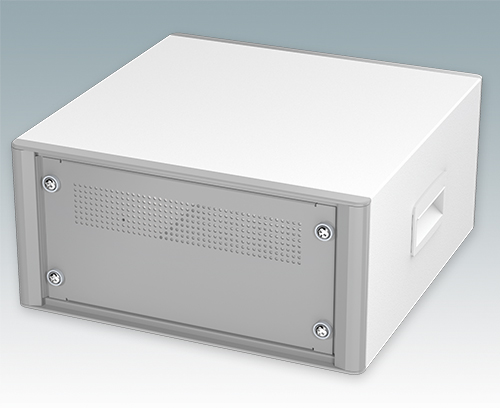

Modern and highly attractive 10.5" instrument enclosure for mounting 3U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

RC103 with side handles

Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.
