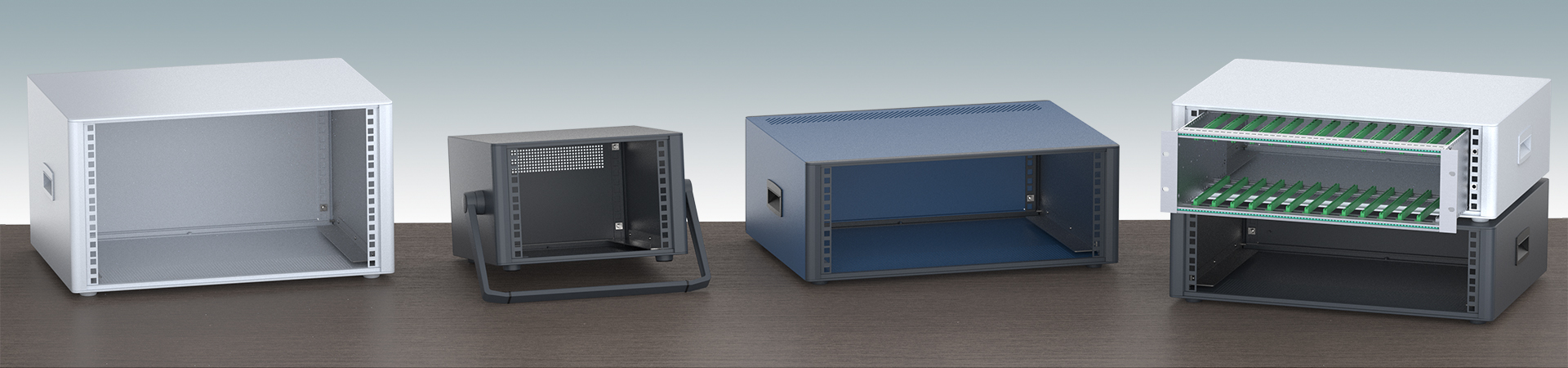

Modern 19" rack enclosures
Customised versions to your exact requirements19" rack enclosure 3U, 4U and 6UFor fitting 19" subrack and chassisCase componentsStandard ventilation slotsSupplied with a ventilated rear panelInternal chassis supportsAccessory 19" front panelsFitted with four ABS feet with non-slip padsModern 19" rack enclosures

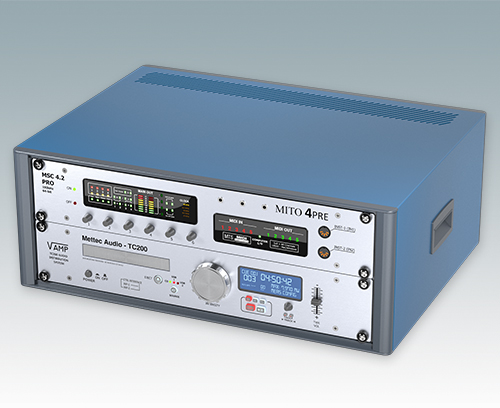

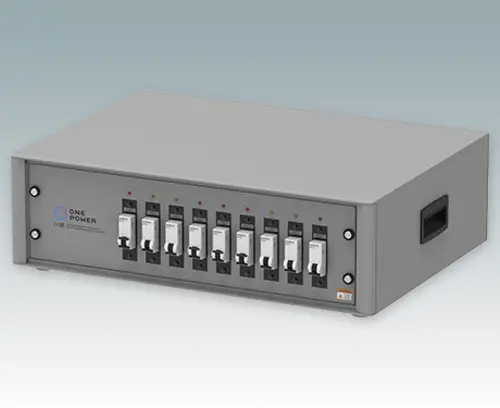

Customised versions to your exact requirements

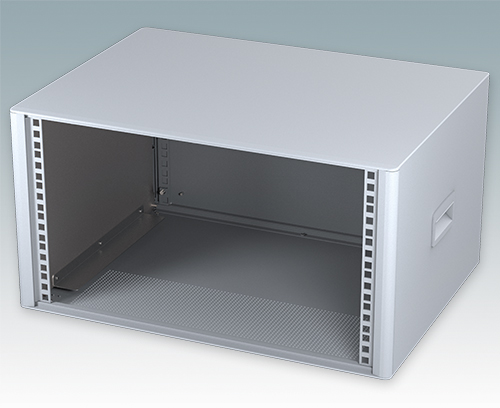

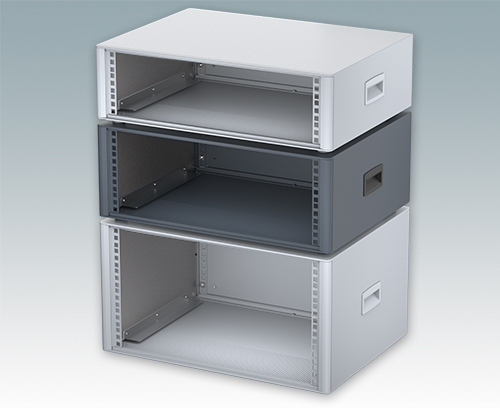

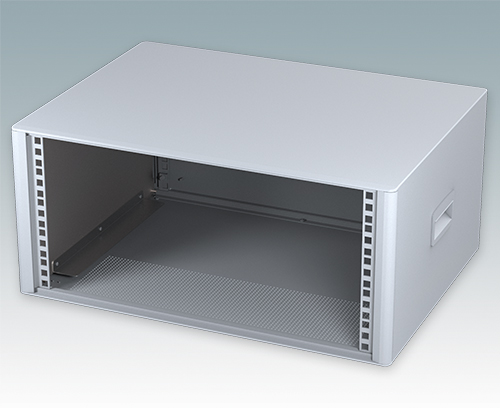

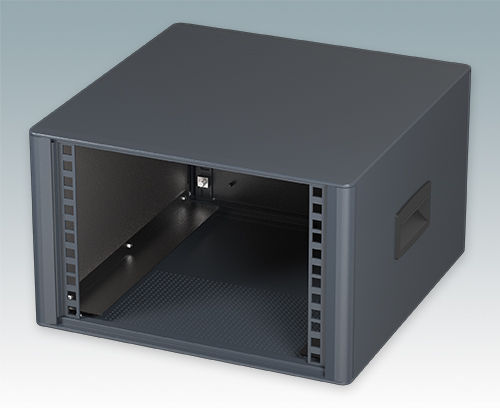

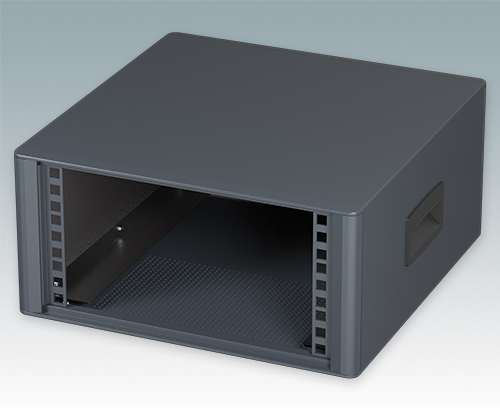

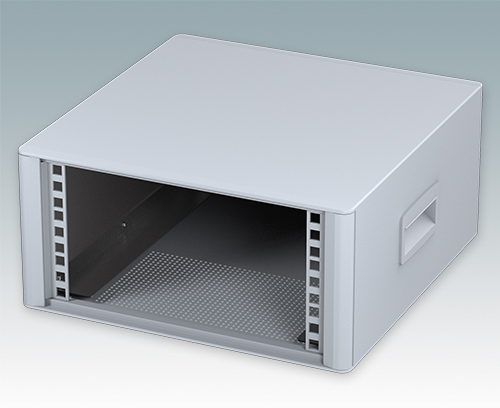

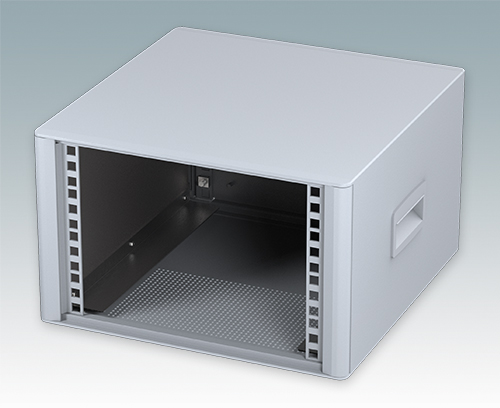

19" rack enclosure 3U, 4U and 6U

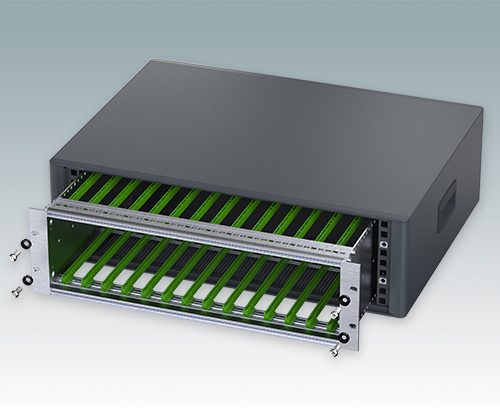

For fitting 19" subrack and chassis

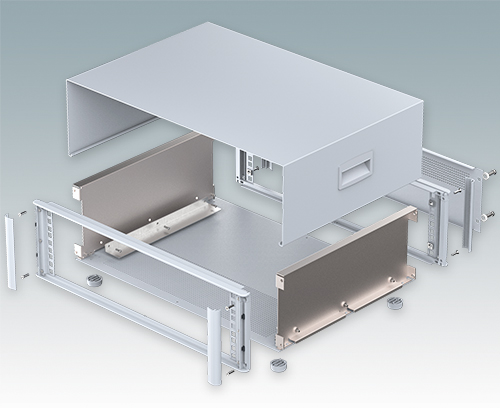

Case components

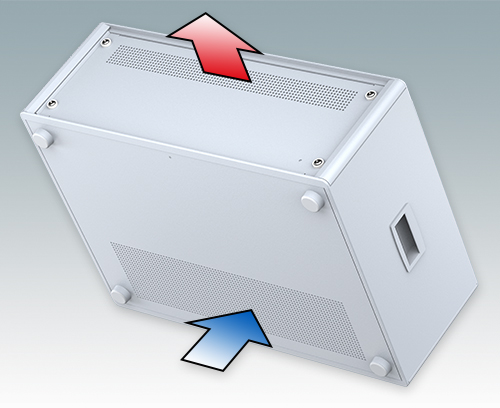

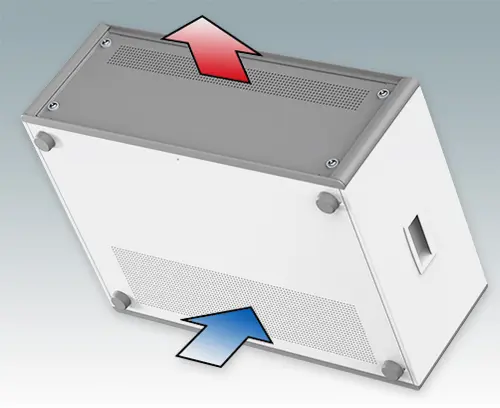

Standard ventilation slots

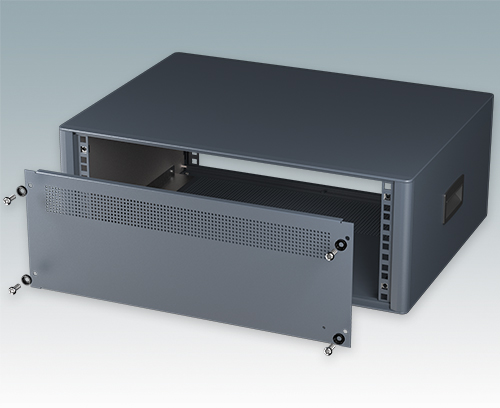

Supplied with a ventilated rear panel

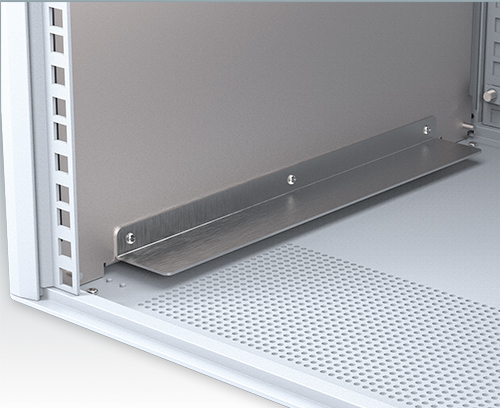

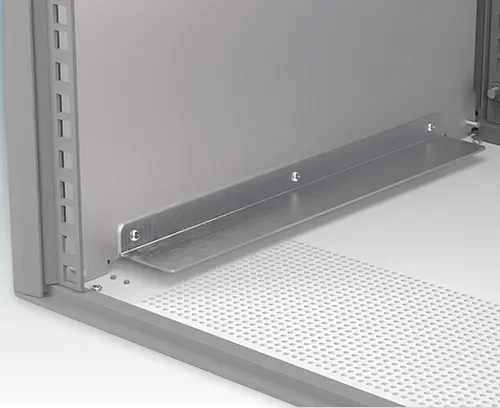

Internal chassis supports

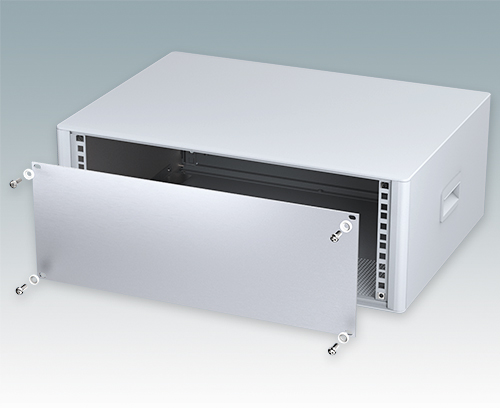

Accessory 19" front panels

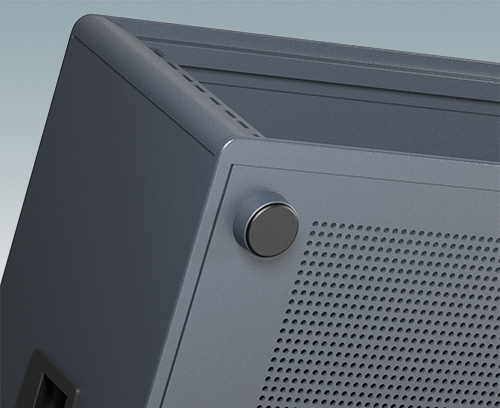

Fitted with four ABS feet with non-slip pads

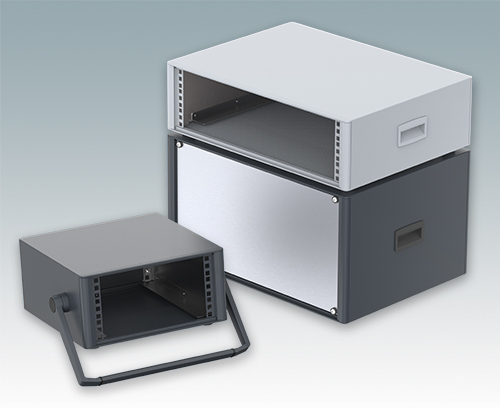

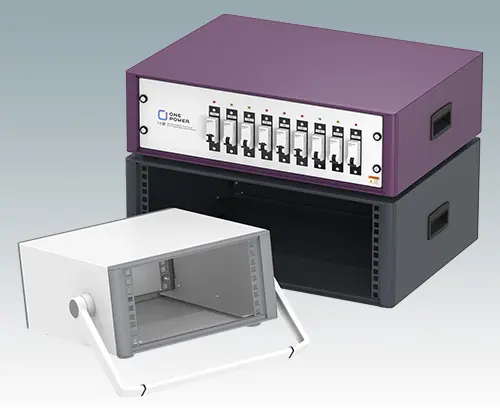

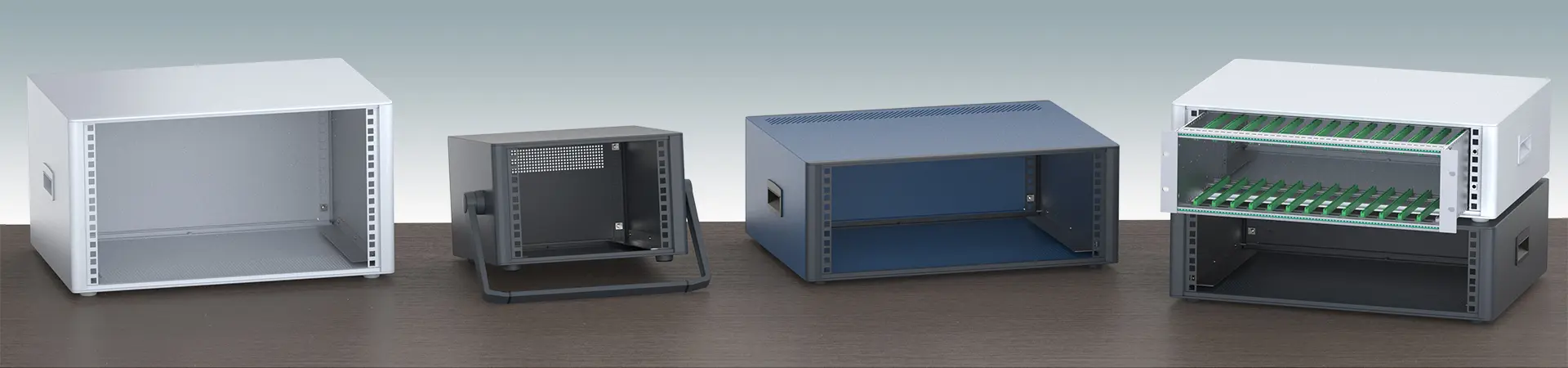

Modern 19" rack enclosures

Technomet 19"

Modern Rack Mount Enclosures

  • Cohesive design with no visible fixing screws
  • Robust yet lightweight aluminium construction
  • Conforms to DIN 41494 and IEC 297-1
  • Designed to accept standard subracks, chassis and front panels
  • Die cast bezels fit flush with the case body for a smooth appearance
  • Recessed ABS side handles
  • Supplied fully assembled and ready to use
  • Internal subrack/chassis support rails
  • Removable rear panel included
  • Ventilation holes in base and rear panel
  • All case panels fitted with M4 threaded pillars for earth connections
  • Moulded ABS non-slip feet included
  • Accessory anodised 19" front panels available.

Order your own fully customised version learn more here >>

Applications

19" subrack or chassis based electronics such as test and measurement equipment, networking and communications devices, industrial computers, sound and studio systems, laboratory instruments and industrial control systems.

  • Video



  • Browse Full List
  • Catalogue Documents
NEW PRODUCT
View

M6619344  Add to my list

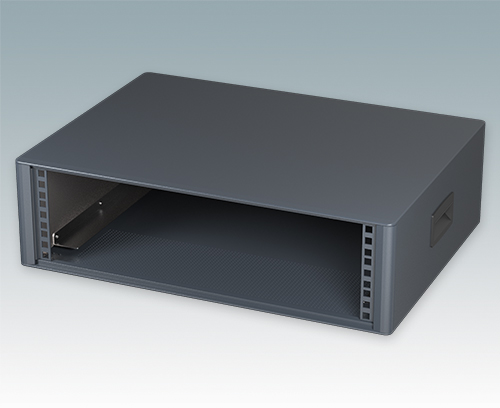

TECHNOMET 19" 3Ux400mm

Aluminium
Anthracite RAL 7016
155.6x540x400mm

M6619345  Add to my list
TECHNOMET 19'' 3Ux400mm

Aluminium
Light grey RAL 7035
155.6x540x400mm

M6619444  Add to my list
TECHNOMET 19'' 4Ux400mm

Aluminium
Anthracite RAL 7016
200x540x400mm

M6619445  Add to my list
TECHNOMET 19'' 4Ux400mm

Aluminium
Light grey RAL 7035
200x540x400mm

M6619644  Add to my list
TECHNOMET 19'' 6Ux400mm

Aluminium
Anthracite RAL 7016
288.9x540x400mm

M6619645  Add to my list
TECHNOMET 19'' 6Ux400mm

Aluminium
Light grey RAL 7035
288.9x540x400mm

Accessory

M5900016  Add to my list
19" mounting kit

Black RAL 9005

M6000035  Add to my list
19" mounting kit

Light grey RAL 7035

M6019001  Add to my list
Front panel 3Ux19"

Aluminium
Matt anodised
482.6x3x132.5mm

M6019010  Add to my list
Front panel 1Ux19"

Aluminium
Matt anodised
482.6x3x43.6mm

M6019011  Add to my list
Front panel 1Ux19" vented

Aluminium
Matt anodised
482.6x3x43.6mm

M6019040  Add to my list
Front panel 4Ux19"

Aluminium
Matt anodised
482.6x3x177mm

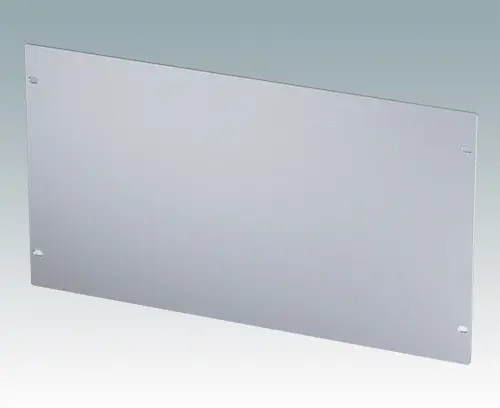

M6019060  Add to my list
Front panel 6Ux19"

Aluminium
Matt anodised
482.6x3x266mm

M6019011

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Version
With ventilation slots

Supply
Panel

M6619344

Modern and highly attractive 19" instrument enclosure for mounting 3U subracks, chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version
With side handles

Supply
Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and black plastic cup washer (x4). Supplied assembled.

M6019060

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply
Panel

M6019040

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply
Panel

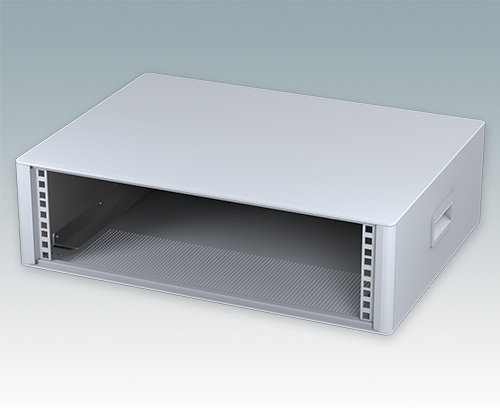

M6619345

Modern and highly attractive 19" instrument enclosure for mounting 3U subracks, chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version
With side handles

Supply
Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

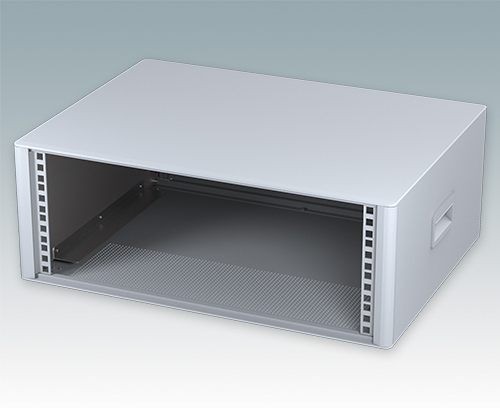

M6619445

Modern and highly attractive 19" instrument enclosure for mounting 4U subracks, chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version
With side handles

Supply
Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6000035

Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply
M6 caged nuts (x4), M6 x 16 mm screw (x4) and light grey plastic cup washer (x4).

M6619645

Modern and highly attractive 19" instrument enclosure for mounting 6U subracks, chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version
With side handles

Supply
Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M5900016

Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply
M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).

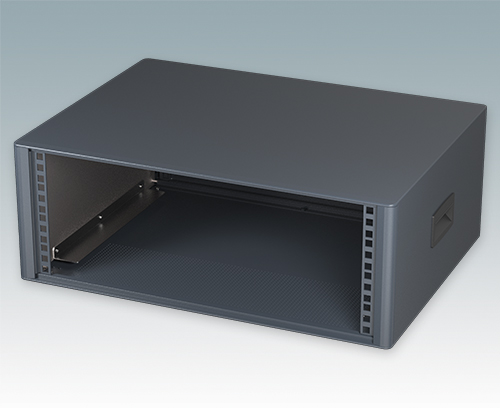

M6619444

Modern and highly attractive 19" instrument enclosure for mounting 4U subracks, chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version
With side handles

Supply
Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and black plastic cup washer (x4). Supplied assembled.

M6019010

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply
Panel

M6019001

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply
Front panel

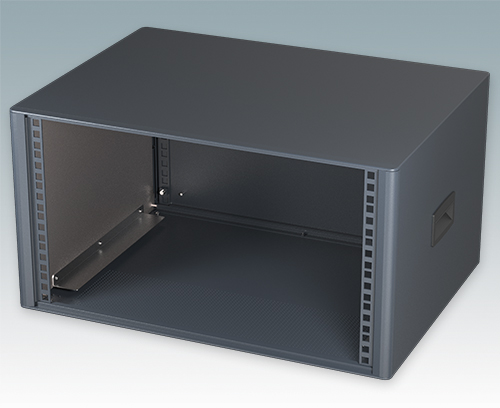

M6619644

Modern and highly attractive 19" instrument enclosure for mounting 6U subracks, chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version
With side handles

Supply
Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and black plastic cup washer (x4). Supplied assembled.
