M6610355

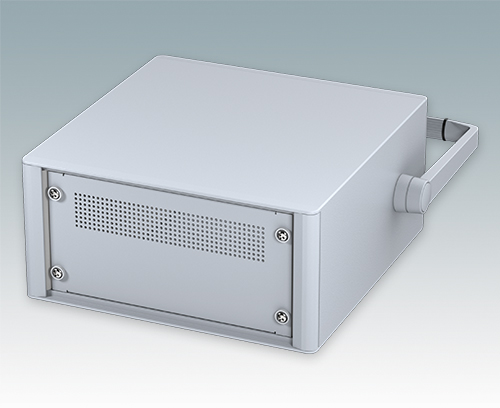

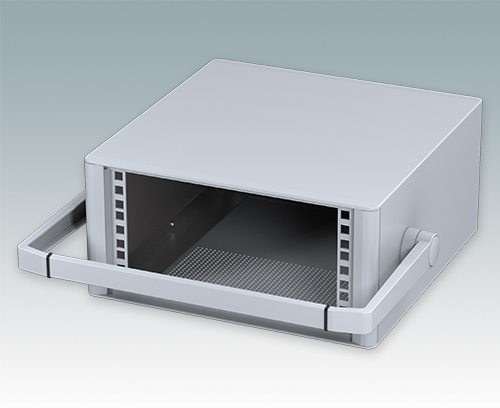

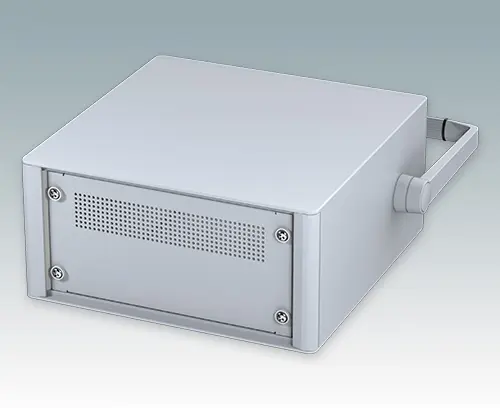

Modern and highly attractive 10.5" instrument enclosure for mounting 3U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, a tilt/swivel carry handle and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

RC103H with handle/bail arm

Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), carry handle kit, ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.
