M6619444 TECHNOMET 19'' 4Ux400mm
M6619444 TECHNOMET 19'' 4Ux400mmM6619444 TECHNOMET 19'' 4Ux400mm

M6619444

TECHNOMET 19'' 4Ux400mm

Modern and highly attractive 19" instrument enclosure for mounting 4U subracks, chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

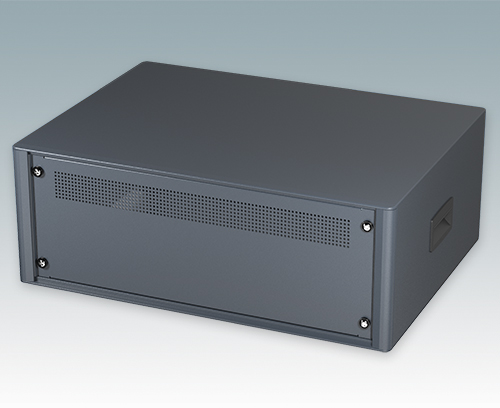

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version

With side handles

Supply

Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and black plastic cup washer (x4). Supplied assembled.


  • Technical Data
  • Drawings /
    Further Information
  • Purchasing Data
Material
Colour
anthracite RAL 7016
Standards
IEC 297-1
REACH compliant
DIN 41494
RoHS compliant
Height
200 mm
Width
540 mm
Depth
400 mm
Height Unit
4 U
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
  • Suitable System Components
NEW PRODUCT
View

Accessory

M5900016  Add to my list
19" mounting kit

black RAL 9005

M6019010  Add to my list
Front panel 1Ux19"

Aluminium
matt anodised
482.6x3x43.6mm

M6019011  Add to my list
Front panel 1Ux19" vented

Aluminium
matt anodised
482.6x3x43.6mm

M6019040  Add to my list
Front panel 4Ux19"

Aluminium
matt anodised
482.6x3x177mm

M6019011

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Version
With ventilation slots

Supply
Panel

M5900016

Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply
M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).

M6019040

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply
Panel

M6019010

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply
Panel
