M6619644 TECHNOMET 19'' 6Ux400mm

M6619644

TECHNOMET 19'' 6Ux400mm

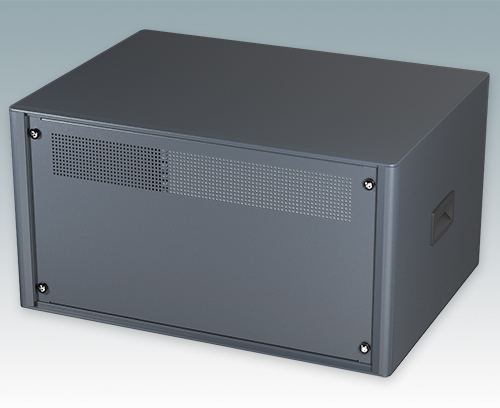

Modern and highly attractive 19" instrument enclosure for mounting 6U subracks, chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version

With side handles

Supply

Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and black plastic cup washer (x4). Supplied assembled.

  • Components/Accessories

Accessory

M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).

Close

M5900016

19" mounting kit Black RAL 9005
M6019010 Front panel 1Ux19"

M6019010

Front panel 1Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

Close

M6019010

Front panel 1Ux19" Aluminium
Matt anodised
482.6x3x43.6mm
M6019011 Front panel 1Ux19" vented

M6019011

Front panel 1Ux19" vented Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Version With ventilation slots

Supply Panel

Close

M6019011

Front panel 1Ux19" vented Aluminium
Matt anodised
482.6x3x43.6mm
M6019060 Front panel 6Ux19"

M6019060

Front panel 6Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

Close

M6019060

Front panel 6Ux19" Aluminium
Matt anodised
482.6x3x266mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
Anthracite RAL 7016
Standards
IEC 297-1
REACH compliant
DIN 41494
RoHS compliant
Height
288.9 mm
Width
540 mm
Depth
400 mm
Height Unit
6 U

Catalogue Pages

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
5.5 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
