M6119335

COMBIMET T 19" 3Ux365mm Open Top

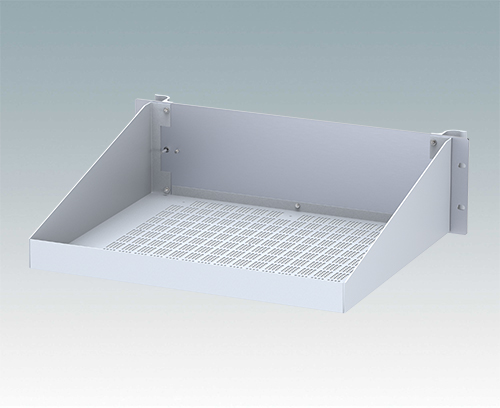

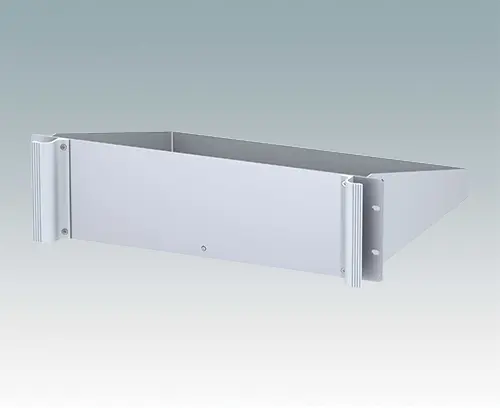

Modern open top 19" rack case in aluminium with an anodised front panel and two ergonomic front panel handles. The ventilated one-piece case body has angled side panels and a short rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.

Version

Open Top

Supply

19" front panel, ventilated case body, 2 handle extrusions, M4 x 10 mm (x4), M3 x 8mm (x1). Supplied fully assembled.

2D PDF Drawing
3D/2D download

Generate Your PDF Datasheet for M6119335

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

Accessory

M5600001 PCB mounting kit

M5600001

PCB mounting kit Kit of ten M3 plastic PCB mounting pillars which can be positioned anywhere in the enclosure. Pillar height 10 mm. Fits to Ø3.2 mm hole in the case panel. Supplied with M3 fixing screws to secure to base panel.

If PCB or mounting plate fixing screws are required please see our screw kit M5600010.

Supply 10 Nylon PCB pillars and 10 M3 x 6 mm countersink fixing screws.

M5600001

PCB mounting kit
product added to your basket

Black RAL 9005
M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm silver screw (x4) and black plastic cup washer (x4).

M5900016

19" mounting kit
product added to your basket
Black RAL 9005
M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light grey plastic cup washer (x4).

M6000035

19" mounting kit
product added to your basket
Light grey RAL 7035
M6200365 Mounting plate (365mm)

M6200365

Mounting plate (365mm) Internal mounting plate kit for COMBIMET 19" rack cases 365 mm deep. For mounting PCBs and electronic assemblies. Mounts to pre-punched holes in case base panels with the nylon pillars and screws supplied.

Supply Mounting plate, M3 nylon screw pillars (x9), M3 x 6 mm screws (x18).

M6200365

Mounting plate (365mm)
product added to your basket

Natural finish
335x330x1.5mm
Material

Colour
Light grey RAL 7035
Standards
IEC 60297-3
REACH compliant
DIN 41494
RoHS compliant
Height
132.5 mm
Width
482.6 mm
Depth
365 mm
Height Unit
3 U
PCB length, base
428 mm
PCB width, base
357 mm

Catalogue Pages

Drawings

3D Models

Weight/1 part
1.95 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
UK

View our customising options and don't forget to request a quotation!
