Front Panels

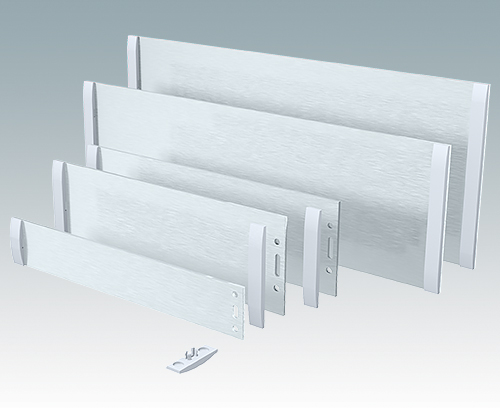

  • Anodised aluminium front panel kits for Unimet/Unimet-Plus enclosures
  • Can be supplied fully customised with holes and digital printing
  • Replacement trims.

Application fields

Accessory front panel kits for Unimet and Unimet-Plus enclosures. Trims hide panel fixing screws and locate labels or keypads.

  • Browse Full List

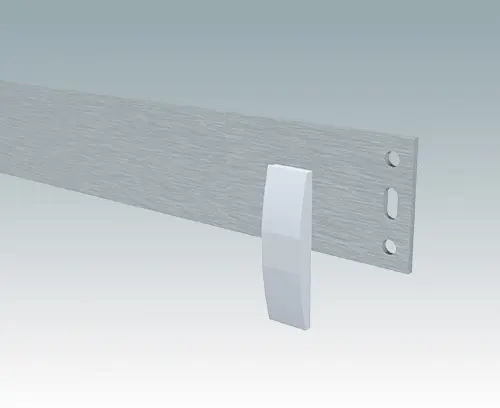

M5700020 Front panel trim 1/1H/1U

M5700020

Front panel trim 1/1H/1U Spare front panel trim for Unimet/Unimet-Plus 1/1H and 1U Mettec 19" cases.

Supply 1 trim

Close

M5700020

Front panel trim 1/1H/1U ABS (UL 94 HB)
Light grey RAL 7035
M5700021 Front panel trim 2/2H/3/3H/2U

M5700021

Front panel trim 2/2H/3/3H/2U

Spare front panel trim for Unimet/Unimet-Plus 2/2H/3/3H and 2U Mettec 19" and Unimet 19" cases.

Supply 1 trim

Close

M5700021

Front panel trim 2/2H/3/3H/2U ABS (UL 94 HB)
Light grey RAL 7035
M5700022 Front panel trim 4/4H

M5700022

Front panel trim 4/4H Spare front panel trim for Unimet/Unimet-Plus 4/4H cases.

Supply 1 trim

Close

M5700022

Front panel trim 4/4H ABS (UL 94 HB)
Light grey RAL 7035
M5700023 Front panel trim 3U

M5700023

Front panel trim 3U Spare front panel trim for 3U Mettec 19" and Unimet 19" cases.

Supply 1 trim

Close

M5700023

Front panel trim 3U ABS (UL 94 HB)
Light grey RAL 7035
M5700024 Front panel trim 5/5H/6/6H

M5700024

Front panel trim 5/5H/6/6H Spare front panel trim for Unimet/Unimet-Plus 5/5H/6/6H cases.

Supply 1 trim

Close

M5700024

Front panel trim 5/5H/6/6H ABS (UL 94 HB)
Light grey RAL 7035
M5700607 Front panel kit (1/1H)

M5700607

Front panel kit (1/1H) Front panel kit for Unimet 1/1H and Unimet-Plus 1/1H enclosures. Snap-in trims hide the assembly screws and act as a guide for a membrane keypad or product label.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5700607

Front panel kit (1/1H) Aluminium
Matt anodised
199.5x2x33.6mm
M5700608 Front panel kit (2/2H)

M5700608

Front panel kit (2/2H)

Front panel kit for Unimet 2/2H and Unimet-Plus 2/2H enclosures. Snap-in trims hide the assembly screws and act as a guide for a membrane keypad or product label.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5700608

Front panel kit (2/2H) Aluminium
Matt anodised
199.5x2x65.1mm

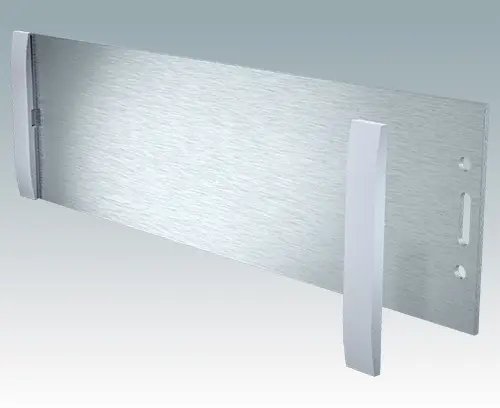

M5700613 Front panel kit (3/3H)

M5700613

Front panel kit (3/3H)

Front panel kit for Unimet 3/3H and Unimet-Plus 3/3H enclosures. Snap-in trims hide the assembly screws and act as a guide for a membrane keypad or product label.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5700613

Front panel kit (3/3H) Aluminium
Matt anodised
219.5x2x65.1mm
M5700616 Front panel kit (5/5H)

M5700616

Front panel kit (5/5H)

Front panel kit for Unimet 5/5H and Unimet-Plus 5/5H enclosures. Snap-in trims hide the assembly screws and act as a guide for a membrane keypad or product label.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5700616

Front panel kit (5/5H) Aluminium
Matt anodised
219.5x2x130.1mm
M5700620 Front panel kit (4/4H)

M5700620

Front panel kit (4/4H) Front panel kit for Unimet 4/4H and Unimet-Plus 4/4H enclosures. Snap-in trims hide the assembly screws and act as a guide for a membrane keypad or product label.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5700620

Front panel kit (4/4H) Aluminium
Matt anodised
319.5x2x100.1mm
M5700621 Front panel kit (6/6H)

M5700621

Front panel kit (6/6H) Front panel kit for Unimet 6/6H and Unimet-Plus 6/6H enclosures. Snap-in trims hide the assembly screws and act as a guide for a membrane keypad or product label.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5700621

Front panel kit (6/6H) Aluminium
Matt anodised
319.5x2x130.1mm
M5900010 Front panel kit (1U)

M5900010

Front panel kit (1U) Anodised aluminium front panel kit for 1U Mettec 19" cases. Supplied with two snap-in ABS trims which hide the assembly screws and act as a guide for membrane keypads or product labels.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5900010

Front panel kit (1U) Aluminium
Matt anodised
392.5x2x33.6mm
M5900020 Front panel kit (2U)

M5900020

Front panel kit (2U) Anodised aluminium front panel kit for 2U Mettec and Unimet 19" cases. Supplied with two snap-in ABS trims which hide the assembly screws and act as a guide for membrane keypads or product labels.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5900020

Front panel kit (2U) Aluminium
Matt anodised
392.5x2x67.1mm
M5900030 Front panel kit (3U)

M5900030

Front panel kit (3U) Anodised aluminium front panel kit for 3U Mettec and Unimet 19" cases. Supplied with two snap-in ABS trims which hide the assembly screws and act as a guide for membrane keypads or product labels.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5900030

Front panel kit (3U) Aluminium
Matt anodised
392.5x2x111mm
