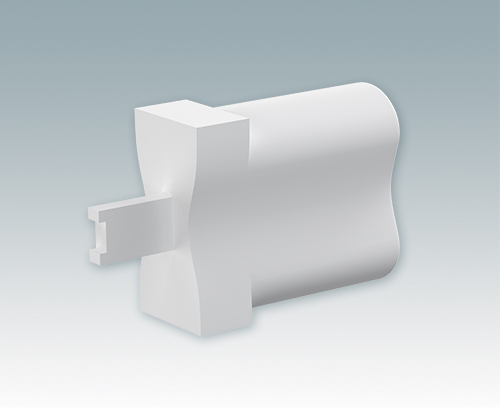

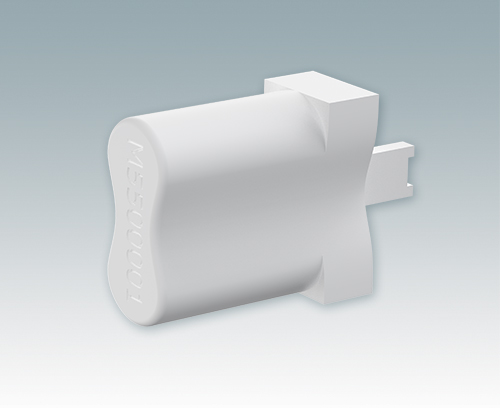

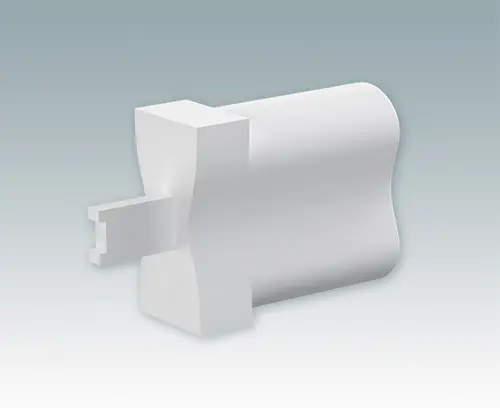

M5500001 Unicase Assembly Tool

M5500001

Unicase Assembly Tool

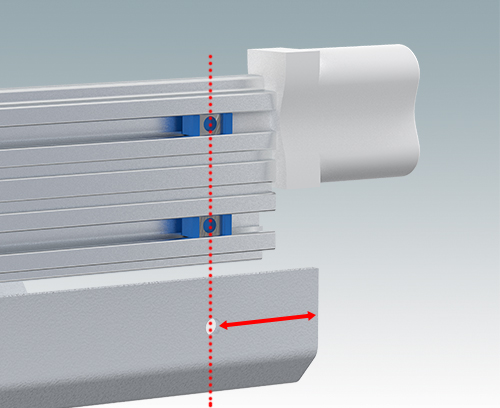

This assembly tool locates the blue threaded nut holders in the correct position in the UNICASE extrusions profiles. The nut holders are then aligned perfectly with the cover assembly screws every time. This improves assembly time of the enclosures, especially for regular production runs. The tool is 3D printed in tough PA2200 (Nylon).

Supply

Assembly tool (x1)

  • To be used for
M5501110 UNICASE 1

M5501110

UNICASE 1 Attractive and highly versatile aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).
