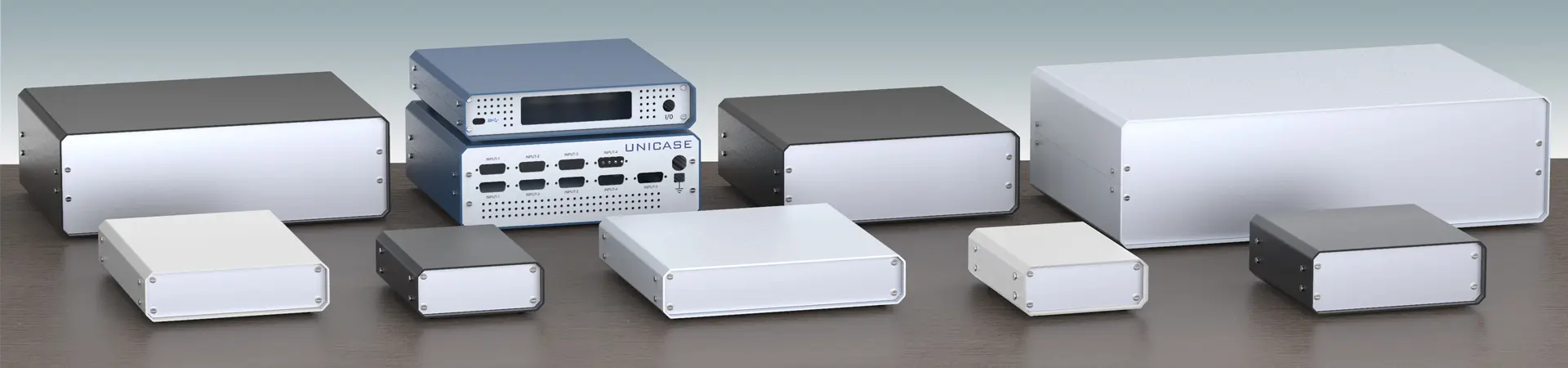

Unicase

Versatile design ideal for customising

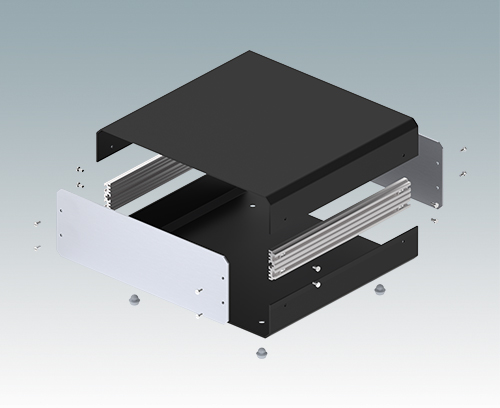

  • Attractive and practical instrument enclosures with simple and fast assembly

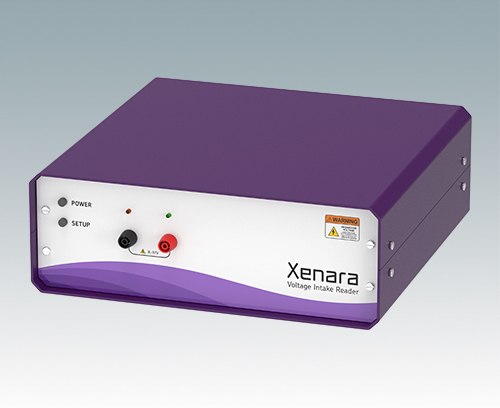

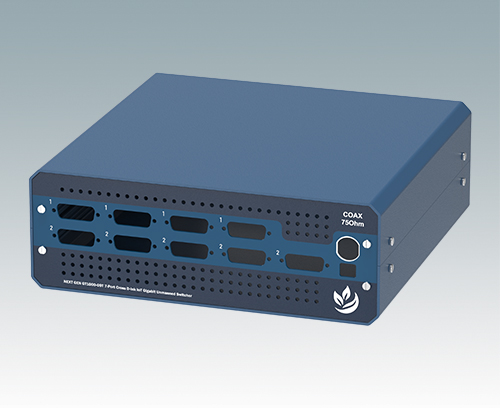

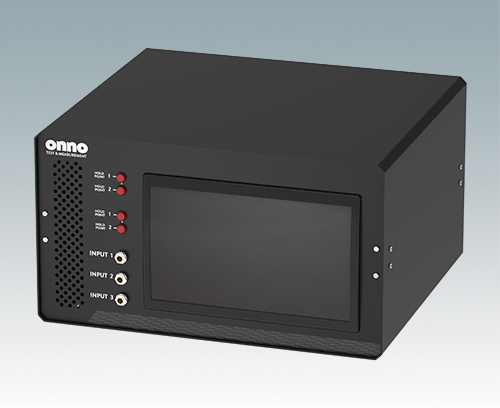

  • Easily customised to your exact specifications

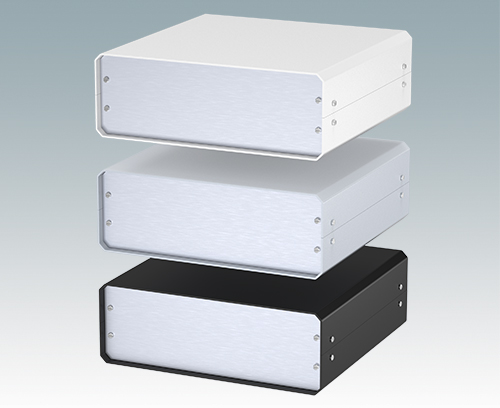

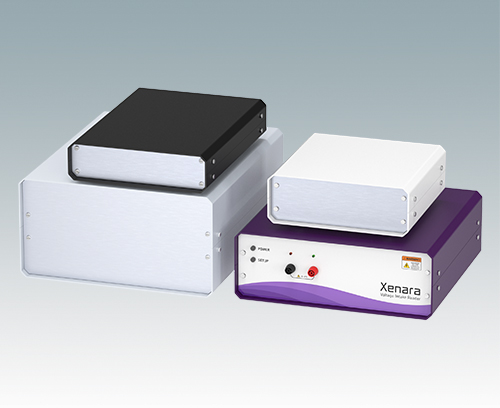

  • Ten standard sizes available in light grey and black

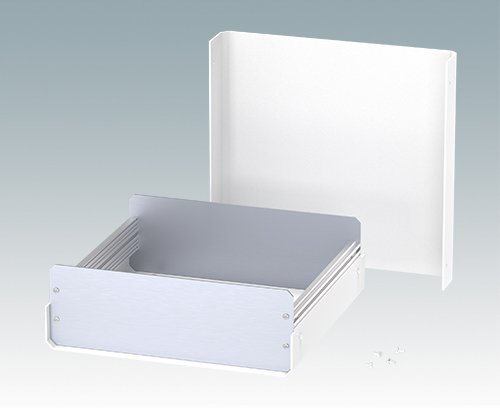

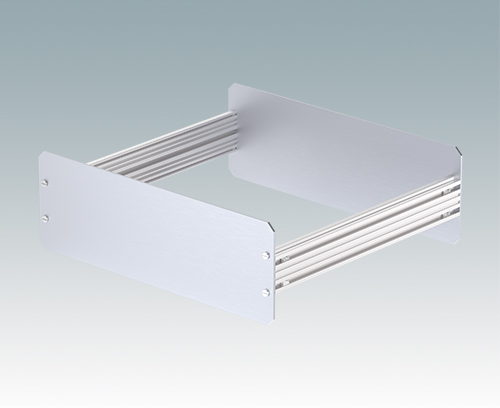

  • Removable internal chassis
  • PCB guide rails in the assembly extrusions
  • Anodised aluminium front and rear panels included
  • Front panels recessed to protect controls

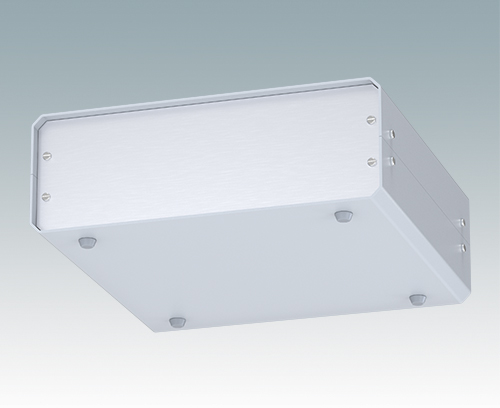

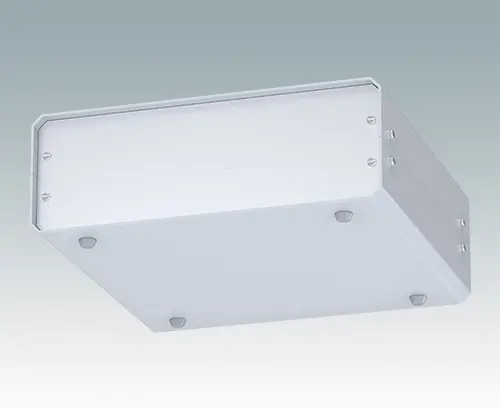

  • Four push-in non-slip rubber feet included.

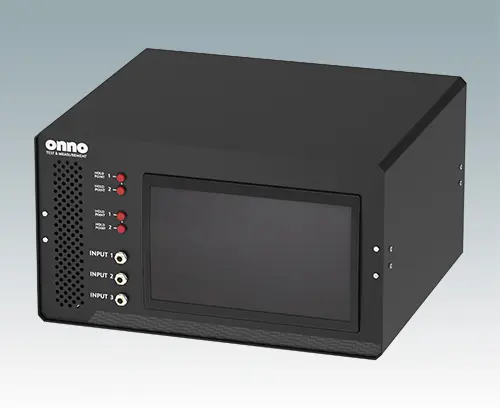

Order your own fully customised version learn more here >>

  • Video

Application fields

Simple universal enclosures for measuring and control technology, feedback control, peripheral devices and interfaces, switchboxes, modems, medical field and laboratory technology.
  • Browse Full List
  • Accessories
  • Catalogue Documents
AltText

M5501110

UNICASE 1 Attractive and highly versatile aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5501110

UNICASE 1
product added to your basket
Aluminium
Light grey RAL 7035
185x180x65mm
AltText

M5501119

UNICASE 1 Attractive and highly versatile aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5501119

UNICASE 1
product added to your basket
Aluminium
Black RAL 9005
185x180x65mm
AltText

M5502110

UNICASE 2 Attractive and highly versatile aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5502110

UNICASE 2
product added to your basket
Aluminium
Light grey RAL 7035
260x250x90mm
AltText

M5502119

UNICASE 2 Attractive and highly versatile aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5502119

UNICASE 2
product added to your basket
Aluminium
Black RAL 9005
260x250x90mm
AltText

M5503110

UNICASE 3 Attractive and highly versatile aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5503110

UNICASE 3
product added to your basket
Aluminium
Light grey RAL 7035
350x250x110mm
AltText

M5503119

UNICASE 3 Attractive and highly versatile aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5503119

UNICASE 3
product added to your basket
Aluminium
Black RAL 9005
350x250x110mm
AltText

M5504110

UNICASE 4 Attractive and highly versatile aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5504110

UNICASE 4
product added to your basket
Aluminium
Light grey RAL 7035
261x300x134.5mm
AltText

M5504119

UNICASE 4 Attractive and highly versatile aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5504119

UNICASE 4
product added to your basket
Aluminium
Black RAL 9005
261x300x134.5mm
AltText

M5505110

UNICASE 5 Attractive and highly versatile aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5505110

UNICASE 5
product added to your basket
Aluminium
Light grey RAL 7035
367x300x134.5mm
AltText

M5505119

UNICASE 5 Attractive and highly versatile aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5505119

UNICASE 5
product added to your basket
Aluminium
Black RAL 9005
367x300x134.5mm
AltText

M5506110

UNICASE 6 Attractive and highly versatile aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5506110

UNICASE 6
product added to your basket
Aluminium
Light grey RAL 7035
474x300x134.5mm
AltText

M5506119

UNICASE 6 Attractive and highly versatile aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5506119

UNICASE 6
product added to your basket
Aluminium
Black RAL 9005
474x300x134.5mm
AltText

M5511110

UNICASE SL1 Attractive and highly versatile slim aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5511110

UNICASE SL1
product added to your basket
Aluminium
Light grey RAL 7035
130x180x50mm
AltText

M5511119

UNICASE SL1 Attractive and highly versatile slim aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5511119

UNICASE SL1
product added to your basket
Aluminium
Black RAL 9005
130x180x50mm
AltText

M5512110

UNICASE SL2 Attractive and highly versatile slim aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5512110

UNICASE SL2
product added to your basket
Aluminium
Light grey RAL 7035
185x250x50mm
AltText

M5512119

UNICASE SL2 Attractive and highly versatile slim aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5512119

UNICASE SL2
product added to your basket
Aluminium
Black RAL 9005
185x250x50mm
AltText

M5513110

UNICASE SL3 Attractive and highly versatile slim aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5513110

UNICASE SL3
product added to your basket
Aluminium
Light grey RAL 7035
250x250x50mm
AltText

M5513119

UNICASE SL3 Attractive and highly versatile slim aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5513119

UNICASE SL3
product added to your basket
Aluminium
Black RAL 9005
250x250x50mm
AltText

M5514110

UNICASE SL4 Attractive and highly versatile slim aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5514110

UNICASE SL4
product added to your basket
Aluminium
Light grey RAL 7035
250x300x50mm
AltText

M5514119

UNICASE SL4 Attractive and highly versatile slim aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5514119

UNICASE SL4
product added to your basket
Aluminium
Black RAL 9005
250x300x50mm
AltText

M5500001

Unicase Assembly Tool

This assembly tool locates the blue threaded nut holders in the correct position in the UNICASE extrusions profiles. The nut holders are then aligned perfectly with the cover assembly screws every time. This improves assembly time of the enclosures, especially for regular production runs. The tool is 3D printed in tough PA2200 (Nylon).

Supply Assembly tool (x1)

Close

M5500001

Unicase Assembly Tool
product added to your basket
PA 2200 (Polyamide)
White
44x13x27mm
AltText

M5600010

PCB/Panel Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customised with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

Close

M5600010

PCB/Panel Fixing Screws, M3
product added to your basket
Steel
Zinc coated
6mm
