M5117225 MINIMET 8

M5117225

MINIMET 8

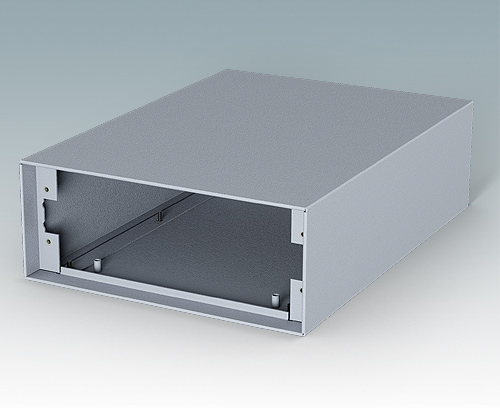

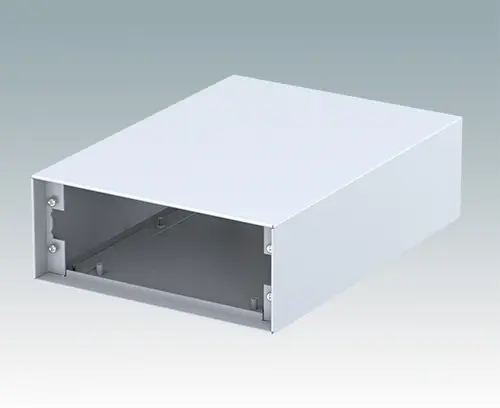

Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply

Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

  • Components/Accessories

Accessory

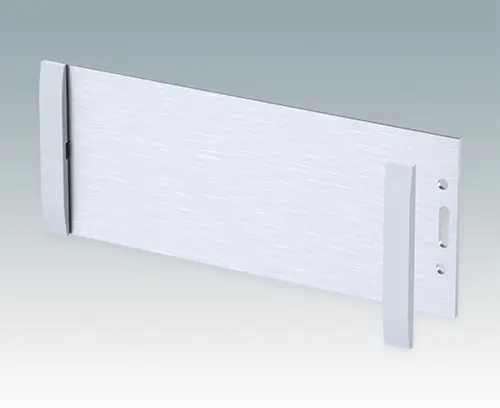

M5100560 Front/rear panel kit AN (size 6 & 8)

M5100560

Front/rear panel kit AN (size 6 & 8) Anodised aluminium front/rear panel for MINIMET size 6 and 8 cases

Supply Anodised panel, 2 ABS trims (panel fixings supplied with case).

Close

M5100560

Front/rear panel kit AN (size 6 & 8)
product added to your list
Aluminium
Matt anodised
169.5x2x65.1mm
M5100565 Front/rear panel PN (size 6 & 8)

M5100565

Front/rear panel PN (size 6 & 8) Painted aluminium front/rear panel for MINIMET size 6 and 8 cases

Supply Painted panel (panel fixings supplied with case).

Close

M5100565

Front/rear panel PN (size 6 & 8)
product added to your list
Aluminium
Light grey RAL 7035
169.5x1.5x65.1mm
M5600010 PCB/Panel Fixing Screws, M3

M5600010

PCB/Panel Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customised with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

Close

M5600010

PCB/Panel Fixing Screws, M3
product added to your list
Steel
Zinc coated
6mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
Light grey RAL 7035
Standards
REACH compliant
RoHS compliant
Width
174.5 mm
Depth
240 mm
Height
70 mm
PCB length, base
216 mm
PCB width, base
128 mm

Catalogue Pages

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0.44 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
