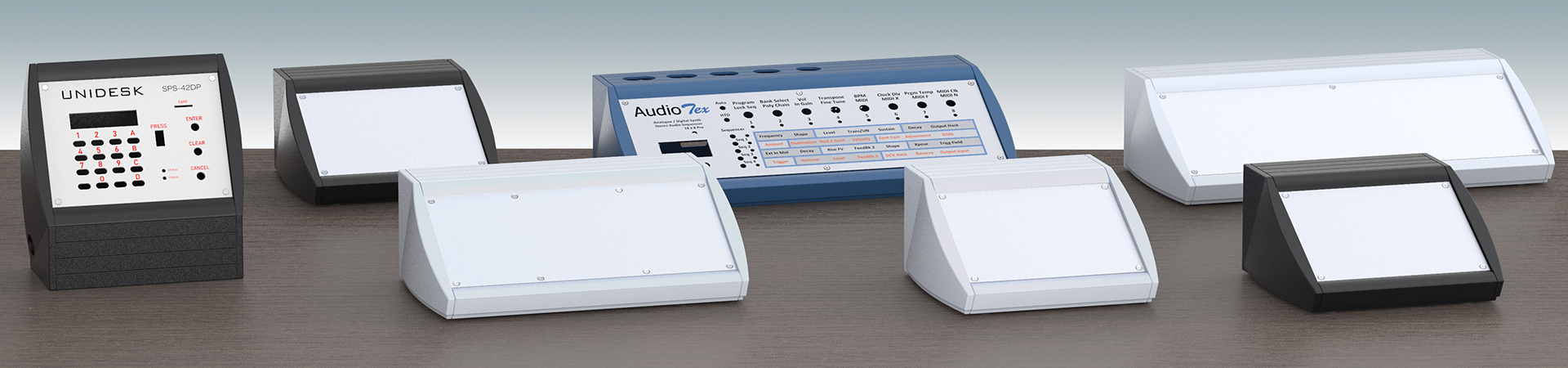

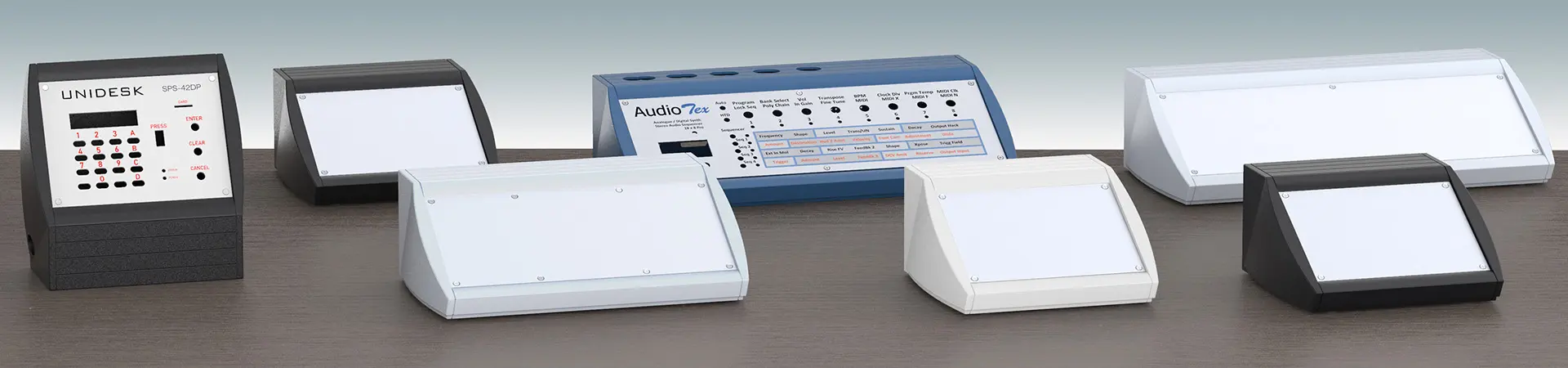

Unidesk

Sloping front terminal enclosures

  • Ergonomic aluminium instrument enclosures for desktop and wall mounted applications

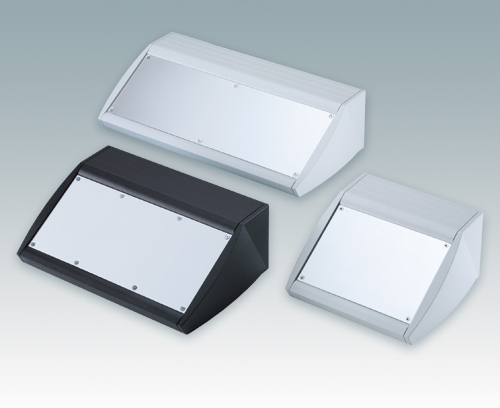

  • Very robust design in three standard sizes and three colours: traffic white, light grey and black

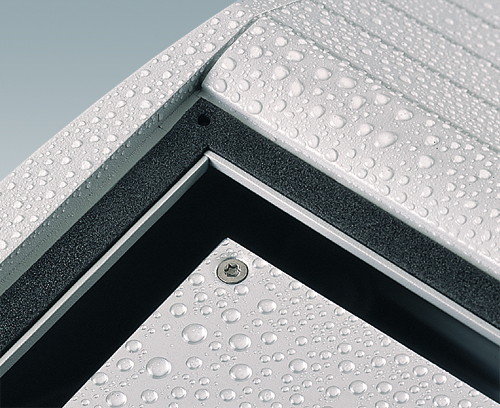

  • Optional IP 54 models (VDE tested) with gaskets for the front and base panels

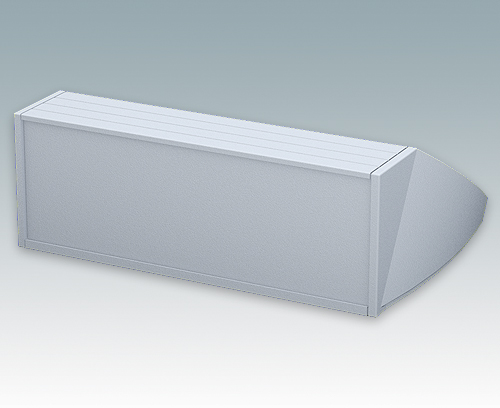

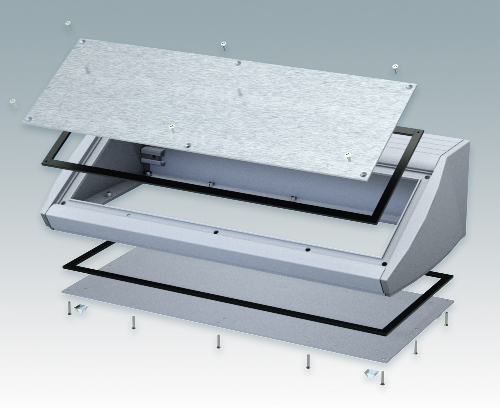

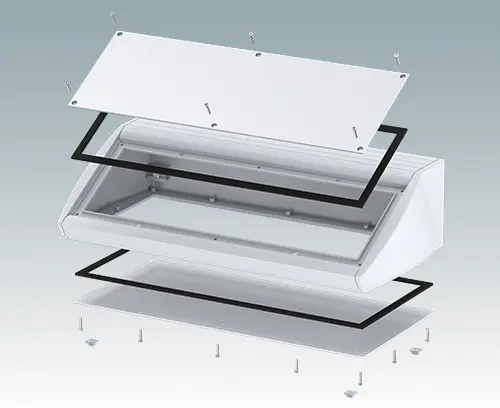

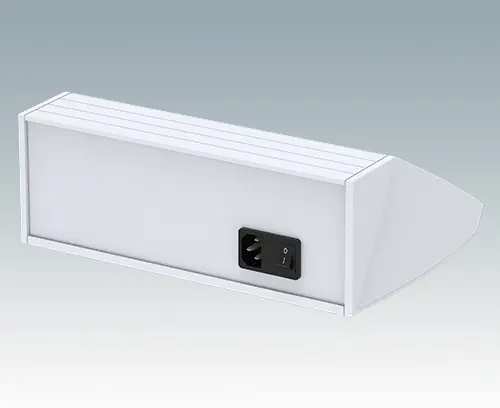

  • Pre-assembled aluminium case body with flat rear panel for connectors, switches, power inlets etc.
  • Stainless steel M3 Torx® T10 and MS M3 Pozidriv fixings supplied
  • Four non-slip rubber feet included

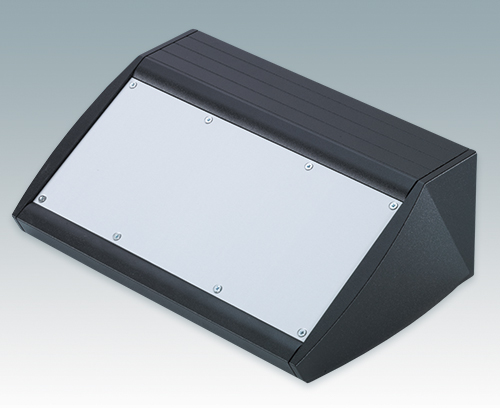

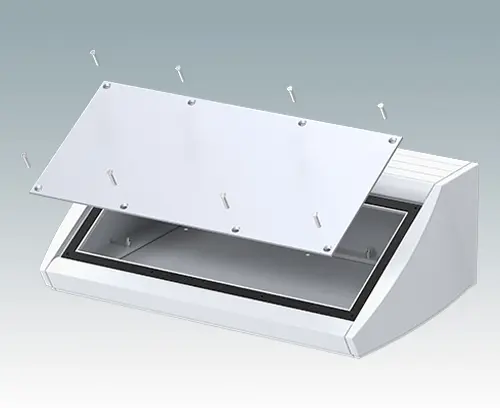

  • Accessory front panel is recessed for a membrane keypad

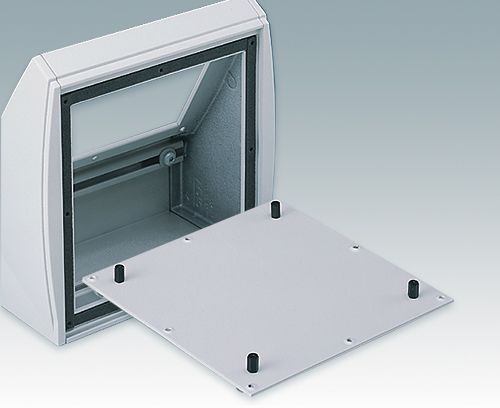

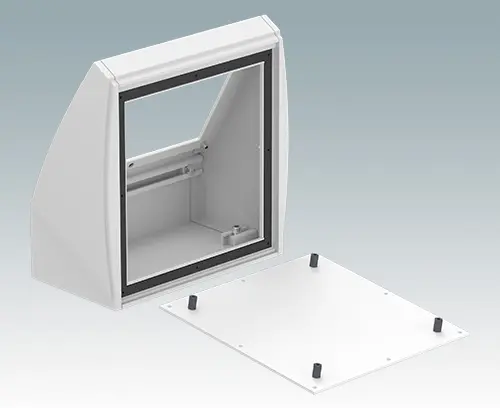

  • Pre-punched PCB fixing points in base
  • For IP 54 protection accessory PCB pillars are required

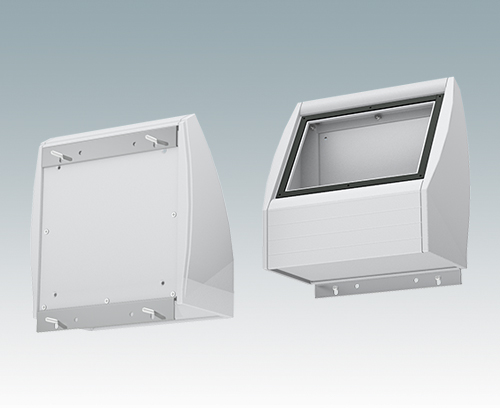

  • Accessory wall mounting kit.

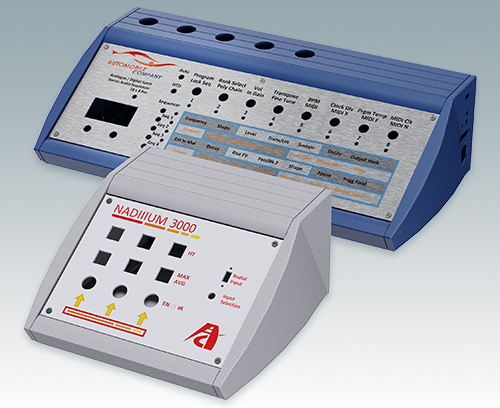

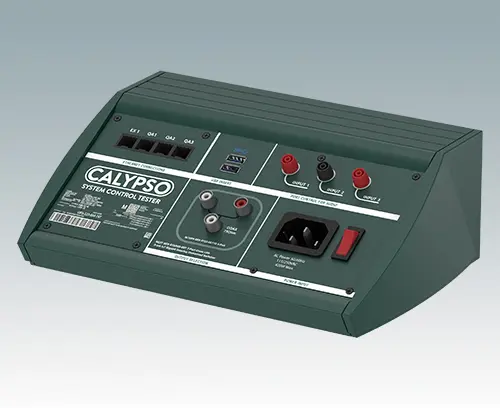

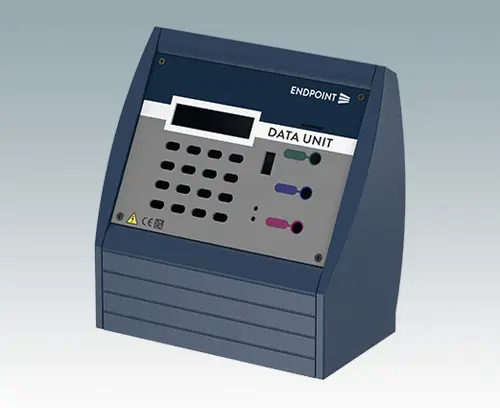

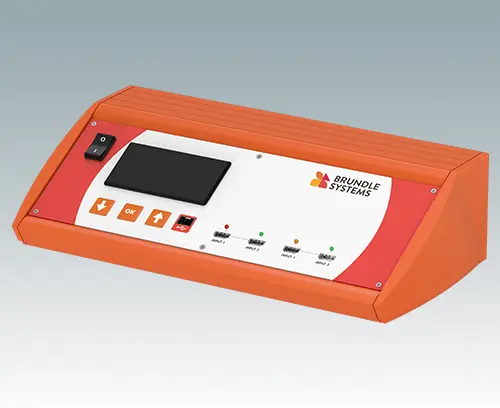

Order your own fully customised version learn more here >>

Generate PDF

We need your consent to load the video service (Vimeo).

We use a third-party service to embed our video content (Vimeo). This service may collect data about your activities. Please read our privacy policy and consent to the use of the service to watch this video.

Application Fields

These robust and attractive desktop enclosures are designed for housing modern office systems, point-of-sale terminals, medical devices, industrial control equipment, security units, machine controllers and many other types of electronics and electro-technical terminals.

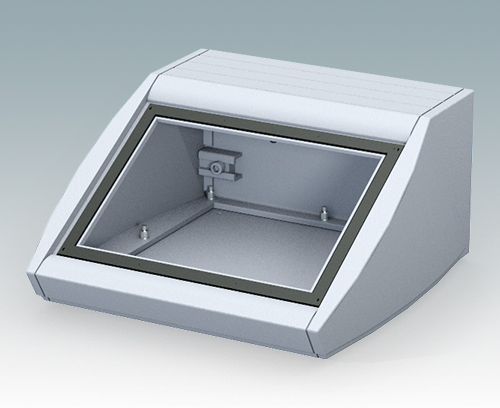

M5320105 UNIDESK M200 IP 54

M5320105

UNIDESK M200 IP 54 Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pre-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.

Version With sealing gaskets (IP 54)

Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet, M3 x 12 mm (x20) and M3 x 12 mm T10 (x20). Supplied assembled.

M5320105

UNIDESK M200 IP 54
product added to your basket

Light grey RAL 7035
200x200x102mm
M5320106 UNIDESK M200 IP 54

M5320106

UNIDESK M200 IP 54 Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pre-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.

Version With sealing gaskets (IP 54)

Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet, M3 x 12 mm (x20) and M3 x 12 mm T10 (x20). Supplied assembled.

M5320106

UNIDESK M200 IP 54
product added to your basket

Traffic white RAL 9016
200x200x102mm

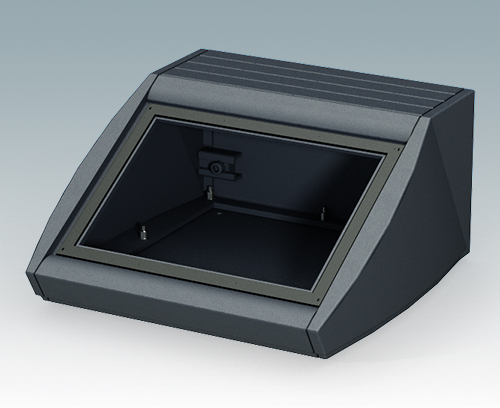

M5320109 UNIDESK M200 IP 54

M5320109

UNIDESK M200 IP 54 Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pre-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.

Version With sealing gaskets (IP 54)

Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.

M5320109

UNIDESK M200 IP 54
product added to your basket

Black RAL 9005
200x200x102mm

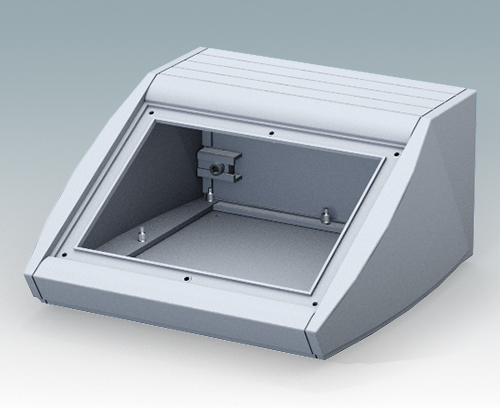

M5320115 UNIDESK M200

M5320115

UNIDESK M200 Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pre-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels.  Recessed rear face for mounting switches and power and data connections.

Version Without sealing gaskets

Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.

M5320115

UNIDESK M200
product added to your basket

Light grey RAL 7035
200x200x102mm
M5320116 UNIDESK M200

M5320116

UNIDESK M200 Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pre-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels.  Recessed rear face for mounting switches and power and data connections.

Version Without sealing gaskets

Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.

M5320116

UNIDESK M200
product added to your basket

Traffic white RAL 9016
200x200x102mm
M5320119 UNIDESK M200

M5320119

UNIDESK M200 Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pre-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels.  Recessed rear face for mounting switches and power and data connections.

Version Without sealing gaskets

Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.

M5320119

UNIDESK M200
product added to your basket

Black RAL 9005
200x200x102mm

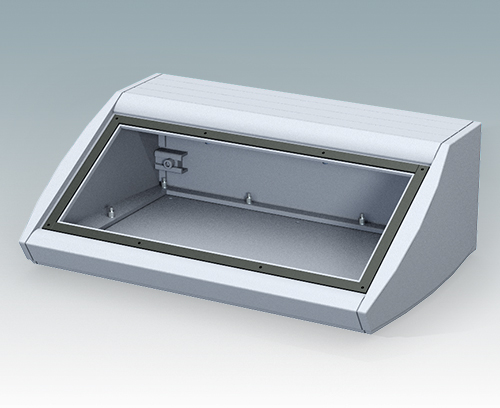

M5330105 UNIDESK M300 IP 54

M5330105

UNIDESK M300 IP 54 Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.

Version With sealing gaskets (IP 54)

Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.

M5330105

UNIDESK M300 IP 54
product added to your basket

Light grey RAL 7035
300x200x102mm
M5330106 UNIDESK M300 IP 54

M5330106

UNIDESK M300 IP 54 Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pre-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.

Version With sealing gaskets (IP 54)

Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.

M5330106

UNIDESK M300 IP 54
product added to your basket

Traffic white RAL 9016
300x200x102mm

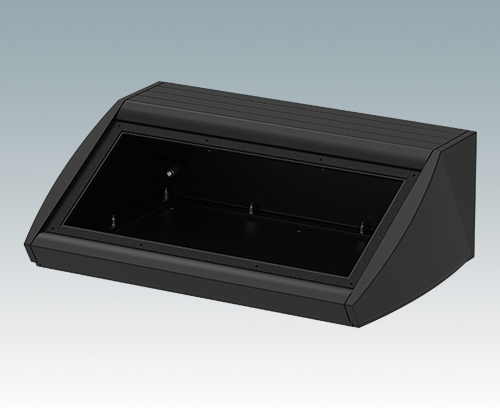

M5330109 UNIDESK M300 IP 54

M5330109

UNIDESK M300 IP 54 Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.

Version With sealing gaskets (IP 54)

Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.

M5330109

UNIDESK M300 IP 54
product added to your basket

Black RAL 9005
300x200x102mm

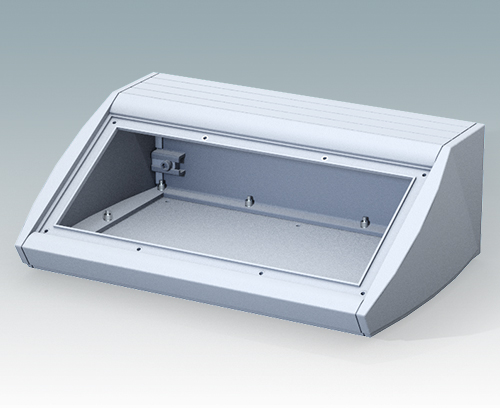

M5330115 UNIDESK M300

M5330115

UNIDESK M300 Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pre-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels.  Recessed rear face for mounting switches and power and data connections.

Version Without sealing gaskets

Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.

M5330115

UNIDESK M300
product added to your basket

Light grey RAL 7035
300x200x102mm
M5330116 UNIDESK M300

M5330116

UNIDESK M300 Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pre-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels.  Recessed rear face for mounting switches and power and data connections.

Version Without sealing gaskets

Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.

M5330116

UNIDESK M300
product added to your basket

Traffic white RAL 9016
300x200x102mm

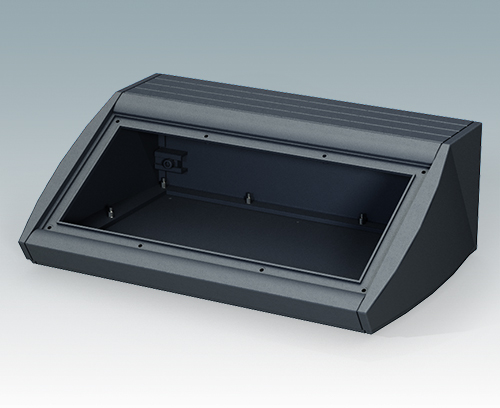

M5330119 UNIDESK M300

M5330119

UNIDESK M300 Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels.  Recessed rear face for mounting switches and power and data connections.

Version Without sealing gaskets

Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.

M5330119

UNIDESK M300
product added to your basket

Black RAL 9005
300x200x102mm

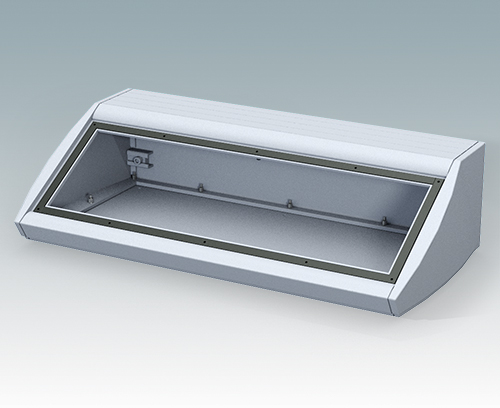

M5340105 UNIDESK M400 IP 54

M5340105

UNIDESK M400 IP 54 Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.

Version With sealing gaskets (IP 54)

Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.

M5340105

UNIDESK M400 IP 54
product added to your basket

Light grey RAL 7035
400x200x102mm
M5340106 UNIDESK M400 IP 54

M5340106

UNIDESK M400 IP 54 Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.

Version With sealing gaskets (IP 54)

Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.

M5340106

UNIDESK M400 IP 54
product added to your basket

Traffic white RAL 9016
400x200x102mm

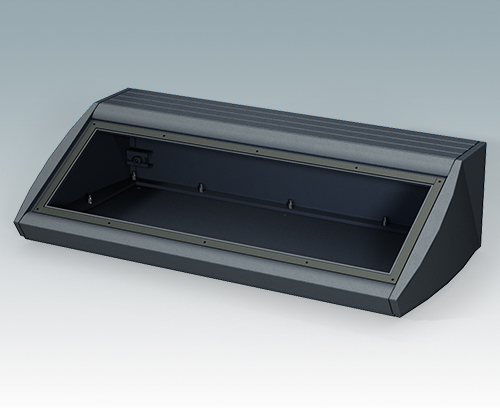

M5340109 UNIDESK M400 IP 54

M5340109

UNIDESK M400 IP 54 Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.

Version With sealing gaskets (IP 54)

Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.

M5340109

UNIDESK M400 IP 54
product added to your basket

Black RAL 9005
400x200x102mm

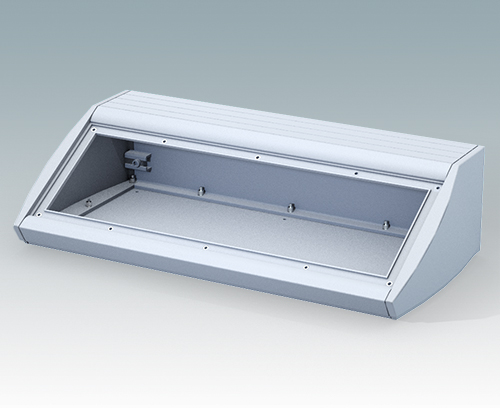

M5340115 UNIDESK M400

M5340115

UNIDESK M400 Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels.  Recessed rear face for mounting switches and power and data connections.

Version Without sealing gaskets

Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.

M5340115

UNIDESK M400
product added to your basket

Light grey RAL 7035
400x200x102mm
M5340116 UNIDESK M400

M5340116

UNIDESK M400 Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels.  Recessed rear face for mounting switches and power and data connections.

Version Without sealing gaskets

Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.

M5340116

UNIDESK M400
product added to your basket

Traffic white RAL 9016
400x200x102mm

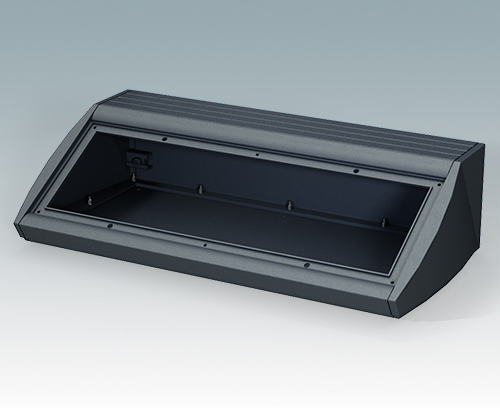

M5340119 UNIDESK M400

M5340119

UNIDESK M400 Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels.  Recessed rear face for mounting switches and power and data connections.

Version Without sealing gaskets

Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.

M5340119

UNIDESK M400
product added to your basket

Black RAL 9005
400x200x102mm

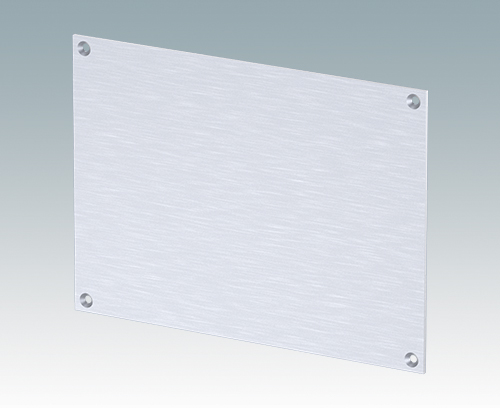

M5301502 Front panel M200

M5301502

Front panel M200 Anodised aluminium front panel for UNIDESK M200 cases

Supply Panel (fixing screws supplied with cases).

M5301502

Front panel M200
product added to your basket

Matt anodised
170x2x123mm

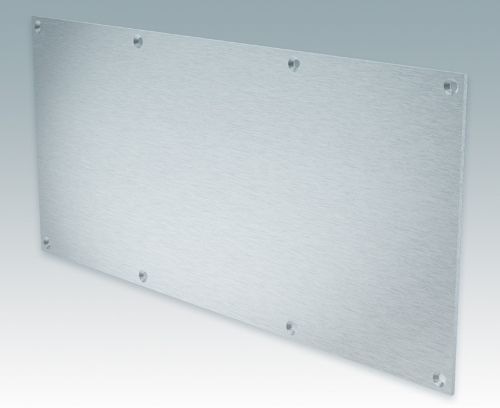

M5301503 Front panel M300

M5301503

Front panel M300 Anodised aluminium front panel for UNIDESK M300 cases

Supply Panel (fixing screws supplied with cases).

M5301503

Front panel M300
product added to your basket

Matt anodised
270x2x123mm

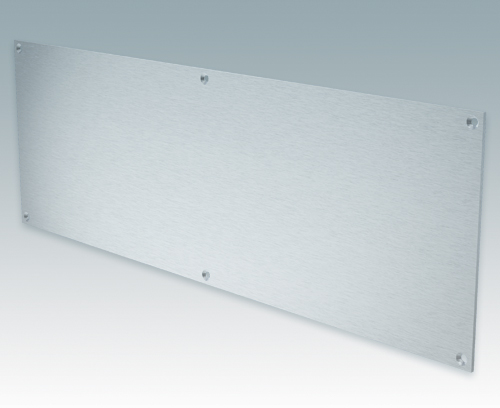

M5301504 Front panel M400

M5301504

Front panel M400 Anodised aluminium front panel for UNIDESK M400 cases

Supply Panel (fixing screws supplied with cases).

M5301504

Front panel M400
product added to your basket

Matt anodised
370x2x123mm

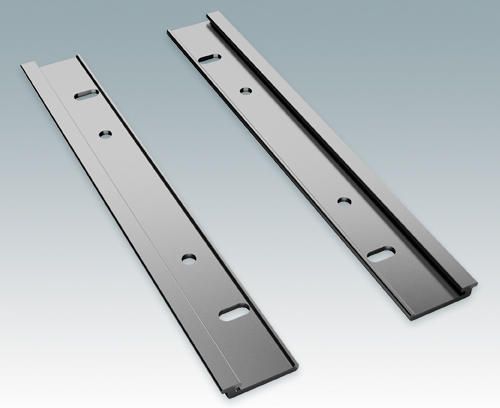

M5302212 Wall mount kit M200

M5302212

Wall mount kit M200 Wall mounting kit for UNIDESK M200 cases. The two extrusion profiles fit into grooves in the rear or underside of the case. This allows the UNIDESK to be mounting vertically or horizontally on a wall or other surface. The profiles have optional fixing holes to allow for easier adjustment when mounting.

Supply 2 anodised extrusion profiles

M5302212

Wall mount kit M200
product added to your basket

Matt anodised

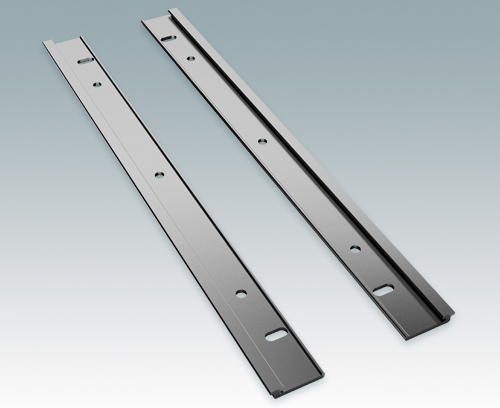

M5302213 Wall mount kit M300

M5302213

Wall mount kit M300 Wall mounting kit for UNIDESK M300 cases. The two extrusion profiles fit into grooves in the rear or underside of the case. This allows the UNIDESK to be mounting vertically or horizontally on a wall or other surface. The profiles have optional fixing holes to allow for easier adjustment when mounting.

Supply 2 anodised extrusion profiles

M5302213

Wall mount kit M300
product added to your basket

Matt anodised

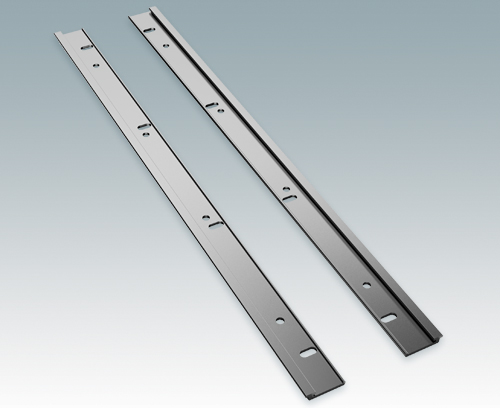

M5302214 Wall mount kit M400

M5302214

Wall mount kit M400 Wall mounting kit for UNIDESK M400 cases. The two extrusion profiles fit into grooves in the rear or underside of the case. This allows the UNIDESK to be mounting vertically or horizontally on a wall or other surface. The profiles have optional fixing holes to allow for easier adjustment when mounting.

Supply 2 anodised extrusion profiles

M5302214

Wall mount kit M400
product added to your basket

Matt anodised
M5600001 PCB mounting kit

M5600001

PCB mounting kit Kit of ten M3 plastic PCB mounting pillars which can be positioned anywhere in the enclosure. Pillar height 10 mm. Fits to Ø3.2 mm hole in the case panel. Supplied with M3 fixing screws to secure to base panel.

If PCB or mounting plate fixing screws are required please see our screw kit M5600010.

Supply 10 Nylon PCB pillars and 10 M3 x 6 mm countersink fixing screws.

M5600001

PCB mounting kit
product added to your basket

Black RAL 9005
M5600010 PCB/Panel Fixing Screws, M3

M5600010

PCB/Panel Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customised with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

M5600010

PCB/Panel Fixing Screws, M3
product added to your basket

Zinc coated
6mm
