M5825105

Datamet S

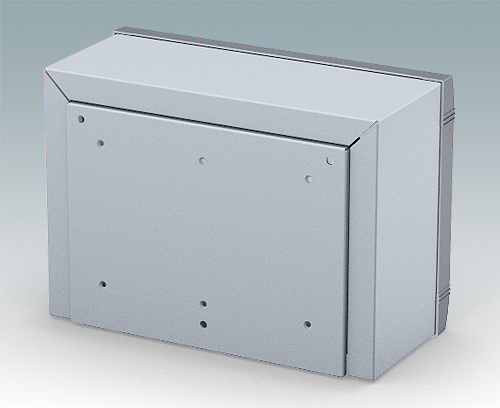

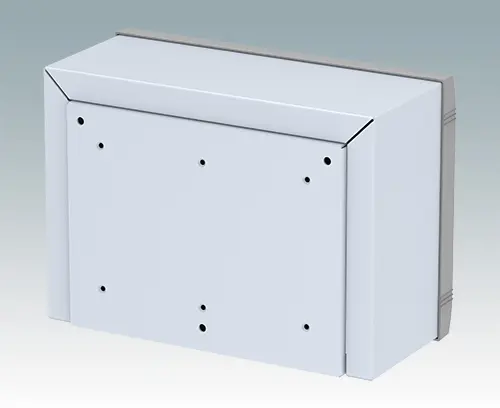

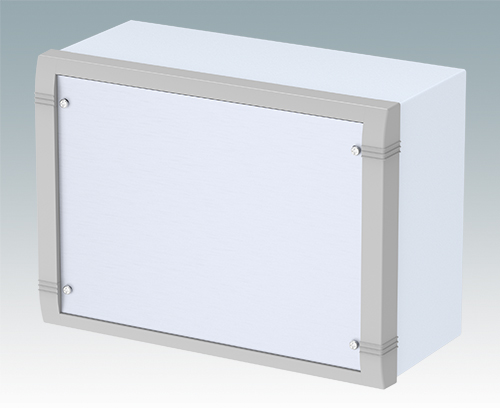

Modern aluminium wall mount enclosure for indoor electronics equipment. The enclosure provides total access to the electronics during installation on the wall. Stylish design with die cast front bezel, top cover and 'L' shape rear section. Order front panels separately.

Supply

Front bezel, top panel, L shaped rear section, M4 x 16 mm (x4), M4 x 6 mm (x2) and M3 x 8 mm (x4).

  • Components/Accessories

Accessory

AltText

M5600001

PCB mounting kit Kit of ten M3 plastic PCB mounting pillars which can be positioned anywhere in the enclosure. Pillar height 10 mm. Fits to Ø3.2 mm hole in the case panel. Supplied with M3 fixing screws to secure to base panel.

If PCB or mounting plate fixing screws are required please see our screw kit M5600010.

Supply 10 Nylon PCB pillars and 10 M3 x 6 mm countersink fixing screws.

Close

M5600001

PCB mounting kit
product added to your basket
PA 6
Black RAL 9005
AltText

M5600010

PCB/Panel Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customised with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

Close

M5600010

PCB/Panel Fixing Screws, M3
product added to your basket
Steel
Zinc coated
6mm
AltText

M5800025

Front panel S Anodised aluminium front panel for DATAMET S enclosures.

Supply Front panel (fixings supplied with the cases).

Close

M5800025

Front panel S
product added to your basket
Aluminium
Matt anodised
220x2x159.5mm
AltText

M5804125

Mounting plate kit S Internal mounting plate kit for DATAMET S enclosures. For mounting PCBs and electronic assemblies. The mounting plate is fitted to pre-punched holes in the enclosure rear panel with the nylon pillars and screws supplied in the kit.

Supply Mounting plate, M3 x 10 mm threaded pillar (x6) and M3 x 6 mm fixing screw (x12).

Close

M5804125

Mounting plate kit S
product added to your basket
Aluminium
Matt anodised
175x120x1.5mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
Light grey/window grey RAL 7035/7040
Standards
REACH compliant
RoHS compliant
Width
250 mm
Height
180 mm
Depth
116.5 mm
PCB length, base
120 mm
PCB width, base
175 mm

Catalogue Pages

Drawings

3D Models

3D PDF View (Open in Acrobat Reader)

Weight/1 part
1 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
