Technomet SL110

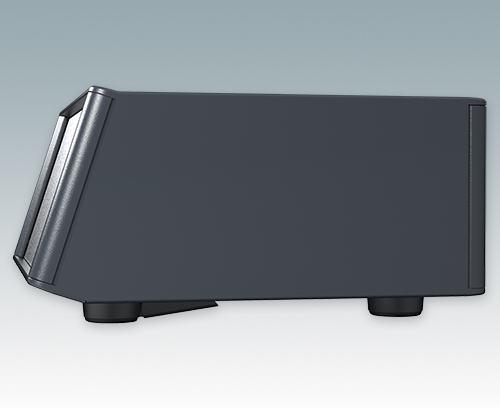

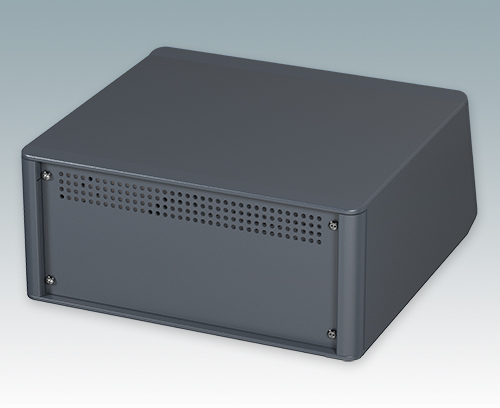

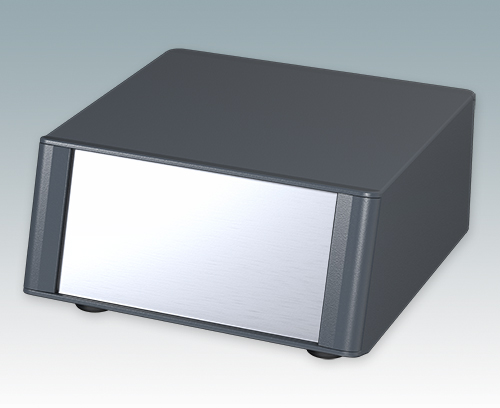

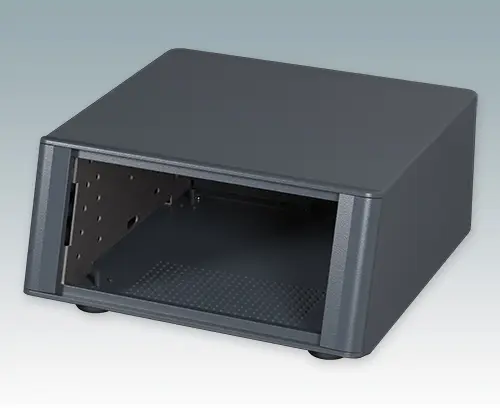

Modern and highly attractive instrument enclosure with sloping front bezel for desktop or portable electronics. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws and front panel screws, giving a very professional appearance. The pre-assembled internal chassis is supplied with four M3 PCB mounting pillars fitted in the base. The internal chassis can also be fitted with 5 slide-in PCBs using the accessory snap-in guide M6490020 (order 2 guides per PCB). The case is supplied with a rear panel and four ABS feet with tilt legs. Ventilation slots are provided in the base and rear panel. Order front panels separately.

Version

With sloping front

Supply

Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS feet (x4), ABS tilt legs (x2), M3 x 6 mm (x2), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for M6423124

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

Accessory

M5600010 PCB/Panel Fixing Screws, M3

M5600010

PCB/Panel Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customised with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

M5600010

PCB/Panel Fixing Screws, M3
product added to your basket

Zinc coated
6mm
M6400701 Front Panel 110

M6400701

Front Panel 110 Front panel for Technomet R110, SL110 and R110H.

Supply Front panel (fixings supplied with the cases).

M6400701

Front Panel 110
product added to your basket

Matt anodised
197x2x90.8mm
M6490020 PCB Guide, 140 mm

M6490020

PCB Guide, 140 mm Snap-in PCB guide for 0.5 mm to 2.0 mm thick PCBs. See drawing for punching details. Suitable for Technomet R107, R107H, R110, SL110 and R110H. For Technomet enclosures see ordering details below:

Technomet Model Guides required per PCB PCB positions in case
R107/R107H 2 3
R110/R110H 2 5
SL110 2 5

Supply 1 PCB guide

M6490020

PCB Guide, 140 mm
product added to your basket

Natural finish
139.7x7.5x3.5mm
Material

Colour
Anthracite RAL 7016
Standards
REACH compliant
RoHS compliant
Width
225 mm
Depth
230 mm
Height
100 mm
PCB length, base
208 mm
PCB width, base
179 mm

Catalogue Pages

Drawings

3D Models

3D PDF View (Open in Acrobat Reader)

Weight/1 part
1.5 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
UK
