M5635335 UNIMET-PLUS 6H

M5635335

UNIMET-PLUS 6H

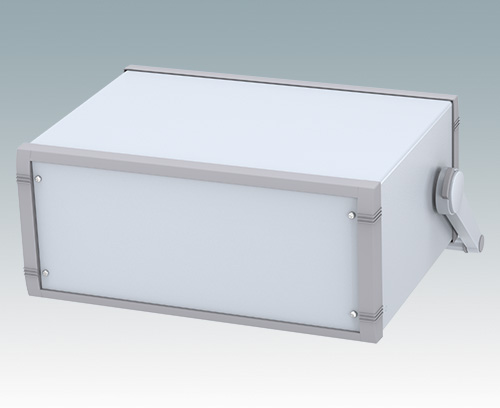

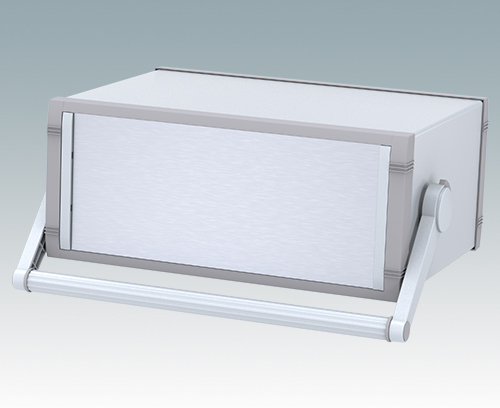

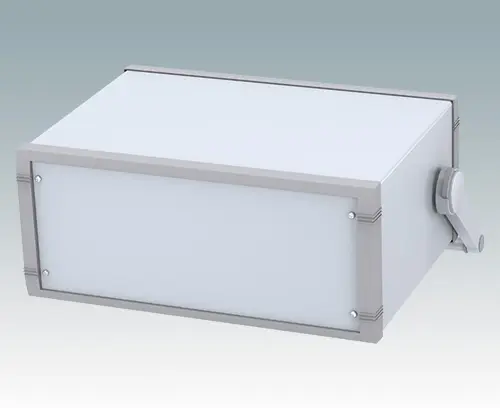

Advanced instrument enclosure with handle/bail arm for desktop and portable electronics. Stylish front and rear bezels are fitted to the fabricated case body. The handle can be indexed at 30° increments.Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version

With handle/bail arm

Supply

Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

  • Components/Accessories

Accessory

M5600001 PCB mounting kit

M5600001

PCB mounting kit Kit of ten M3 plastic PCB mounting pillars which can be positioned anywhere in the enclosure. Pillar height 10 mm. Fits to Ø3.2 mm hole in the case panel. Supplied with M3 fixing screws to secure to base panel.

If PCB or mounting plate fixing screws are required please see our screw kit M5600010.

Supply 10 Nylon PCB pillars and 10 M3 x 6 mm countersink fixing screws.

Close

M5600001

PCB mounting kit PA 6
Black RAL 9005
M5600010 PCB/Panel Fixing Screws, M3

M5600010

PCB/Panel Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customised with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

Close

M5600010

PCB/Panel Fixing Screws, M3 Steel
Zinc coated
6mm
M5600015 Case Feet Kit 1

M5600015

Case Feet Kit 1 Universal case feet for all types of plastic and metal enclosures with max. 4 mm wall thickness. Call us for a free sample.

Version Without tilt legs.

Supply Foot moulding (x4), TPE non-slip insert (x4), self-tapping screw (x4).

Close

M5600015

Case Feet Kit 1 ABS (UL 94 HB)
Light grey RAL 7035
34x17x16mm
M5600045 Case Feet Kit 2

M5600045

Case Feet Kit 2 Universal case feet with tilt legs for all types of plastic and metal enclosures with max. 4 mm wall thickness.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.

Version With tilt legs.

Supply Foot moulding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

Close

M5600045

Case Feet Kit 2 ABS (UL 94 HB)
Light grey RAL 7035
34x17x16mm
M5700202 PCB guide, 216mm

M5700202

PCB guide, 216mm Snap-in PCB guide for 1.6 mm PCBs. See drawing for punching details. Fits to Unimet-Plus 3/3H/4/4H/5/5H/6/6H.

Note: Unimet-Plus enclosures are already supplied with 4 guides as standard.

Supply 1 guide

Close

M5700202

PCB guide, 216mm PA 6/6 (UL 94 V-2)
White
M5700621 Front panel kit (6/6H)

M5700621

Front panel kit (6/6H) Front panel kit for Unimet 6/6H and Unimet-Plus 6/6H enclosures. Snap-in trims hide the assembly screws and act as a guide for a membrane keypad or product label.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5700621

Front panel kit (6/6H) Aluminium
Matt anodised
319.5x2x130.1mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
Light grey/window grey RAL 7035/7040
Standards
REACH compliant
RoHS compliant
Width
350 mm
Depth
263 mm
Height
150 mm
PCB length, base
254 mm
PCB width, base
304 mm

Catalogue Pages

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
2.5 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
